TVS Diode Unip 400W 25,6V DO41
Varenummer:
78-684
Varekode:
P4KE30A
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
V5235
TAIWAN SEMICONDUCTOR (TSC) Transient Voltage Suppressor Diodes 400W
Packing Style: Taped
Series: P4KE_

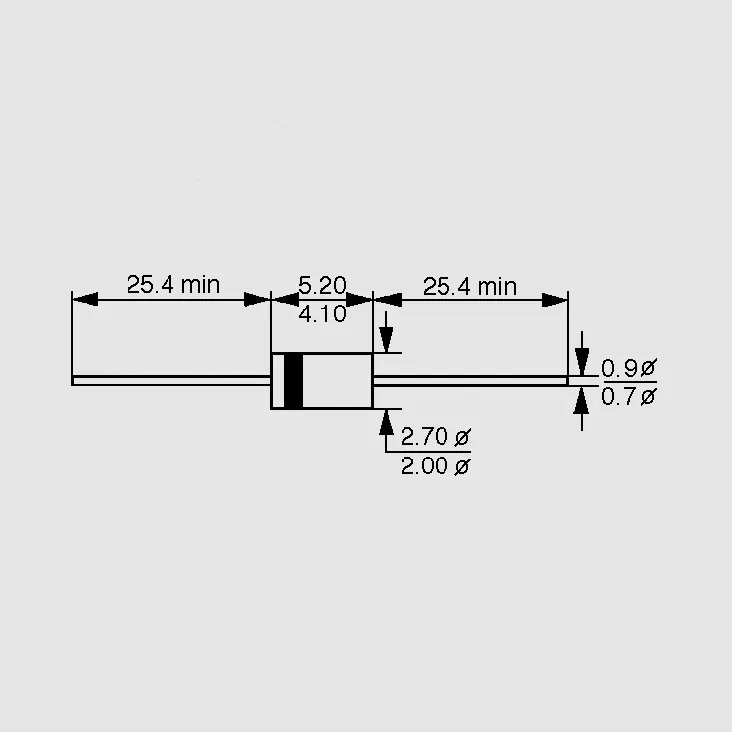

Case: DO41
TAIWAN SEMICONDUCTOR (TSC) Transient Voltage Suppressor Diodes 400W
Packing Style: Taped
Series: P4KE_
Case: DO41
| Technical Specifications |
| • The plastic conforms to UL94V-0 • Axial leads solderable per MIL-STD-202, Method 208 • Max. solderability 250°C/10s |
 |
| Part Nr. | IR | @URM | UBR | @IR | UCL | @Ipp |
| [µA] | [V] | [V] | [mA] | [V] | [A] | |
| P4KE6.8A | 1000 | 5,8 | 6,46 | 10 | 10,5 | 40 |
| P4KE15A | 5 | 12,8 | 14,3 | 1 | 21,2 | 20 |
| P4KE18A | 5 | 15,3 | 17,1 | 1 | 25,5 | 16,5 |
| P4KE27A | 5 | 23,1 | 25,7 | 1 | 37,5 | 11 |
| P4KE33A | 5 | 28,2 | 31,4 | 1 | 45,7 | 9,0 |
| P4KE36A | 5 | 30,8 | 34,2 | 1 | 49,9 | 8,4 |
| P4KE6.8CA | 1000 | 5,8 | 6,46 | 10 | 10,5 | 40 |
| P4KE15CA | 5 | 12,8 | 14,3 | 1 | 21,2 | 20 |
| P4KE18CA | 5 | 15,3 | 17,1 | 1 | 25,5 | 16,5 |
| P4KE27CA | 5 | 23,1 | 25,7 | 1 | 37,5 | 11 |
| P4KE30CA | 5 | 25,6 | 28,5 | 1 | 41,4 | 10 |
| P4KE33CA | 5 | 28,2 | 31,4 | 1 | 45,7 | 9,0 |
| P4KE36CA | 5 | 30,8 | 34,2 | 1 | 49,9 | 8,4 |
| P4KE39CA | 5 | 33,3 | 37,1 | 1 | 53,9 | 7,7 |
| P4KE440CA | 5 | 376 | 418 | 1 | 600 | 0,69 |
| IR = Max. Reverse Current, URM = Stand-Off Voltage, UBR = Min. Breakdown Voltage, UCL = Max. Clamping Voltage, Ipp = Reverse Peak Pulse Current | ||||||
| ||||||
| Terms of Delivery |
| Minimum order quantity: Please see price list column "MOQ". |
|
| Manufacturer |
 |
| http://www.taiwansemi.com |
|
Stregkode:
78684
Intern reference:
78684
Varekode:
P4KE30A
