2xFRED 600V 2x30A 100W SOT227B

Varenummer:

78-467

Varekode:

DSEI2X31-06C

Vægt:

40 g

Lagerstatus:

Ikke på lager

v/10

Kr. 163,12

v/25

Kr. 138,66

Denne kombination eksistere ikke.

Køb

Gruppe: V2937
IXYS Fast Recovery Epitaxial Diodes
Series: DSEI2X_, DSEP2X_

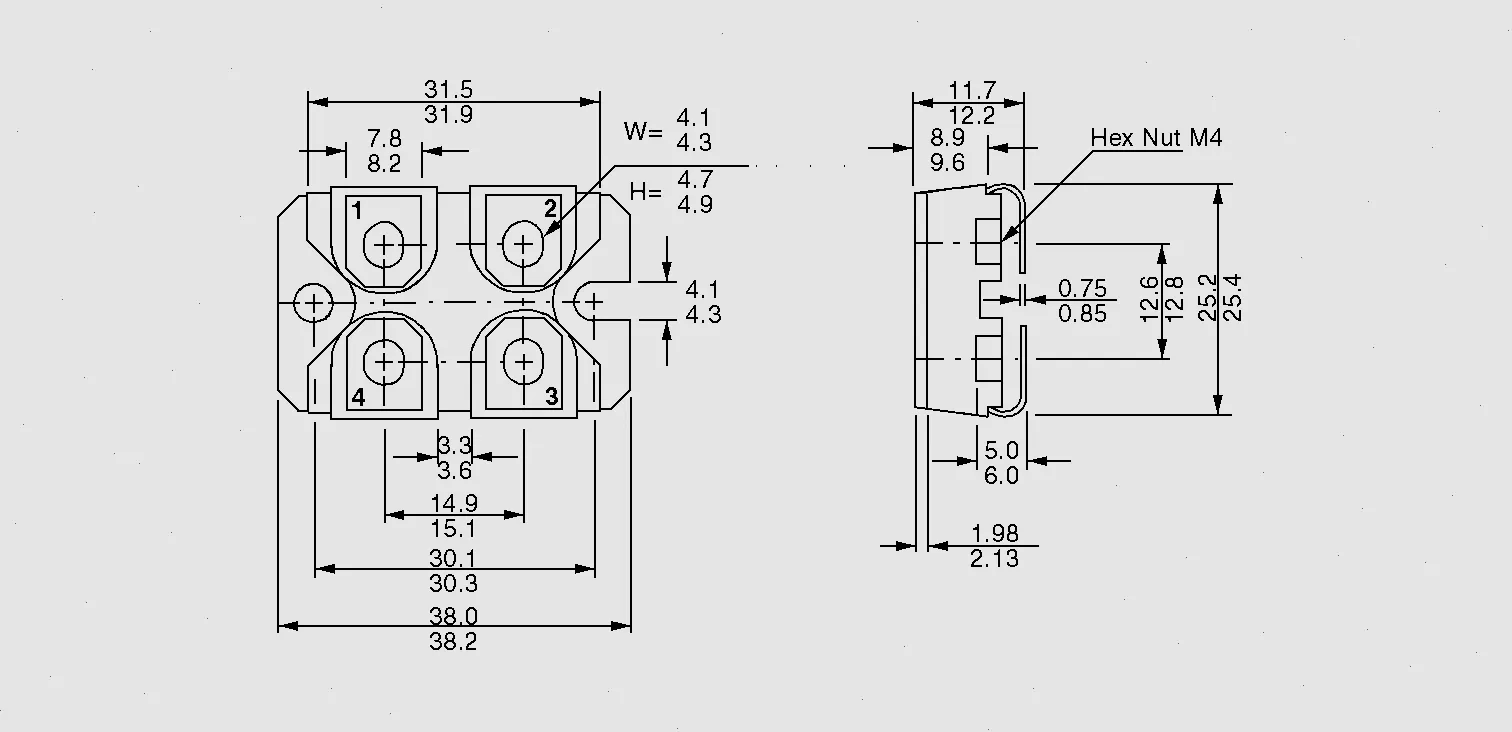

Case: SOT227B

Technical Specifications


Part Nr.	U_RRM	U_F	I_F(AV)	I_FSM	I_R	t_rr
	[V]	[V]	[A]	[A]	[µA]	[ns]
DSEI2X30-12B	1200	2,55	28	200	750	40
DSEI2X31-06C	600	1,6	30	300	100	35
DSEI2X31-12B	1200	2,55	28	200	750	40
DSEI2X61-02A	200	1,08	71	950	50	35
DSEI2X61-06C	600	1,8	60	550	200	35
DSEI2X61-12B	1200	2,5	52	450	2200	40
DSEI2X101-06A	600	1,25	96	1200	3000	35
DSEI2X101-12A	1200	1,87	91	900	3000	40
DSEI2X121-02A	200	1,1	123	1200	1000	35
DSEP2X61-06A	600	2,01	60	600	650	35
DSEP2X61-12A	1200	2,42	60	800	1000	40
DSEP2X91-03A	300	1,72	90	1000	1000	30
per Diode: U_RRM = Max. Peak Recurrent Reverse Voltage, U_F = Max. Forward Voltage, I_F(AV) = Max. Average Forward Current, I_FSM = Peak Forward Surge Current, I_R = Max. Reverse Current, t_rr = Typ. Reverse Recovery Time

Additional Products

We will also deliver on request all other articles from IXYS, forward orders possible.

Terms of Delivery

Minimum order quantity: please see price list column "MOQ".

Manufacturer

http://www.ixys.com
