SMD Schottky 45V 20A(2x10) D²Pak

Varenummer:
78-449
Varekode:
MBRS2045CT
Vægt:
0 g
Lagerstatus:
Ikke på lager

kr 0,00 0.0 DKK kr 0,00 Inklusiv moms

kr 0,00 Inklusiv moms

Anmod os om en pris

v/25
Kr. 9,03
v/100
Kr. 6,03
v/1000
Kr. 4,51

Denne kombination eksistere ikke.

https://elektroniklavpris.odoo.com/web/image/product.template/21989/image_1920?unique=a5cf409 https://elektroniklavpris.odoo.com/web/image/product.template/21989/image_1920?unique=a5cf409
Gruppe: V3575
TAIWAN SEMICONDUCTOR (TSC) SMD Schottky Diodes 8A to 30A Taped
Series: MBRS_CT, SRAS_

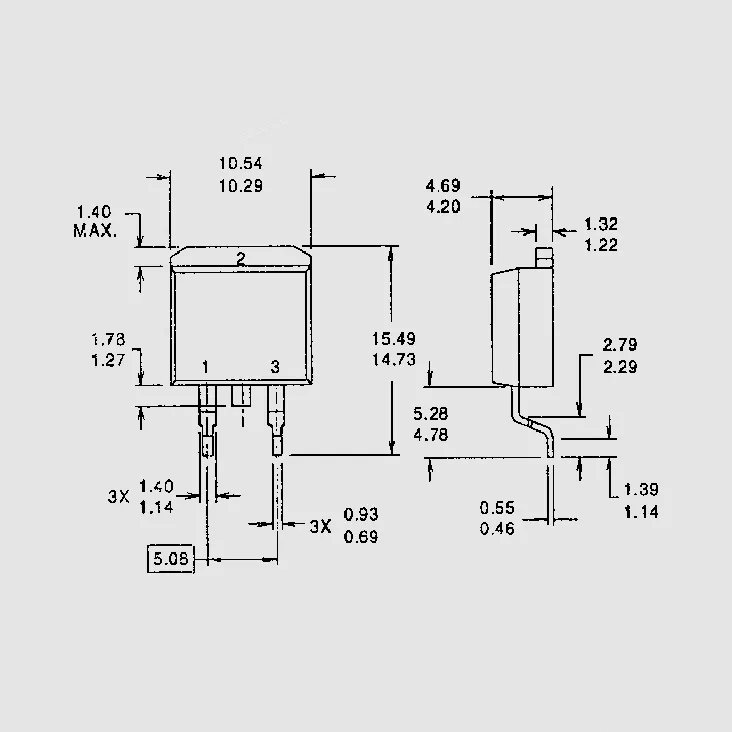

Case: D²Pak
Technical Specifications
• The plastic conforms to UL94V-0
• Leads solderable per MIL-STD-750, Meth. 2026 resp. MIL-STD-202, Meth. 208
• Max. solderability 260°C/10s

Part Nr.
URRM
UF
IF(AV)
IR
TJ
 [V]
[V]
[A]
[mA]
[°C]
SRAS86060
0,70
8,0
0,1
-65...+150
SRAS8100100
0,95
8,0
0,1
-65...+150
MBRS1045CT45
0,80
5,0
0,1
-65...+150
MBRS10100CT100
0,95
5,0
0,1
-65...+150
MBRS10H100CT100
0,95
5,0
0,005
-65...+175
MBRS1545CT45
0,84
7,5
0,1
-65...+150
MBRS15H45CT45
0,80
7,5
0,03
-65...+175
MBRS1560CT60
0,75
7,5
1,0
-65...+150
MBRS15100CT100
0,92
7,5
0,1
-65...+150
MBRS2045CT45
0,84
10
0,1
-65...+150
MBRS2060CT60
0,95
10
0,15
-65...+150
SRAS206060
0,70
20
0,5
-65...+150
MBRS20H100CT100
0,95
10
0,005
-65...+175
SRAS20100100
0,92
20
0,1
-65...+150
MBRS2545CT45
0,82
15
0,2
-65...+150
MBRS25H45CT45
0,90
12,5
0,2
-65...+175
MBRS2560CT60
0,75
15
1,0
-65...+150
MBRS30H45CT45
0,90
15
0,2
-65...+175
per Diode: URRM = Max. Peak Recurrent Reverse Voltage, UF = Max. Forward Voltage, IF(AV) = Max. Average Forward Current, IR = Max. Reverse Current, TJ = Operating Temperature Range
Terms of Delivery
Minimum order quantity: please see price list column "MOQ".
Form of delivery: orders of less than 800 pieces: 25 pieces on tape segment without leader tape and reel; orders of 800 pieces: delivery on reel if requested.
Articles in bold print in stock, other articles available on request.
Manufacturer

http://www.taiwansemi.com
