SMD Schottky 60V 5A SMC
Varenummer:
78-445
Varekode:
SK56C
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
V3479
TAIWAN SEMICONDUCTOR (TSC) SMD Schottky Diodes up to 8A
Series: SK_

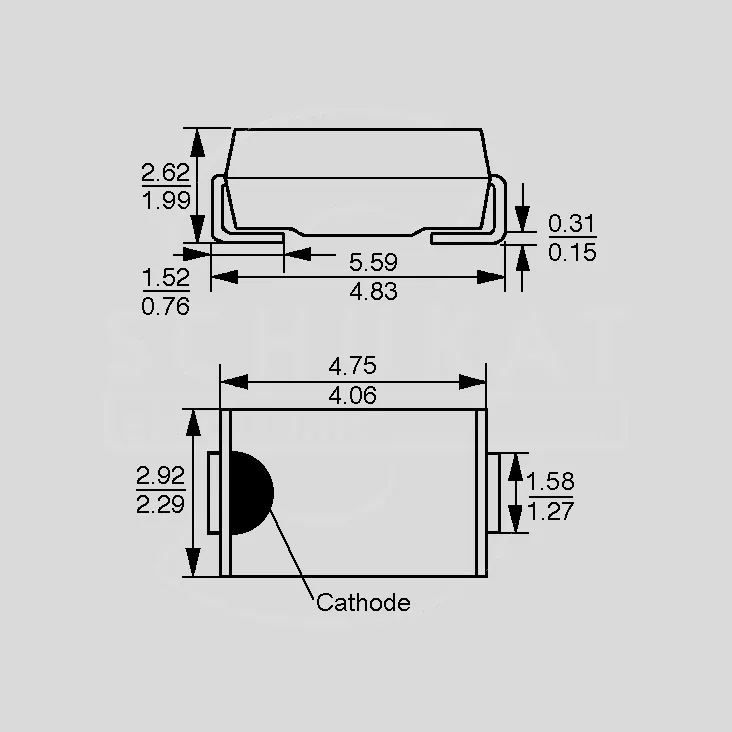

Case: DO214AC/SMA, DO214AA/SMB, DO214AB/SMC
TAIWAN SEMICONDUCTOR (TSC) SMD Schottky Diodes up to 8A
Series: SK_
Case: DO214AC/SMA, DO214AA/SMB, DO214AB/SMC
| Technical Specifications |
| • The plastic conforms to UL94V-0 • Max. solderability 260°C/10s |
 |
| Part Nr. | URRM | UF | IF(AV) | IR | TJ |
| [V] | [V] | [A] | [mA] | [°C] | |
| SK24A | 40 | 0,50 | 2,0 | 0,5 | -65...+125 |
| SK26A | 60 | 0,70 | 2,0 | 0,5 | -65...+150 |
| SK34A | 40 | 0,55 | 3,0 | 0,5 | -65...+150 |
| SK36A | 60 | 0,75 | 3,0 | 0,5 | -65...+150 |
| SK310A | 100 | 0,85 | 3,0 | 0,1 | -65...+150 |
| SK320A | 200 | 0,95 | 3,0 | 0,1 | -65...+150 |
| SK320B | 200 | 0,95 | 3,0 | 0,1 | -55...+150 |
| SK54C | 40 | 0,55 | 5,0 | 0,5 | -55...+125 |
| SK56C | 60 | 0,75 | 5,0 | 0,5 | -55...+150 |
| SK84C | 40 | 0,55 | 8,0 | 0,5 | -55...+125 |
| SK86C | 60 | 0,75 | 8,0 | 0,5 | -55...+150 |
| URRM = Max. Peak Recurrent Reverse Voltage, UF = Max. Forward Voltage, IF(AV) = Max. Average Forward Current, IR = Max. Reverse Current, TJ = Operating Temperature Range | |||||
| |||||
| Terms of Delivery |

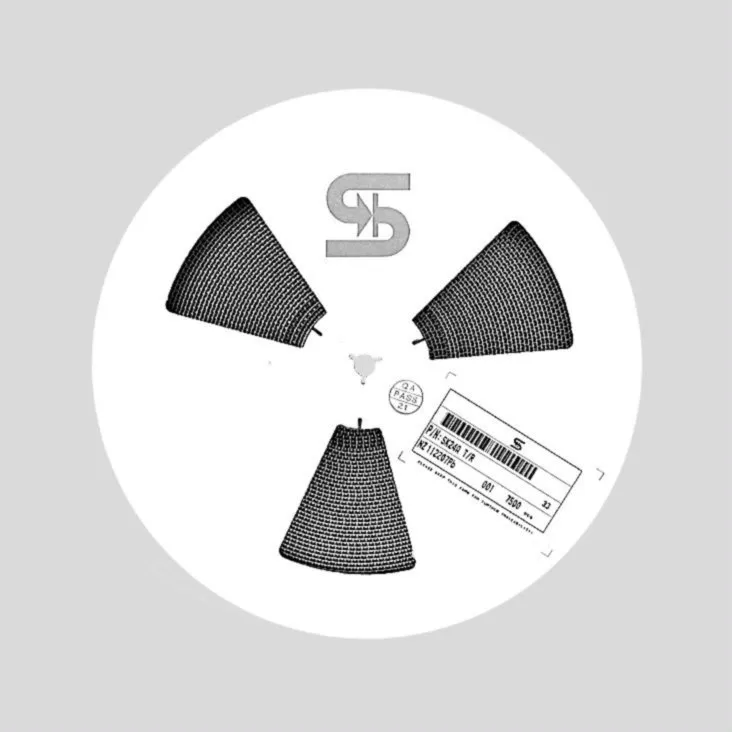

| Minimum order quantity: please see price list column "MOQ". Form of delivery: orders of less than 3000 resp. 7500 pieces: 100 pieces on tape segment without leader tape and reel; orders of 3000 resp. 7500 pieces: delivery on reel if requested. |
|
| Manufacturer |
 |
| http://www.taiwansemi.com |
|
Stregkode:
78445
Intern reference:
78445
Varekode:
SK56C
