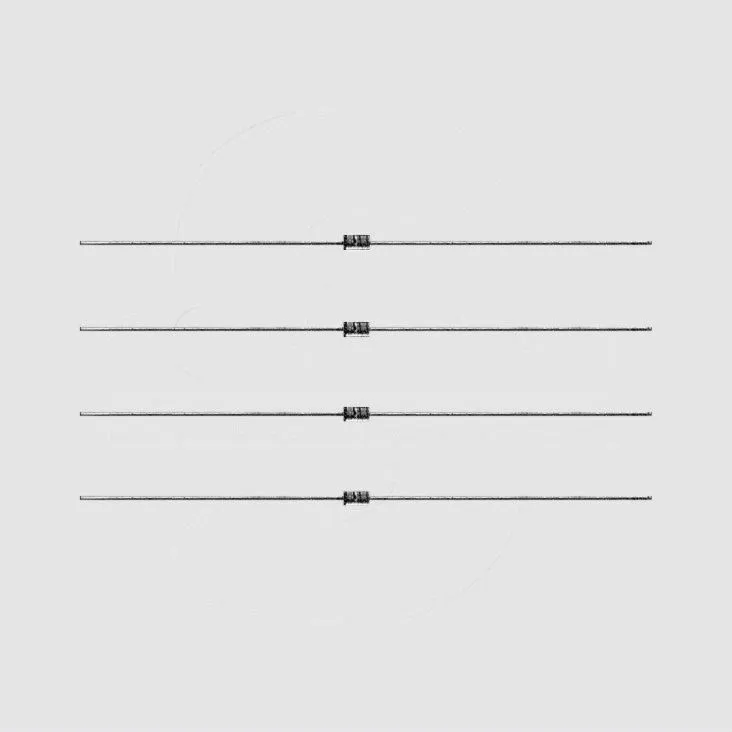

Schottky 30V 0,2A DO35

Varenummer:

78-384

Varekode:

BAT42

Vægt:

0 g

Lagerstatus:

Ikke på lager

v/10

Kr. 2,16

v/25

Kr. 1,51

v/100

Kr. 1,07

v/1000

Kr. 0,65

Denne kombination eksistere ikke.

Køb

Gruppe: V3335
Schottky Diodes up to 0,5A Taped
Series: BAT_, SD_

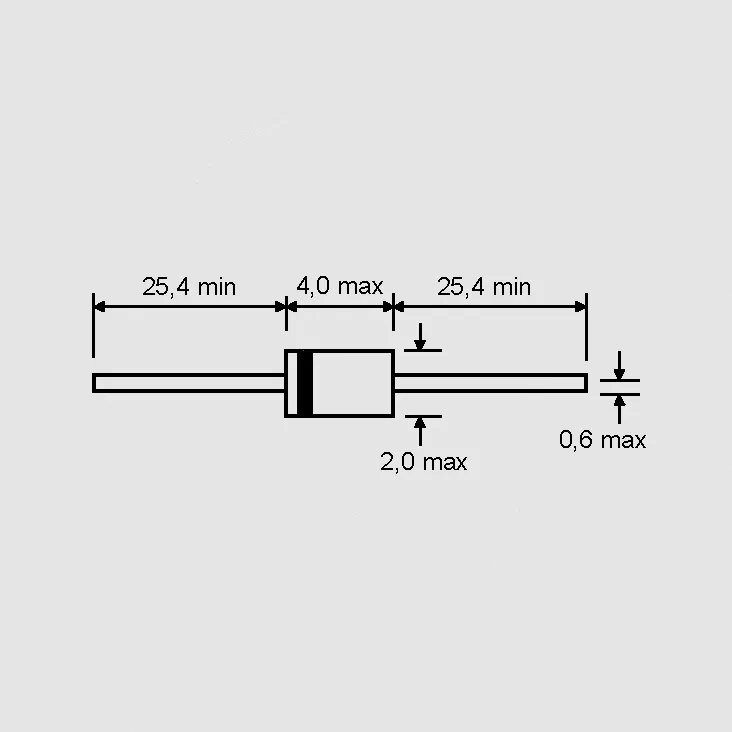

Case: DO35

Technical Specifications


Part Nr.	U_RRM	P_tot	I_R/U_R	C_tot	t_rr
	[V]	[mW]	[µA/V]	[pF]	[ns]
SD101B	50	400	0,2/40	2,1	1
SD103B	30	400	5/20	50	10
BAT41	100	200	0,1/50	2	-
BAT42	30	200	0,5/25	7	5
BAT43	30	200	0,5/25	7	5
BAT46	100	150	2/50	6	-
BAT48	40	330	50/40	20	10
BAT85	30	-	2/25	10	5
U_RRM = Max. Peak Recurrent Reverse Voltage, P_tot = Power Dissipation, I_R = Max. Reverse Current, U_R = Max. Reverse Voltage, C_tot = Capacitance, t_rr = Max. Reverse Recovery Time

Terms of Delivery

Minimum order quantity: please see price list column "MOQ".
Articles in bold print in stock, other articles available on request.

Manufacturer

Various
If you have preference for a particular manufacturer, please inquire before placing your order.

Stregkode: 544-4758
Intern reference: 78384
Varekode: BAT42
