Super Fast Diode 400V 6A DO201AD
Varenummer:
78-377
Varekode:
SF66G
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
V2735
TAIWAN SEMICONDUCTOR (TSC) Super Fast Rectifier Diodes 6A Glass Passivated Taped
Series: SF6_G

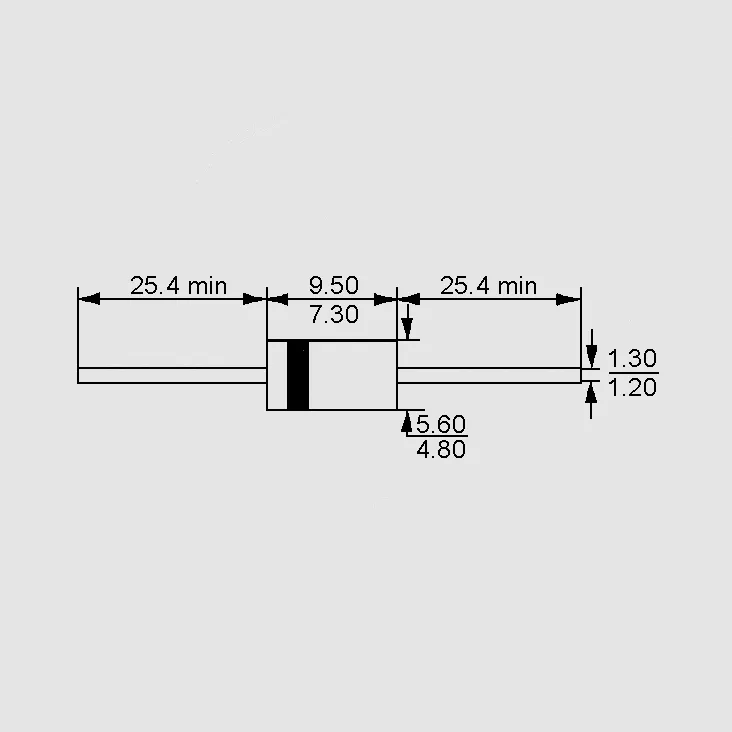

Case: DO201AD
TAIWAN SEMICONDUCTOR (TSC) Super Fast Rectifier Diodes 6A Glass Passivated Taped
Series: SF6_G
Case: DO201AD
| Technical Specifications |
| • The plastic conforms to UL94V-0 • Axial leads solderable per MIL-STD-202, Meth. 208 • Max. solderability 250°C/10s |
 |
| Part Nr. | URRM | UF | IF(AV) | IFSM | IR | trr |
| [V] | [V] | [A] | [A] | [µA] | [ns] | |
| SF64G | 200 | 0,975 | 6,0 | 150 | 5,0 | 35 |
| SF66G | 400 | 1,3 | 6,0 | 150 | 5,0 | 35 |
| SF68G | 600 | 1,7 | 6,0 | 150 | 5,0 | 35 |
| URRM = Max. Peak Recurrent Reverse Voltage, UF = Max. Forward Voltage, IF(AV) = Max. Average Forward Current, IFSM = Peak Forward Surge Current, IR = Max. Reverse Current, trr = Max. Reverse Recovery Time | ||||||
| ||||||
| Terms of Delivery |
| Minimum order quantity: Please see price list column "MOQ". |
|
| Manufacturer |
 |
| http://www.taiwansemi.com |
|
