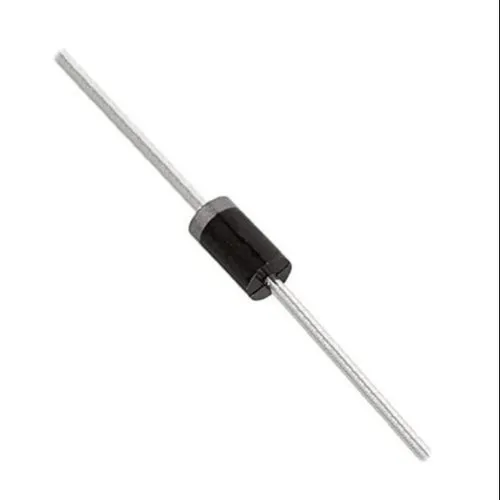

Super Fast Diode 200V 3A DO201AD

Varenummer:
78-365
Varekode:
SF34
Vægt:
0 g
Lagerstatus:
Lager: 3 stk.

kr 5,34 5.34 DKK kr 5,34 Inklusiv moms

kr 5,34 Inklusiv moms

Anmod os om en pris

v/10
Kr. 4,17
v/25
Kr. 3,34
v/100
Kr. 2,50
v/1000
Kr. 1,68

Denne kombination eksistere ikke.

https://elektroniklavpris.odoo.com/web/image/product.template/21905/image_1920?unique=8b93c9a https://elektroniklavpris.odoo.com/web/image/product.template/21905/image_1920?unique=8b93c9a
Gruppe: V2637
TAIWAN SEMICONDUCTOR (TSC) Super Fast Rectifier Diodes 3A Taped
Series: SF3_

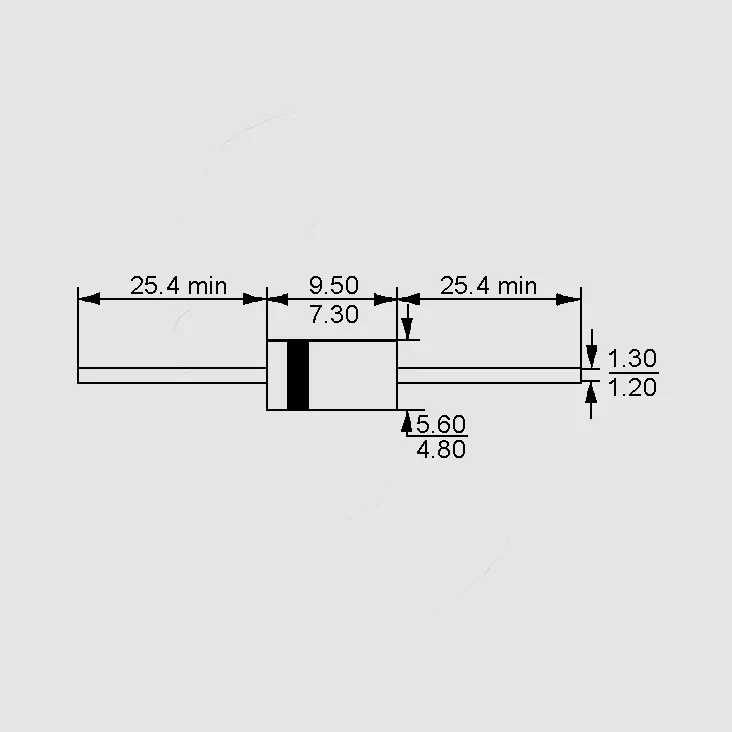

Case: DO201AD
Technical Specifications
• The plastic conforms to UL94V-0
• Axial leads solderable per MIL-STD-202, Meth. 208
• Max. solderability 250°C/10s

Part Nr.
URRM
UF
IF(AV)
IFSM
IR
trr
 [V]
[V]
[A]
[A]
[µA]
[ns]
SF34200
0,95
3,0
125
5,0
35
SF38600
1,7
3,0
125
5,0
35
URRM = Max. Peak Recurrent Reverse Voltage, UF = Max. Forward Voltage, IF(AV) = Max. Average Forward Current, IFSM = Peak Forward Surge Current, IR = Max. Reverse Current, trr = Max. Reverse Recovery Time
Terms of Delivery
Minimum order quantity: please price list column "MOQ".
Manufacturer

http://www.taiwansemi.com
