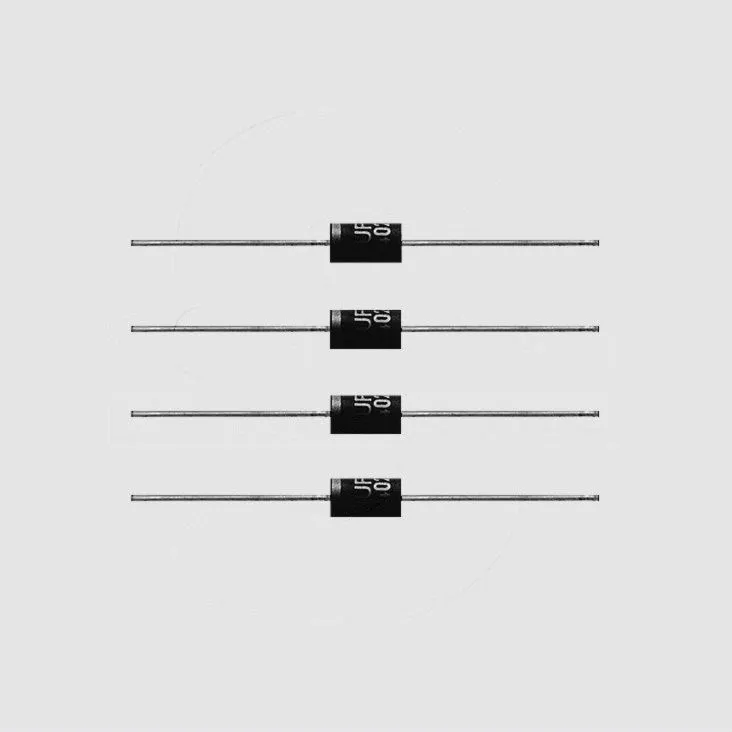

Ultra Fast Diode 400V 3A DO201AD
Varenummer:
78-359
Varekode:
FUF5404
Vægt:
0 g
Lagerstatus:
Lager: 11 stk.
Gruppe:
V2635
FAGOR ELECTRONICA (FAG) Ultra Fast Rectifier Diodes 3A Glass Passivated Taped
Series: FUF54_

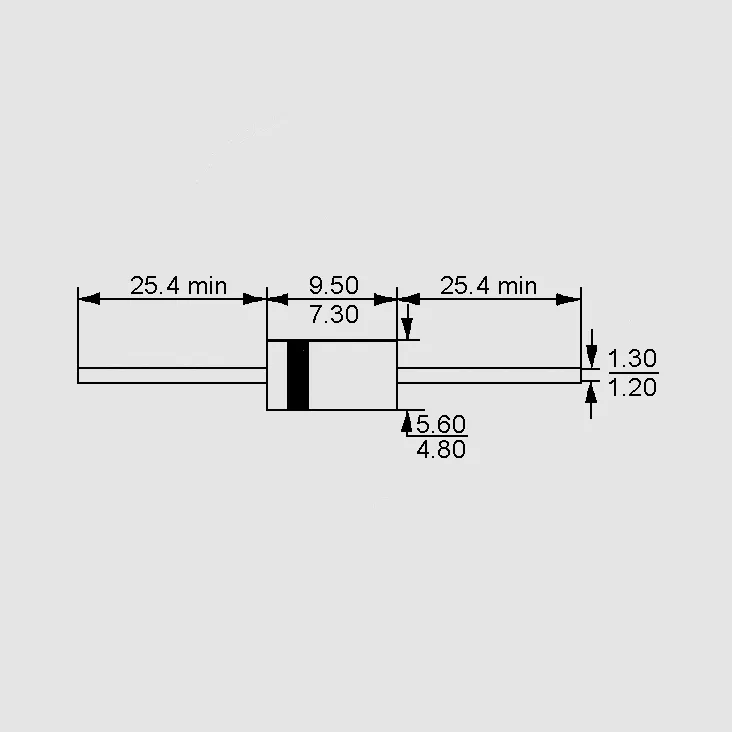

Case: DO201AD
FAGOR ELECTRONICA (FAG) Ultra Fast Rectifier Diodes 3A Glass Passivated Taped
Series: FUF54_
Case: DO201AD
| Technical Specifications |
| • The plastic conforms to UL94V-0 • Max. solderability 350°C/3,5s |
 |
| Part Nr. | URRM | UF | IF(AV) | IFSM | IR | trr |
| [V] | [V] | [A] | [A] | [µA] | [ns] | |
| FUF5402 | 200 | 1,3 | 3,0 | 150 | 5,0 | 50 |
| FUF5404 | 400 | 1,3 | 3,0 | 150 | 5,0 | 50 |
| FUF5407 | 800 | 1,7 | 3,0 | 150 | 5,0 | 75 |
| FUF5408 | 1000 | 1,7 | 3,0 | 150 | 5,0 | 75 |
| URRM = Max. Peak Recurrent Reverse Voltage, UF = Max. Forward Voltage, IF(AV) = Max. Average Forward Current, IFSM = Peak Forward Surge Current, IR = Max. Reverse Current, trr = Max. Reverse Recovery Time | ||||||
| ||||||
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
 |
| http://www.fagorelectronica.com |
|
Stregkode:
78359
Intern reference:
78359
Varekode:
FUF5404
