Super Fast Diode 200V 2A DO15

Varenummer:

78-349

Varekode:

SF24

Vægt:

0 g

Lagerstatus:

Ikke på lager

v/10

Kr. 3,60

v/25

Kr. 2,70

v/100

Kr. 1,80

v/1000

Kr. 0,90

Denne kombination eksistere ikke.

Køb

Gruppe: V2632

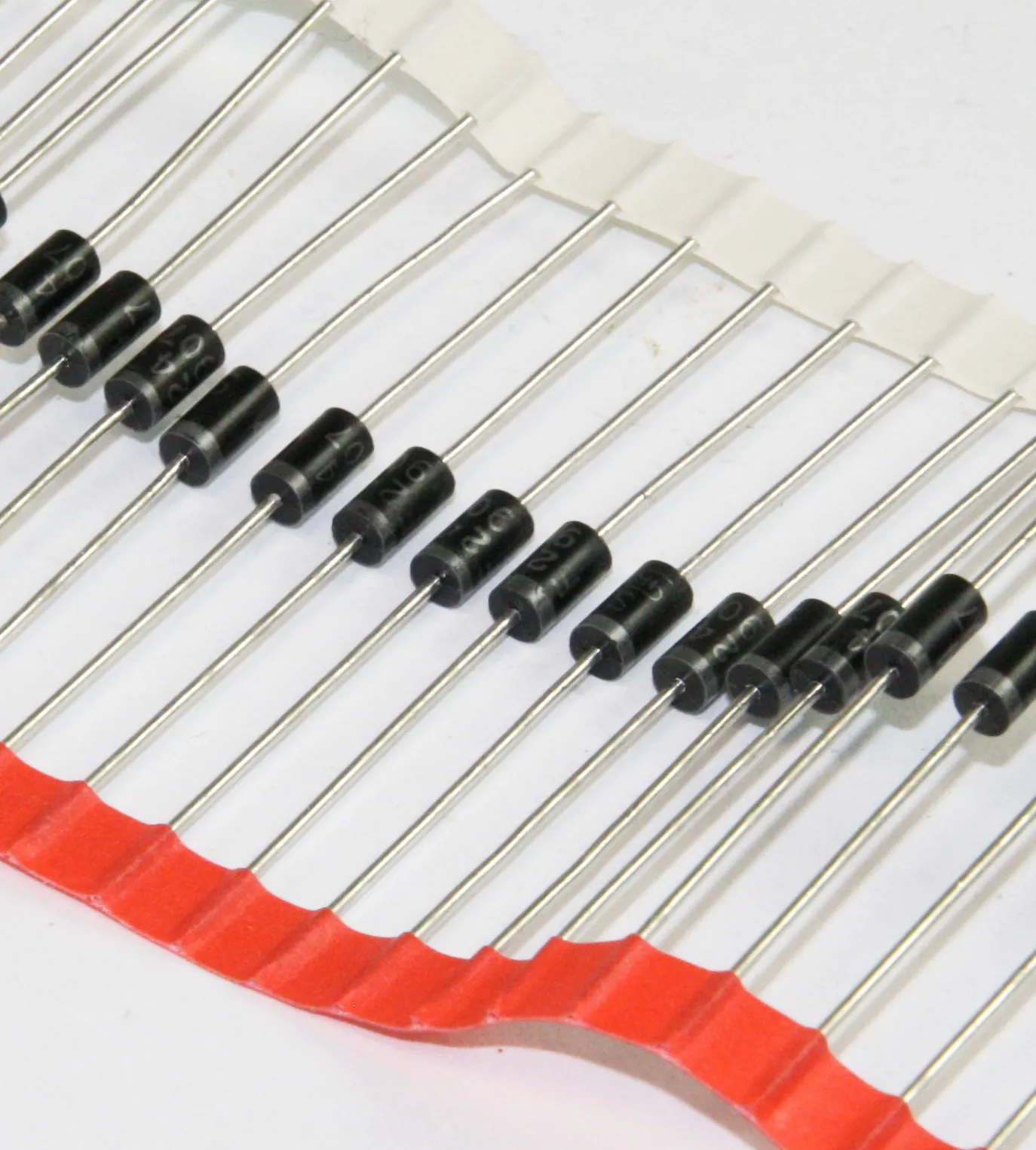

TAIWAN SEMICONDUCTOR (TSC) Super Fast Rectifier Diodes 2A Taped
Series: SF2_

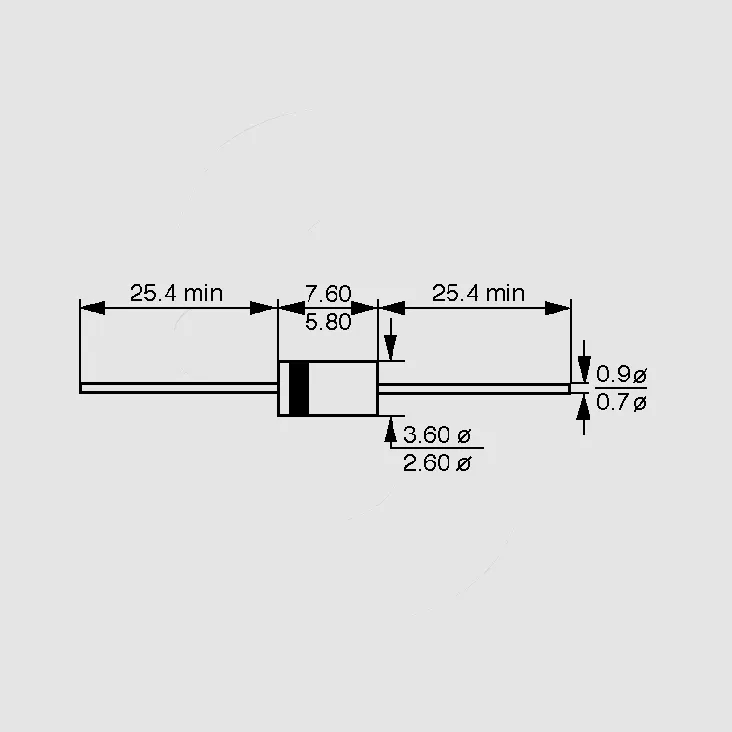

Case: DO15

Technical Specifications

• The plastic conforms to UL94V-0
• Axial leads solderable per MIL-STD-202, Meth. 208
• Max. solderability 250°C/10s


Part Nr.	U_RRM	U_F	I_F(AV)	I_FSM	I_R	t_rr
	[V]	[V]	[A]	[A]	[µA]	[ns]
SF24	200	0,95	2,0	50	5,0	35
SF28	600	1,7	2,0	50	5,0	35
U_RRM = Max. Peak Recurrent Reverse Voltage, U_F = Max. Forward Voltage, I_F(AV) = Max. Average Forward Current, I_FSM = Peak Forward Surge Current, I_R = Max. Reverse Current, t_rr = Max. Reverse Recovery Time

Terms of Delivery

Minimum order quantity: please see price list column "MOQ".

Manufacturer

http://www.taiwansemi.com

Stregkode: 78349
Intern reference: 78349
Varekode: SF24
