Super Fast Diode 400V 1A DO41
Varenummer:
78-344
Varekode:
SF16G
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
V2538
TAIWAN SEMICONDUCTOR (TSC) Super Fast Rectifier Diodes 1A Glass Passivated Taped
Series: SF1_G

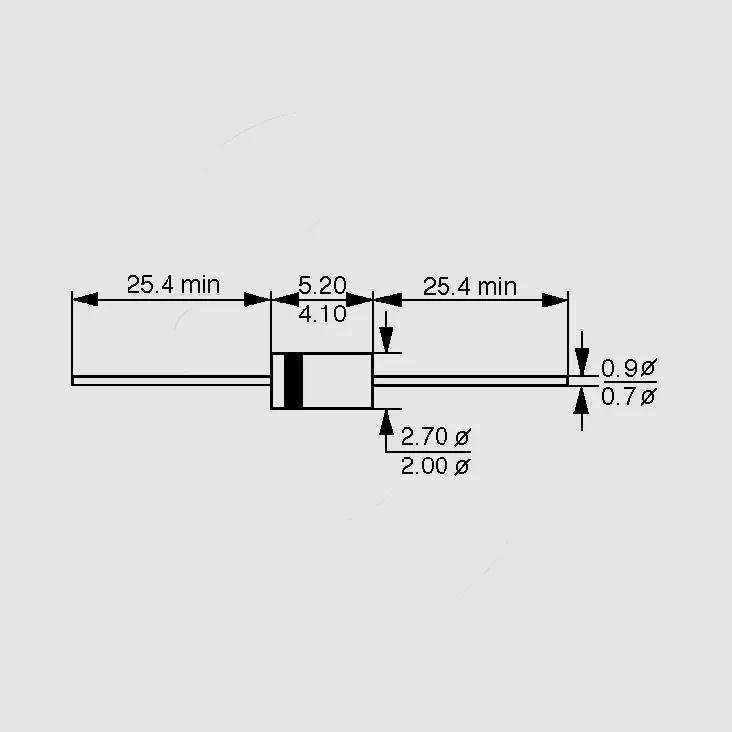

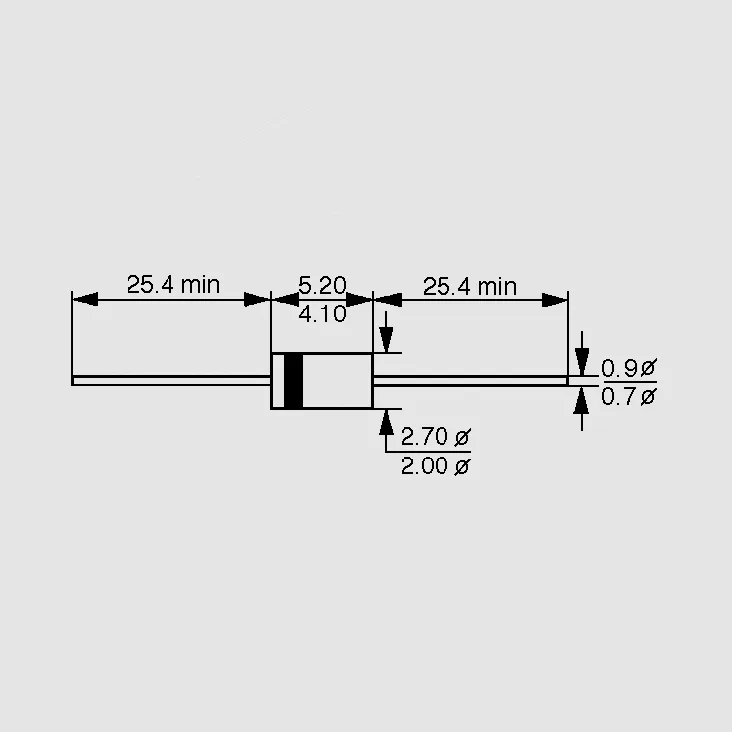

Case: DO41
TAIWAN SEMICONDUCTOR (TSC) Super Fast Rectifier Diodes 1A Glass Passivated Taped
Series: SF1_G
Case: DO41
| Technical Specifications |
| • The plastic conforms to UL94V-0 • Axial leads solderable per MIL_STD-202, Meth. 208 • Max. solderability 250°C/10s |
 |
| Part Nr. | URRM | UF | IF(AV) | IFSM | IR | trr |
| [V] | [V] | [A] | [A] | [µA] | [ns] | |
| SF14G | 200 | 0,95 | 1,0 | 30 | 5,0 | 35 |
| SF16G | 400 | 1,3 | 1,0 | 30 | 5,0 | 35 |
| SF18G | 600 | 1,7 | 1,0 | 30 | 5,0 | 35 |
| URRM = Max. Peak Recurrent Reverse Voltage, UF = Max. Forward Voltage, IF(AV) = Max. Average Forward Current, IFSM = Peak Forward Surge Current, IR = Max. Reverse Current, trr = Max. Reverse Recovery Time | ||||||
| ||||||
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
 |
| http://www.taiwansemi.com |
|
Stregkode:
78344
Intern reference:
78344
Varekode:
SF16G
