SMD Si-Rectifier 1000V 3A SMC
Varenummer:
78-308
Varekode:
S3M
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
V1778
TAIWAN SEMICONDUCTOR (TSC) SMD Si-Rectifier Diodes 3A Glass Passivated
Series: S3_
Case: DO214AB/SMC
TAIWAN SEMICONDUCTOR (TSC) SMD Si-Rectifier Diodes 3A Glass Passivated
Series: S3_
Case: DO214AB/SMC
| Technical Specifications |
| • The plastic conforms to UL94V-0 • Max. solderability 250°C/10s |
 |
| Part Nr. | URRM | UF | IF(AV) | IR | Tj |
| [V] | [V] | [A] | [µA] | [°C] | |
| S3D | 200 | 1,15 | 3,0 | 10 | -55...+150 |
| S3J | 600 | 1,15 | 3,0 | 10 | -55...+150 |
| S3M | 1000 | 1,15 | 3,0 | 10 | -55...+150 |
| URRM = Max. Peak Recurrent Reverse Voltage, UF = Max. Forward Voltage, IF(AV) = Max. Average Forward Current, IR = Max. Reverse Current, Tj = Operating Temperature Range | |||||
| |||||
| Terms of Delivery |

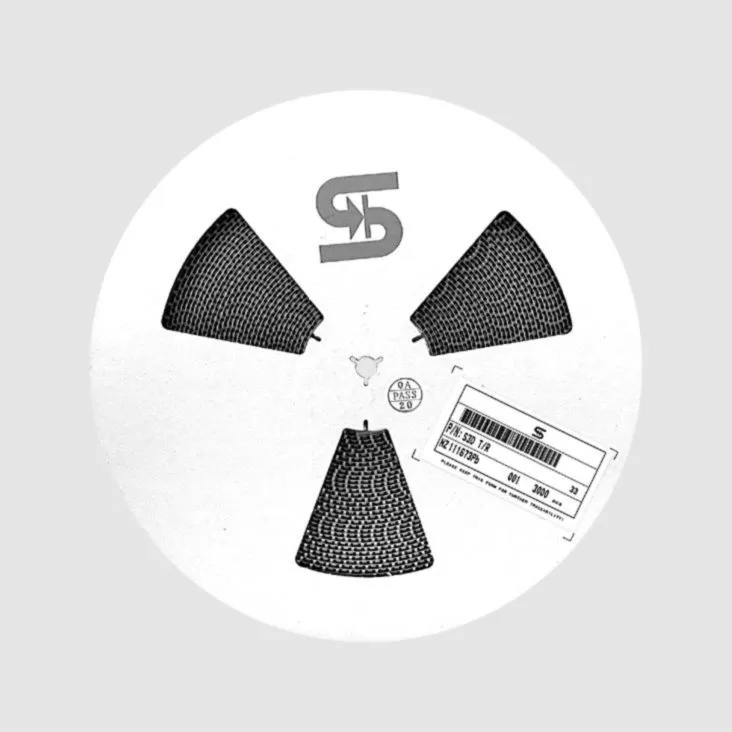

| Minimum order quantity: please see price list column "MOQ". Form of delivery: orders of less than 3000 pieces: 100 pieces on tape segment without leader tape and reel; orders of 3000 pieces: delivery on reel if requested. |
|
| Manufacturer |
 |
| http://www.taiwansemi.com |
|
