SMD Si-Rectifier 200V 3A SMC
Varenummer:
78-303
Varekode:
FS3D
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
V1777
FAGOR ELECTRONICA (FAG) SMD Si-Rectifier Diodes 3A Glass Passivated
Series: FS3_
Case: DO214AB/SMC
FAGOR ELECTRONICA (FAG) SMD Si-Rectifier Diodes 3A Glass Passivated
Series: FS3_
Case: DO214AB/SMC
| Technical Specifications |
| • The plastic conforms to UL94V-0 • Solder-plated terminals, solderable per IEC 68-2-20 • Max. solderability 260°C/10s |
 |
| Part Nr. | URRM | UF | IF(AV) | IR | Tj |
| [V] | [V] | [A] | [µA] | [°C] | |
| FS3D | 200 | 1,15 | 3,0 | 10 | -55...+150 |
| FS3J | 600 | 1,15 | 3,0 | 10 | -55...+150 |
| FS3M | 1000 | 1,15 | 3,0 | 10 | -55...+150 |
| URRM = Max. Peak Recurrent Reverse Voltage, UF = Max. Forward Voltage, IF(AV) = Max. Average Forward Current, IR = Max. Reverse Current, Tj = Operating Temperature Range | |||||
| |||||
| Terms of Delivery |

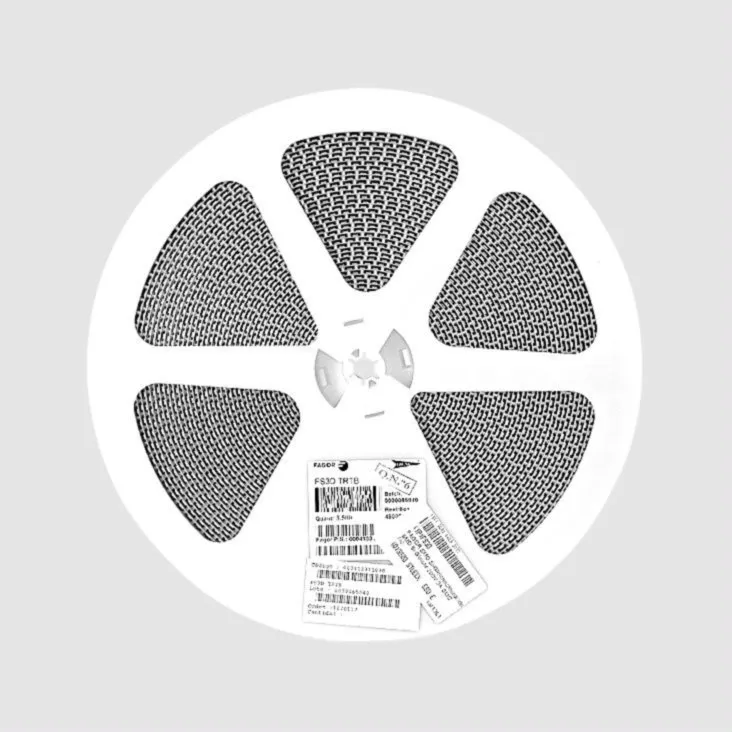

| Minimum order quantity: please see price list column "MOQ". Form of delivery: orders of less than 3500 pieces: 100 pieces on tape segment without leader tape and reel; orders of 3500 pieces: delivery on reel if requested. Articles in bold print in stock, other articles available on request. |
|
| Manufacturer |
 |
| http://www.fagorelectronica.com |
|
Stregkode:
78303
Intern reference:
78303
Varekode:
FS3D
