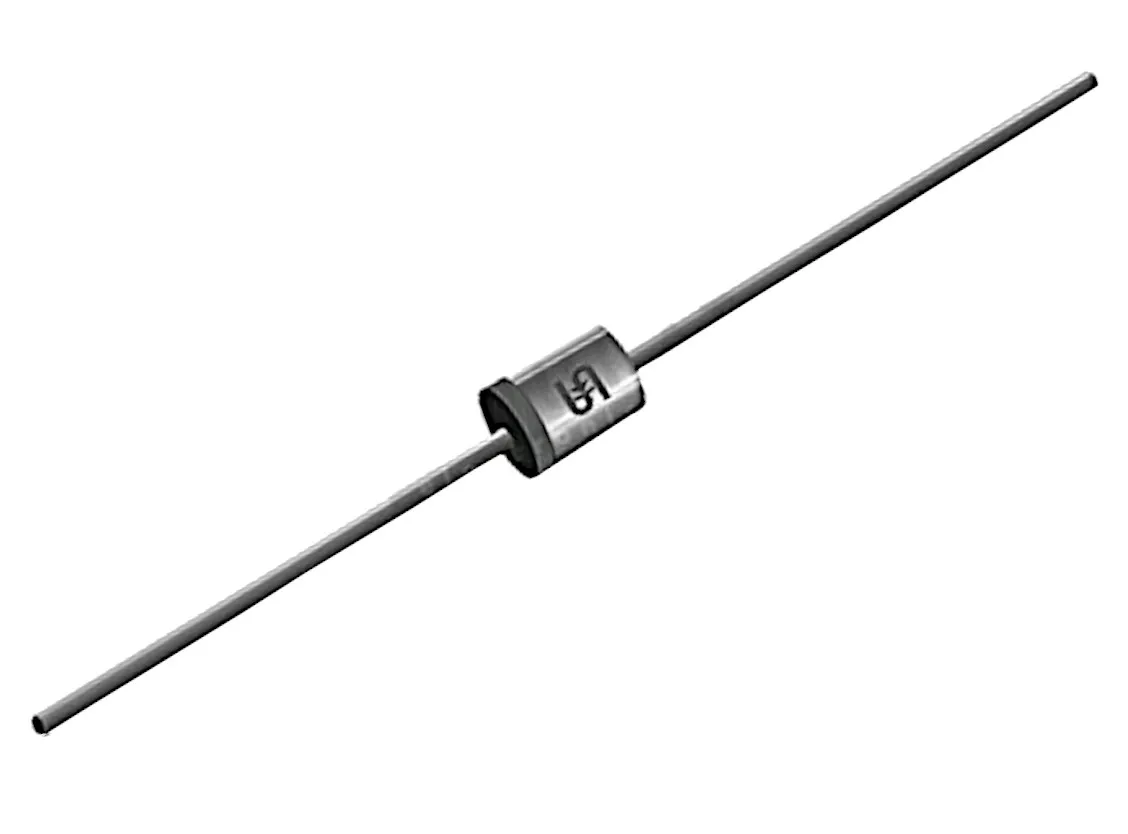

Si-Rectifier 400V 3A DO201AD
Varenummer:
78-300
Varekode:
1N5404G
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
V1734
TAIWAN SEMICONDUCTOR (TSC) Si-Rectifier Diodes 3A Glass Passivated Taped
Series: 1N54_G
Case: DO201AD
TAIWAN SEMICONDUCTOR (TSC) Si-Rectifier Diodes 3A Glass Passivated Taped
Series: 1N54_G
Case: DO201AD
| Technical Specifications |
| • The plastic conforms to UL94V-0 • Axial leads solderable per MIL-STD-202, Meth. 208 • Max. solderability 250°C/10s |
 |
| Part Nr. | URRM | UF | IF(AV) | IR | Tj |
| [V] | [V] | [A] | [µA] | [°C] | |
| 1N5402G | 200 | 1,0 | 3,0 | 5,0 | -65...+150 |
| 1N5404G | 400 | 1,0 | 3,0 | 5,0 | -65...+150 |
| 1N5408G | 1000 | 1,0 | 3,0 | 5,0 | -65...+150 |
| URRM = Max. Peak Recurrent Reverse Voltage, UF = Max. Forward Voltage, IF(AV) = Max. Average Forward Current, IR = Max. Reverse Current, Tj = Operating Temperature Range | |||||
| |||||
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
 |
| http://www.taiwansemi.com |
|
Stregkode:
78300
Intern reference:
78300
Varekode:
1N5404G
