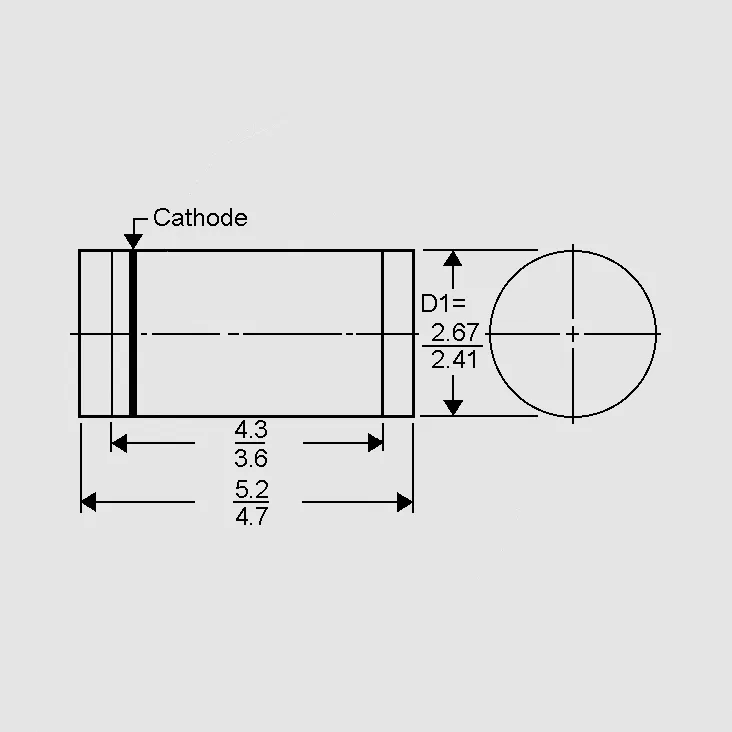

SMD Si-Rectifier 600V 1A DO213AB
Varenummer:
78-285
Varekode:
SM4005
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
V1774
SMD Si-Rectifier Diodes 1A
Series: BYM10_, FS1_ SM400_

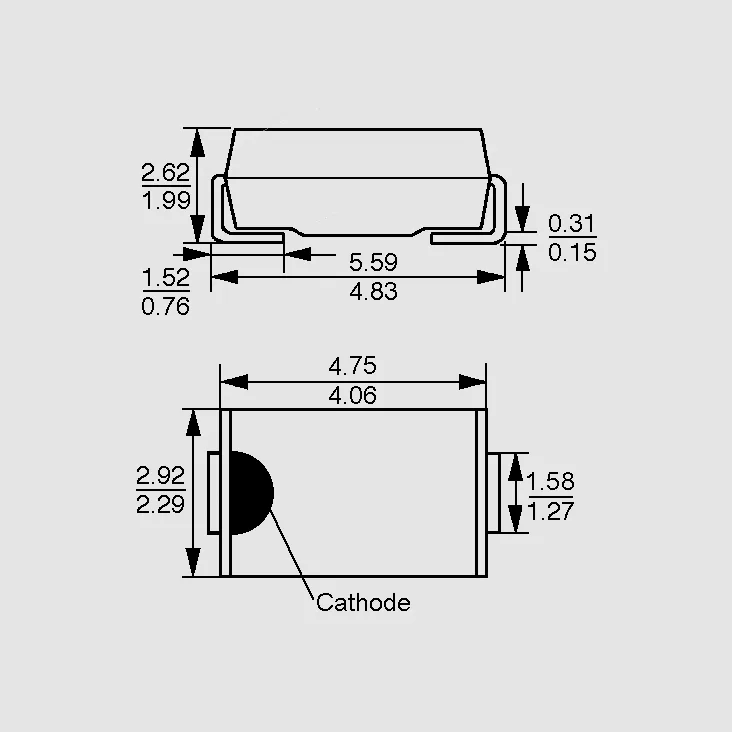

Case: DO213AB, DO214AC/SMA
SMD Si-Rectifier Diodes 1A
Series: BYM10_, FS1_ SM400_
Case: DO213AB, DO214AC/SMA
| Technical Specifications |
| • The plastic conforms to UL94V-0 • Max. solderability 250°C/10s |
 |
| Part Nr. | URRM | UF | IF(AV) | IR | Tj |
| [V] | [V] | [A] | [µA] | [°C] | |
| BYM10-600 | 600 | 1,1 | 1,0 | 10 | -65...+175 |
| SM4005 | 600 | 1,1 | 1,0 | 5,0 | -50...+175 |
| FS1J | 600 | 1,1 | 1,0 | 1,0 | -55...+150 |
| SM4006 | 800 | 1,1 | 1,0 | 5,0 | -50...+175 |
| BYM10-1000 | 1000 | 1,2 | 1,0 | 10 | -65...+175 |
| SM4007 | 1000 | 1,1 | 1,0 | 5,0 | -50...+175 |
| FS1M | 1000 | 1,1 | 1,0 | 1,0 | -55...+150 |
| URRM = Max. Peak Recurrent Reverse Voltage, UF = Max. Forward Voltage, IF(AV) = Max. Average Forward Current, IR = Max. Reverse Current, Tj = Operating Temperature Range | |||||
| |||||
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". Form of delivery: orders of less than 5000 resp. 7500 pieces: 500 pieces on tape segment without leader tape and reel; orders of 5000 resp. 7500 pieces: delivery on reel if requested |
|
| Manufacturer |
| Various If you have preference for a particular manufacturer, please inquire before placing your order. |
|
Stregkode:
78285
Intern reference:
78285
Varekode:
SM4005
