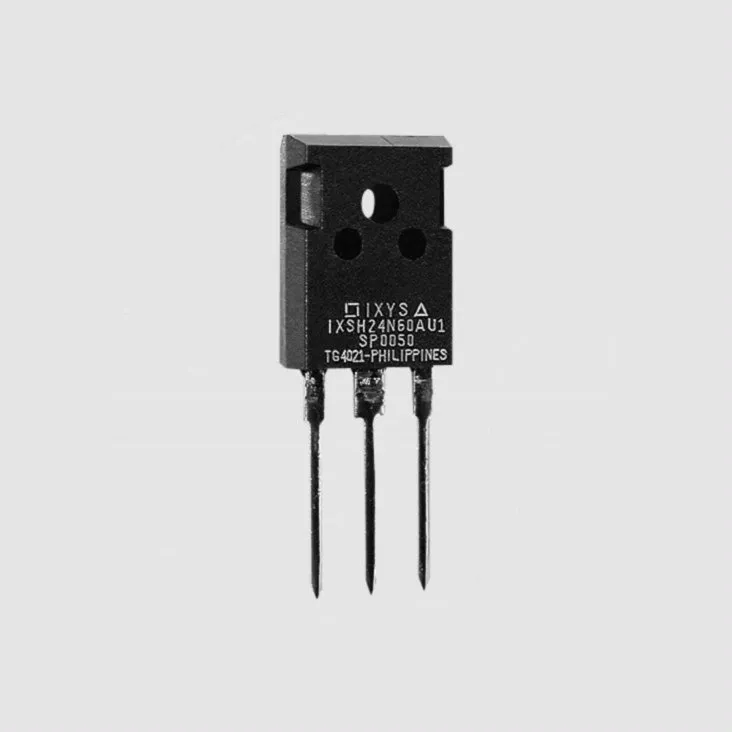

600V 48A 150W TO247AD
Varenummer:
78-227
Varekode:
IXSH24N60AU1
Vægt:
10 g
Lagerstatus:
Ikke på lager
Gruppe:
U4374

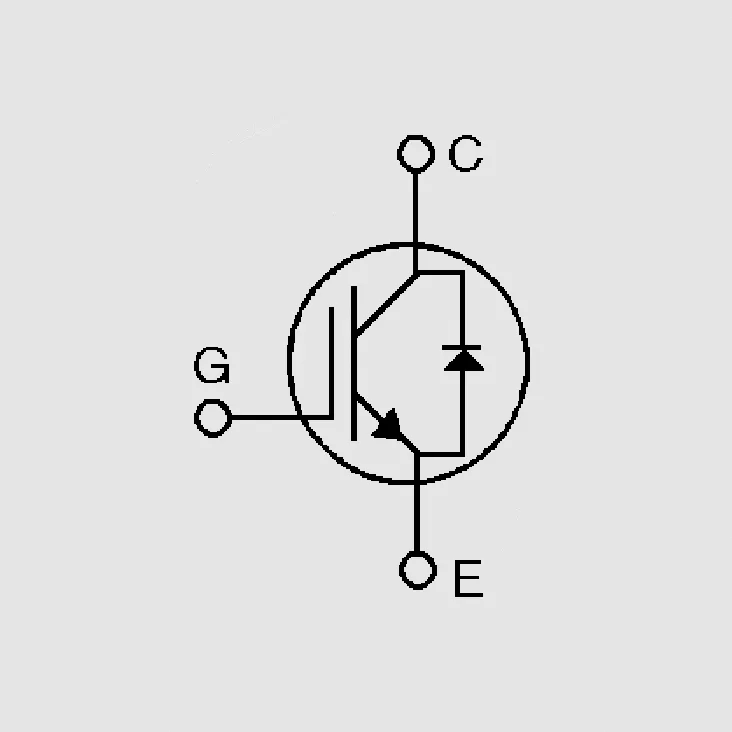

IXYS IGBTs with FRED
Series: IXDH_, IXGH_, IXSH_
Case: TO247AD
IXYS IGBTs with FRED
Series: IXDH_, IXGH_, IXSH_
Case: TO247AD
| Technical Specifications |
| Part Nr. | UCES | IC25 | ICpuls | Ptot | UGE(th) | td(on) | td(off) |
| IX_H_ | [V] | [A] | [A] | [W] | [V] | [ns] | [ns] |
| 20N120D1 | 1200 | 38 | 50 | 200 | 4,5 | 100 | 500 |
| 30N120D1 | 1200 | 60 | 76 | 300 | 4,5 | 100 | 500 |
| 12N60CD1 | 600 | 24 | 48 | 100 | 2,5 | 20 | 60 |
| 17N100AU1 | 1000 | 34 | 68 | 150 | 2,5 | 100 | 500 |
| 20N60BD1 | 600 | 40 | 80 | 150 | 2,5 | 15 | 110 |
| 20N120BD1 | 1200 | 40 | 100 | 190 | 2,5 | 25 | 150 |
| 36N60B3D1 | 600 | 36 | 200 | 250 | 3,0 | 19 | 125 |
| 39N60BD1 | 600 | 76 | 152 | 200 | 2,5 | 25 | 250 |
| 24N60AU1 | 600 | 48 | 96 | 150 | 3,5 | 100 | 450 |
| UCES = Max. Collector-Emitter Breakdown Voltage, IC25 = Max. Continuous Collector Current At TC = 25°C, ICpuls = Max. Pulsed Collector Current, Ptot = Power Dissipation, UGE(th) = Min. Gate Threshold Voltage, td(on) = Turn-On Delay Time, td(off) = Turn-Off Delay Time, TC = Case Temperature | |||||||
 | |||||||
| Note |
| You will find suitable isolation assemblies and heatsinks in our blue "Passive and Electromechanical Components" catalogue starting at product group G9111. Thermolubricants are available in the red "Components and Devices" catalogue from product group R3211. |
|
| Additional Products |
| We will also deliver on request all other articles from IXYS, forward orders possible. |
|
| Terms of Delivery |
| Minimum order quantity: Please see price list column "MOQ". |
|
| Manufacturer |
 |
| http://www.ixys.com |
|
Stregkode:
78227
Intern reference:
78227
Varekode:
IXSH24N60AU1
