600V 40A 160W TO220AB
Varenummer:
78-165
Varekode:
IRG4BC40UPBF
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
U4342
INTERNATIONAL RECTIFIER (IR) IGBTs
Series: IRG4B_, IRGB_

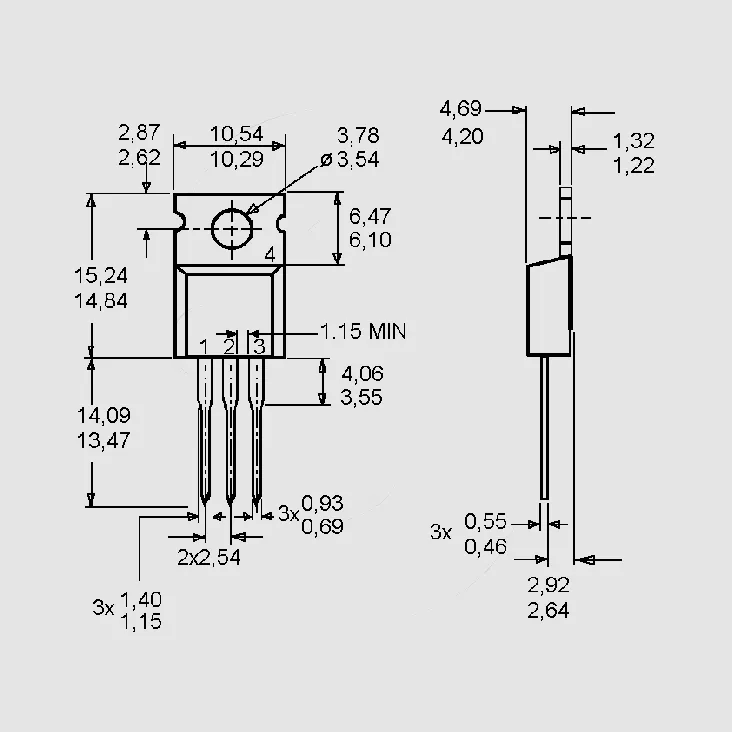

Case: TO220AB
INTERNATIONAL RECTIFIER (IR) IGBTs
Series: IRG4B_, IRGB_
Case: TO220AB
| Technical Specifications |
| Part Nr. | UCES | IC25 | ICpuls | Ptot | UGE(th) | td(on) | td(off) |
| IRG4B/B_ | [V] | [A] | [A] | [W] | [V] | [ns] | [ns] |
| C20SPBF | 600 | 19 | 38 | 60 | 3,0 | 27 | 540 |
| C20UPBF | 600 | 13 | 52 | 60 | 3,0 | 21 | 86 |
| C30KPBF | 600 | 28 | 58 | 100 | 3,0 | 26 | 130 |
| C30SPBF | 600 | 34 | 68 | 100 | 3,0 | 22 | 540 |
| C30UPBF | 600 | 23 | 92 | 100 | 3,0 | 17 | 78 |
| C40SPBF | 600 | 60 | 120 | 160 | 3,0 | 22 | 650 |
| C40UPBF | 600 | 40 | 160 | 160 | 3,0 | 34 | 110 |
| 30B60KBPF | 600 | 78 | 120 | 370 | 3,5 | 46 | 185 |
| UCES = Max. Collector-Emitter Breakdown Voltage, IC25 = Max. Continuous Collector Current At TC = 25°C, ICpuls = Max. Pulsed Collector Current, Ptot = Power Dissipation, UGE(th) = Min. Gate Threshold Voltage, td(on) = Turn-On Delay Time, td(off) = Turn-Off Delay Time, TC = Case Temperature | |||||||
 | |||||||
| Note |
| You will find suitable isolation assemblies and heatsinks in our blue "Passive and Electromechanical Components" catalogue starting at product group G9111. Thermolubricants are available in the red "Components and Devices" catalogue from product group R3211. |
|
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
 |
| http://www.irf.com |
|
Stregkode:
78165
Intern reference:
78165
Varekode:
IRG4BC40UPBF
