N-Ch 100V 24A 56W 0,036R TO220-Fullpak
Varenummer:
78-034
Varekode:
IRFI1310NPBF
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
U8325
INTERNATIONAL RECTIFIER (IR) Power MOSFETs
Series: IRFI_, IRLI_

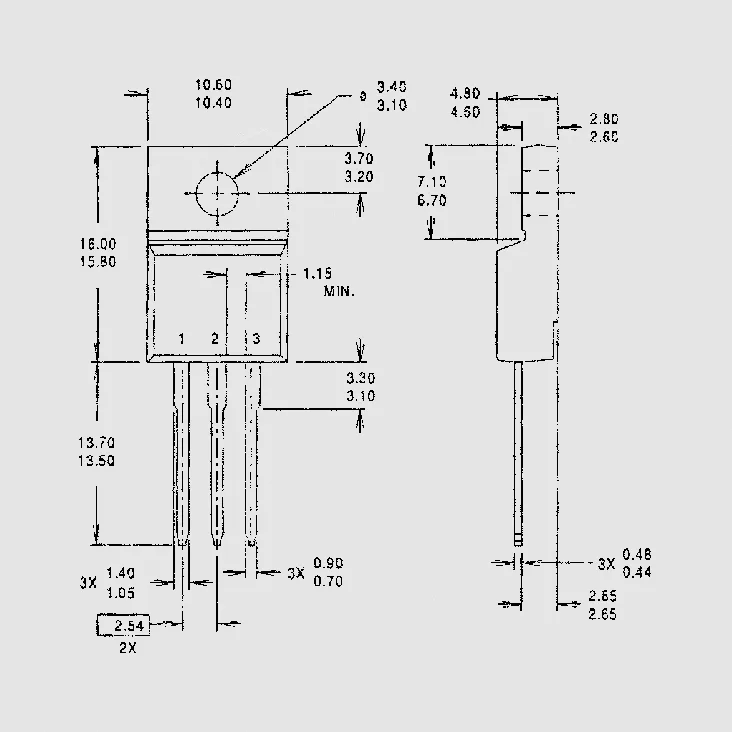

Case: TO220-Fullpak
INTERNATIONAL RECTIFIER (IR) Power MOSFETs
Series: IRFI_, IRLI_
Case: TO220-Fullpak
| Technical Specifications |
| Part Nr. | UDS | ID25 | RDS(on) | UGS(th) | td(on) | td(off) |
| [V] | [A] | W | [V] | [ns] | [ns] | |
| IRFI520NPBF | 100 | 7,6 | 0,200 | 2,0 | 4,5 | 32 |
| IRFI530NPBF | 100 | 12 | 0,110 | 2,0 | 6,4 | 37 |
| IRFI540NPBF | 100 | 20 | 0,052 | 2,0 | 8,2 | 44 |
| IRFI1010NPBF | 55 | 49 | 0,012 | 2,0 | 11 | 40 |
| IRFI1310NPBF | 100 | 24 | 0,036 | 2,0 | 11 | 45 |
| IRFI3205PBF | 55 | 64 | 0,008 | 2,0 | 14 | 43 |
| IRFIZ24NPBF | 55 | 14 | 0,070 | 2,0 | 4,9 | 19 |
| IRFIZ44NPBF | 55 | 31 | 0,024 | 2,0 | 7,3 | 47 |
| IRLI540NPBF | 100 | 23 | 0,044 | 1,0 | 11 | 39 |
| IRLIZ34NPBF | 55 | 22 | 0,035 | 1,0 | 8,9 | 29 |
| IRLIZ44NPBF | 55 | 30 | 0,022 | 1,0 | 11 | 26 |
| UDS = Max. Drain-Source Voltage, ID25 = Max. Continuous Drain Current At TC = 25°C, RDS(on) = Max. Drain-Source On-Resistance, UGS(th) = Min. Gate Threshold Voltage, td(on) = Turn-On Delay Time, td(off) = Turn-Off Delay Time, TC = Case Temperature | ||||||
 | ||||||
| Note |
| You will find suitable MOSFET Driver ICs in this catalogue starting at product group B1633. Suitable isolation assemblies and heatsinks can be found in our blue "Passive and Electromechanical Components" catalogue starting at product group G9111. Thermolubricants are available in the red "Components and Devices" catalogue from product group R3211 |
|
| Terms of Delivery |
| Minimum order quantity: Please see price list column "MOQ". |
|
| Manufacturer |
 |
| http://www.irf.com |
|
