N-Ch 500V 22A 277W 0,23R TO247AC

Varenummer:
78-011
Varekode:
IRFP22N50APBF
Vægt:
10 g
Lagerstatus:
Ikke på lager

kr 28,26 28.26 DKK kr 28,26 Inklusiv moms

kr 28,26 Inklusiv moms

Anmod os om en pris

v/10
Kr. 29,20
v/25
Kr. 22,66
v/100
Kr. 21,14

Denne kombination eksistere ikke.

https://elektroniklavpris.odoo.com/web/image/product.template/21556/image_1920?unique=175300d https://elektroniklavpris.odoo.com/web/image/product.template/21556/image_1920?unique=175300d
Gruppe: U8386
VISHAY (VIS) Power MOSFETs
Series: IRFP_

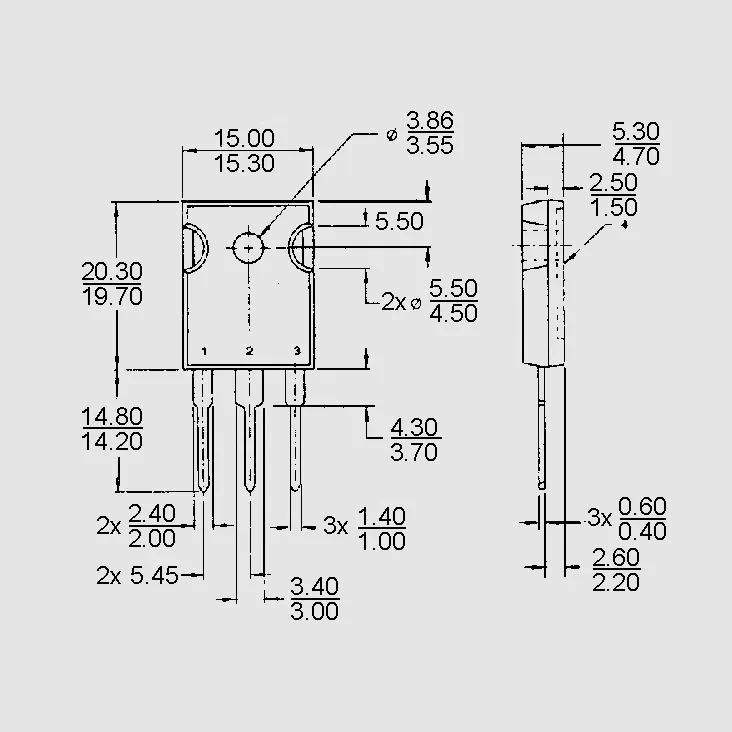

Case: TO247AC
Technical Specifications
Part Nr.
UDS
ID25
RDS(on)
UGS(th)
td(on)
td(off)
 [V]
[A]
W
[V]
[ns]
[ns]
IRFP054PBF60
70
0,014
2,0
20
83
IRFP064PBF60
70
0,009
2,0
21
110
IRFP150PBF100
41
0,055
2,0
16
60
IRFP240PBF200
20
0,180
2,0
14
45
IRFP250PBF200
30
0,085
2,0
16
70
IRFP264PBF250
38
0,075
2,0
22
110
IRFP350PBF400
16
0,300
2,0
16
87
IRFP360PBF400
23
0,200
2,0
18
100
IRFP450PBF500
14
0,400
2,0
17
92
IRFP460PBF500
20
0,270
2,0
18
110
IRFP460APBF500
20
0,270
2,0
18
45
IRFP460LCPBF500
20
0,270
2,0
18
40
IRFP22N50APBF500
22
0,230
2,0
26
47
IRFP27N60KPBF600
27
0,220
3,0
27
43
IRFP9140PBF100
21
0,200
2,0
16
34
IRFP9240PBF200
12
0,500
2,0
14
39
IRFPC40PBF600
6,8
1,200
2,0
13
55
IRFPC50PBF600
11
0,600
2,0
18
88
IRFPC60PBF600
16
0,400
2,0
19
110
IRFPE40PBF800
5,4
2,000
2,0
16
100
IRFPE50PBF800
7,8
1,200
2,0
19
120
IRFPF50PBF900
6,7
1,600
2,0
20
130
IRFPG40PBF1000
4,3
3,500
2,0
15
100
IRFPG50PBF1000
6,1
2,000
2,0
19
130
UDS = Max. Drain-Source Voltage, ID25 = Max. Continuous Drain Current At TC = 25°C, RDS(on) = Max. Drain-Source On-Resistance, UGS(th) = Min. Gate Threshold Voltage, td(on) = Turn-On Delay Time, td(off) = Turn-Off Delay Time, TC = Case Temperature
Note
You will find suitable MOSFET Driver ICs in this catalogue starting at product group B1633. Suitable isolation assemblies and heatsinks can be found in our blue "Passive and Electromechanical Components" catalogue starting at product group G9111. Thermolubricants are available in the red "Components and Devices" catalogue from product group R3211.
Terms of Delivery
Minimum order quantity: please see price list column "MOQ".
Manufacturer
Vishay
http://www.vishay.com
