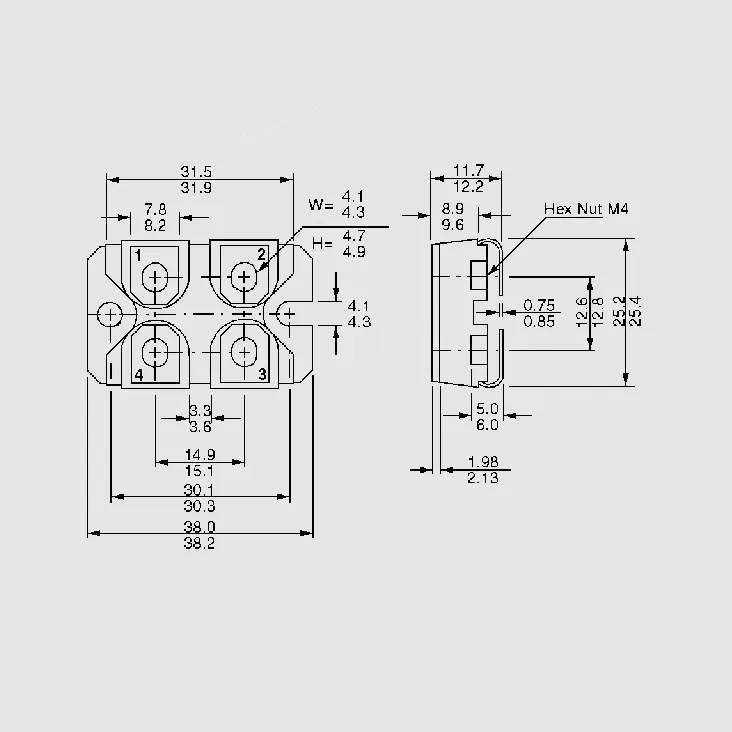

N-Ch 100V 170A 600W 0,010R SOT227B

Varenummer:

77-904

Varekode:

IXFN170N10

Vægt:

0 g

Lagerstatus:

Ikke på lager

v/10

Kr. 431,06

v/25

Kr. 391,88

Denne kombination eksistere ikke.

Køb

Technical Specifications


Part Nr.	U_DS	I_D25	R_DS(on)	U_GS(th)	t_d(on)	t_d(off)
	[V]	[A]	W	[V]	[ns]	[ns]
IXFN27N80	800	27	0,300	2,0	30	75
IXFN27N80Q	800	27	0,320	2,5	20	50
IXFN48N50Q	500	48	0,100	2,0	33	75
IXFN55N50	500	55	0,090	2,5	45	120
IXFN73N30	300	73	0,045	2,0	30	100
IXFN106N20	200	106	0,020	2,0	30	75
IXFN120N20	200	120	0,017	2,0	42	110
IXFN130N30	300	130	0,022	2,0	45	130
IXFN150N15	150	150	0,0125	2,0	50	110
IXFN170N10	100	170	0,010	2,0	40	158
IXFN200N07	70	200	0,006	2,0	30	100
IXTN21N100	1000	21	0,550	2,0	30	100
IXTN79N20	200	85	0,025	2,0	70	200
U_DS = Max. Drain-Source Voltage, I_D25 = Max. Continuous Drain Current At T_C = 25°C, R_DS(on) = Max. Drain-Source On-Resistance, U_GS(th) = Min. Gate Threshold Voltage, t_d(on) = Turn-On Delay Time, t_d(off) = Turn-Off Delay Time, T_C = Case Temperature

Additional Products

We will also deliver on request all other articles from IXYS, forward orders possible.

Manufacturer

http://www.ixys.com
