N-Ch 200V 106A 520W 0,020R SOT227B
Varenummer:
77-900
Varekode:
IXFN106N20
Vægt:
40 g
Lagerstatus:
Ikke på lager
Gruppe:
U8347
IXYS Power MOSFETs
Series: IXFN_, IXTN_

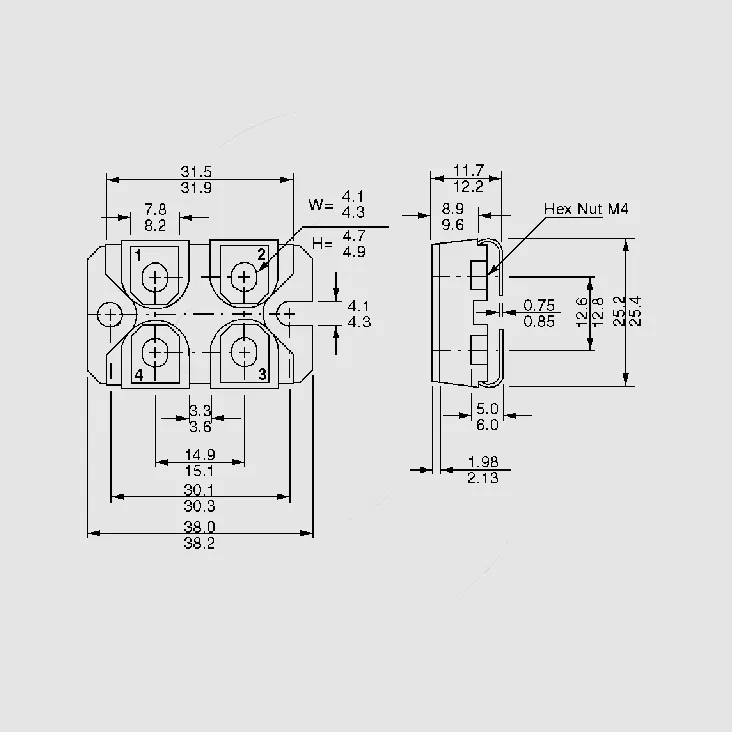

Case: SOT227B
IXYS Power MOSFETs
Series: IXFN_, IXTN_
Case: SOT227B
| Technical Specifications |
| Part Nr. | UDS | ID25 | RDS(on) | UGS(th) | td(on) | td(off) |
| [V] | [A] | W | [V] | [ns] | [ns] | |
| IXFN27N80 | 800 | 27 | 0,300 | 2,0 | 30 | 75 |
| IXFN27N80Q | 800 | 27 | 0,320 | 2,5 | 20 | 50 |
| IXFN48N50Q | 500 | 48 | 0,100 | 2,0 | 33 | 75 |
| IXFN55N50 | 500 | 55 | 0,090 | 2,5 | 45 | 120 |
| IXFN73N30 | 300 | 73 | 0,045 | 2,0 | 30 | 100 |
| IXFN106N20 | 200 | 106 | 0,020 | 2,0 | 30 | 75 |
| IXFN120N20 | 200 | 120 | 0,017 | 2,0 | 42 | 110 |
| IXFN130N30 | 300 | 130 | 0,022 | 2,0 | 45 | 130 |
| IXFN150N15 | 150 | 150 | 0,0125 | 2,0 | 50 | 110 |
| IXFN200N07 | 70 | 200 | 0,006 | 2,0 | 30 | 100 |
| IXTN21N100 | 1000 | 21 | 0,550 | 2,0 | 30 | 100 |
| IXTN79N20 | 200 | 85 | 0,025 | 2,0 | 70 | 200 |
| UDS = Max. Drain-Source Voltage, ID25 = Max. Continuous Drain Current At TC = 25°C, RDS(on) = Max. Drain-Source On-Resistance, UGS(th) = Min. Gate Threshold Voltage, td(on) = Turn-On Delay Time, td(off) = Turn-Off Delay Time, TC = Case Temperature | ||||||
 | ||||||
| Note |
| You will find suitable MOSFET Driver ICs in this catalogue starting at product group B1633. |
|
| Additional Products |
| We will also deliver on request all other articles from IXYS, forward orders possible. |
|
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
 |
| http://www.ixys.com |
|
Stregkode:
77900
Intern reference:
77900
Varekode:
IXFN106N20
