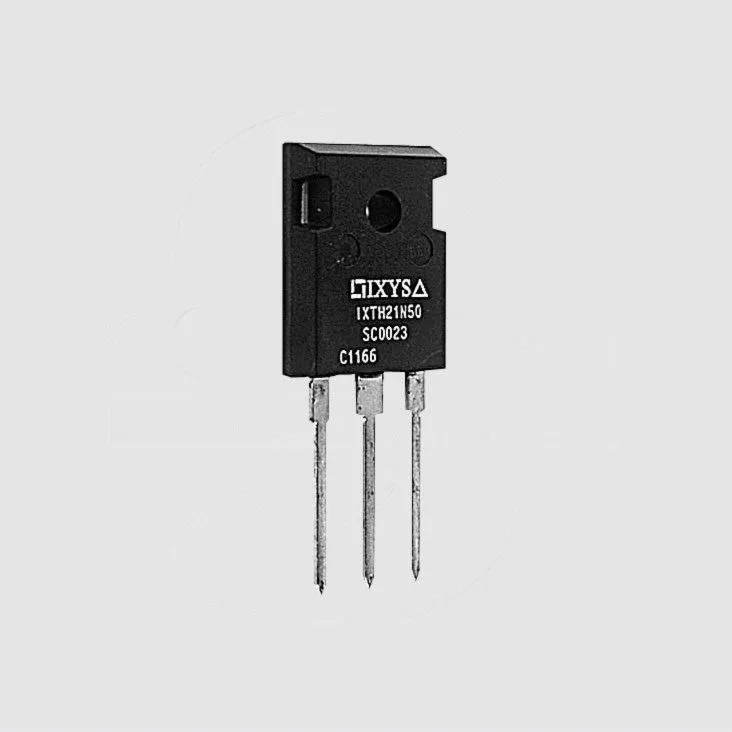

N-Ch 500V 21A 300W 0,25R TO247AD
Varenummer:
77-887
Varekode:
IXTH21N50
Vægt:
10 g
Lagerstatus:
Ikke på lager
Gruppe:
U8342
IXYS Power MOSFETs
Series: IXFH_, IXTH_

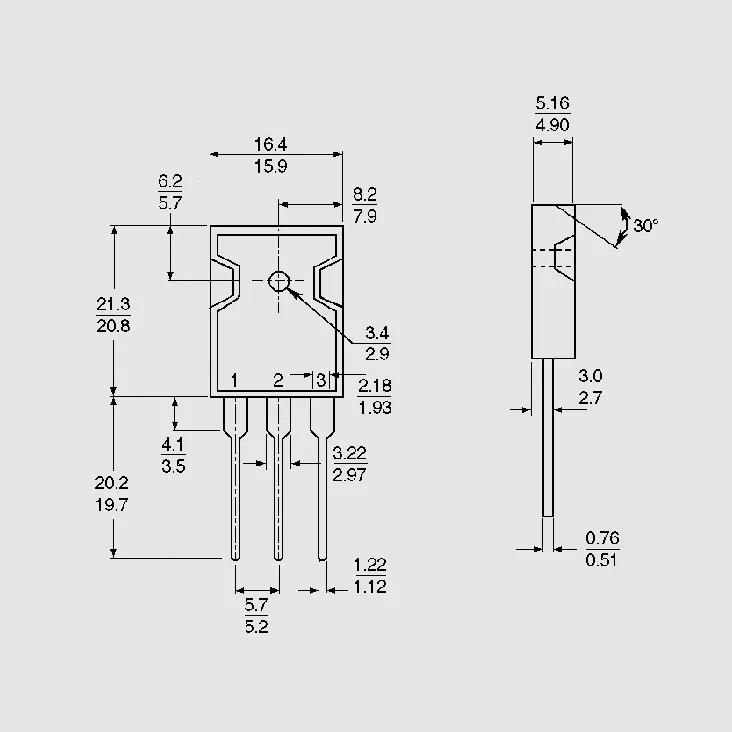

Case: TO247AD
IXYS Power MOSFETs
Series: IXFH_, IXTH_
Case: TO247AD
| Technical Specifications |
| Part Nr. | UDS | ID25 | RDS(on) | UGS(th) | td(on) | td(off) |
| [V] | [A] | W | [V] | [ns] | [ns] | |
| IXFH12N100Q | 1000 | 12 | 1,050 | 2,5 | 20 | 40 |
| IXFH13N50 | 500 | 13 | 0,400 | 2,0 | 18 | 76 |
| IXFH13N80 | 800 | 13 | 0,800 | 2,0 | 20 | 63 |
| IXFH21N50 | 500 | 21 | 0,250 | 2,0 | 16 | 65 |
| IXFH24N50 | 500 | 24 | 0,230 | 2,0 | 16 | 65 |
| IXFH26N50Q | 500 | 26 | 0,200 | 2,5 | 28 | 55 |
| IXFH26N60Q | 600 | 26 | 0,250 | 2,5 | 30 | 80 |
| IXFH32N50 | 500 | 32 | 0,150 | 2,0 | 35 | 110 |
| IXFH40N30Q | 300 | 40 | 0,080 | 2,0 | 20 | 40 |
| IXFH50N20 | 200 | 50 | 0,045 | 2,0 | 18 | 72 |
| IXTH7P50 | 500 | 7,0 | 1,500 | 3,0 | 33 | 35 |
| IXTH11P50 | 500 | 11 | 0,750 | 3,0 | 33 | 35 |
| IXTH21N50 | 500 | 21 | 0,250 | 2,0 | 24 | 65 |
| IXTH40N30 | 300 | 40 | 0,085 | 2,0 | 24 | 75 |
| UDS = Max. Drain-Source Voltage, ID25 = Max. Continuous Drain Current At TC = 25°C, RDS(on) = Max. Drain-Source On-Resistance, UGS(th) = Min. Gate Threshold Voltage, td(on) = Turn-On Delay Time, td(off) = Turn-Off Delay Time, TC = Case Temperature | ||||||
 | ||||||
| Note |
| You will find suitable MOSFET Driver ICs in this catalogue starting at product group B1633. Suitable isolation assemblies and heatsinks can be found in our blue "Passive and Electromechanical Components" catalogue starting at product group G9111. Thermolubricants are available in the red "Components and Devices" catalogue from product group R3211. |
|
| Additional Products |
| We will also deliver on request all other articles from IXYS, forward orders possible. |
|
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
 |
| http://www.ixys.com |
|
