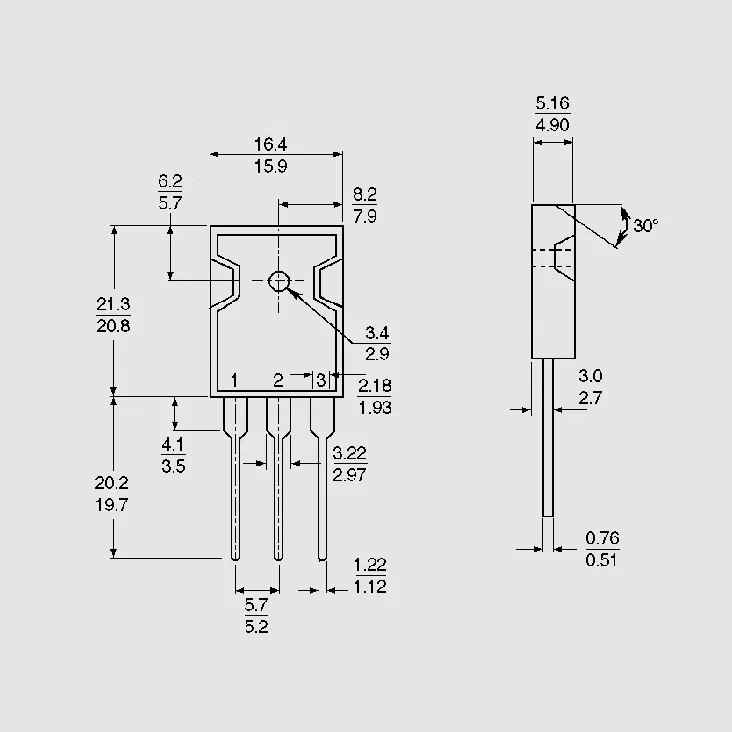

N-Ch 100V 75A 300W 0,02R TO247AD

Varenummer:

77-883

Varekode:

IXFH75N10

Vægt:

0 g

Lagerstatus:

Ikke på lager

v/10

Kr. 120,70

v/25

Kr. 106,23

v/100

Kr. 96,56

Denne kombination eksistere ikke.

Køb

Technical Specifications


Part Nr.	U_DS	I_D25	R_DS(on)	U_GS(th)	t_d(on)	t_d(off)
	[V]	[A]	W	[V]	[ns]	[ns]
IXFH6N100	1000	6,0	2,000	2,0	35	100
IXFH12N100Q	1000	12	1,050	2,5	20	40
IXFH13N50	500	13	0,400	2,0	18	76
IXFH13N80	800	13	0,800	2,0	20	63
IXFH15N80Q	800	15	0,600	2,0	18	53
IXFH21N50	500	21	0,250	2,0	16	65
IXFH24N50	500	24	0,230	2,0	16	65
IXFH26N50Q	500	26	0,200	2,5	28	55
IXFH26N60Q	600	26	0,250	2,5	30	80
IXFH32N50	500	32	0,150	2,0	35	110
IXFH40N30Q	300	40	0,080	2,0	20	40
IXFH50N20	200	50	0,045	2,0	18	72
IXFH58N20	200	58	0,040	2,0	18	72
IXFH75N10	100	75	0,020	2,0	20	80
IXTH7P50	500	7,0	1,500	3,0	33	35
IXTH11P50	500	11	0,750	3,0	33	35
IXTH21N50	500	21	0,250	2,0	24	65
IXTH40N30	300	40	0,085	2,0	24	75
U_DS = Max. Drain-Source Voltage, I_D25 = Max. Continuous Drain Current At T_C = 25°C, R_DS(on) = Max. Drain-Source On-Resistance, U_GS(th) = Min. Gate Threshold Voltage, t_d(on) = Turn-On Delay Time, t_d(off) = Turn-Off Delay Time, T_C = Case Temperature

Additional Products

We will also deliver on request all other articles from IXYS, forward orders possible.

Manufacturer

http://www.ixys.com
