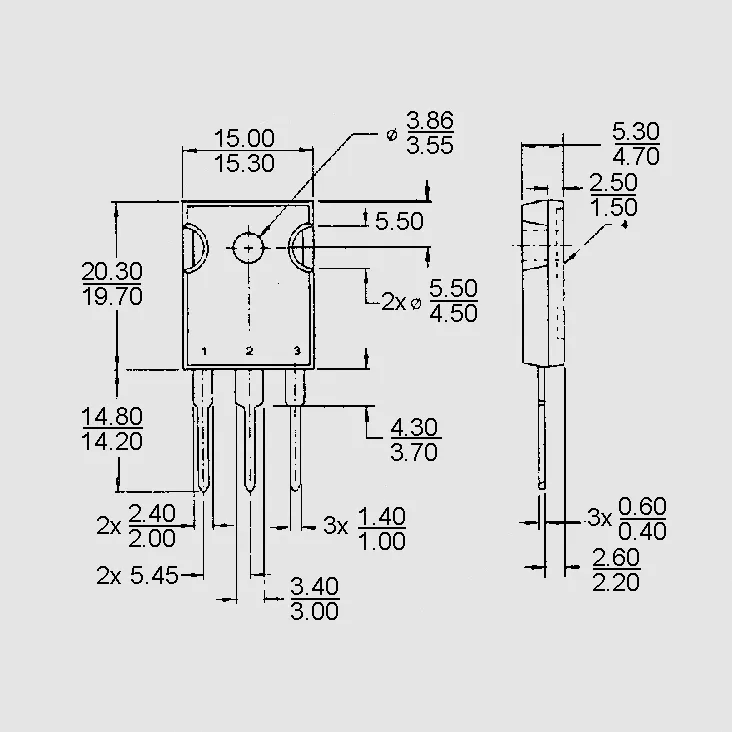

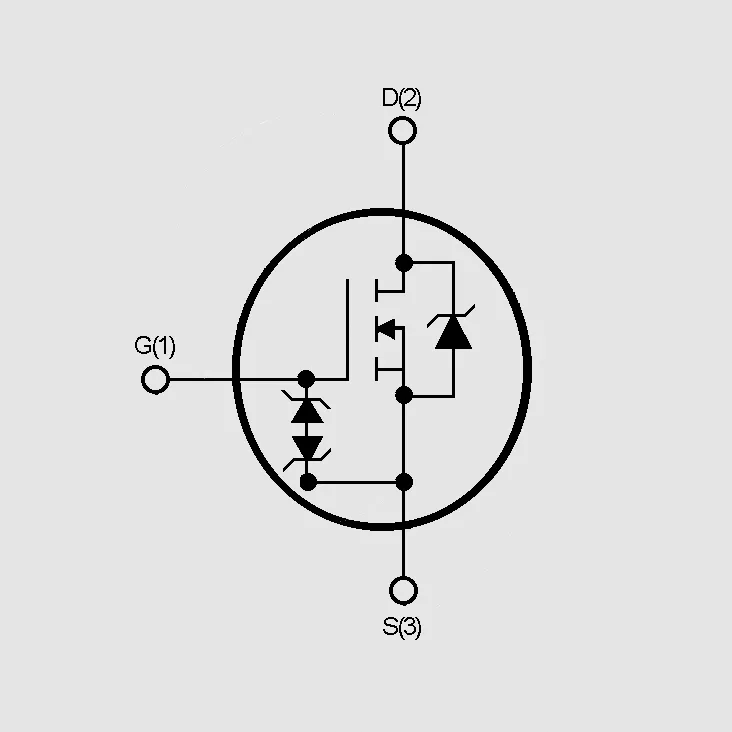

N-Ch+Z-Dio 500V 17A 190W 0,27R TO247
Varenummer:
77-858
Varekode:
STW20NK50Z
Vægt:
10 g
Lagerstatus:
Ikke på lager
| Technical Specifications |
| Part Nr. | UDS | ID25 | RDS(on) | UGS(th) | td(on) | td(off) |
| � | [V] | [A] | W | [V] | [ns] | [ns] |
| STW11NM80 | 800 | 11 | 0,400 | 3,0 | 22 | 46 |
| STW12NK90Z | 900 | 11 | 0,880 | 3,0 | 31 | 88 |
| STW13NK60Z | 600 | 13 | 0,550 | 3,0 | 22 | 61 |
| STW14NK50Z | 500 | 14 | 0,380 | 3,0 | 24 | 54 |
| STW20NK50Z | 500 | 17 | 0,270 | 3,0 | 28 | 70 |
| STW34NB20 | 200 | 34 | 0,075 | 3,0 | 30 | - |
| STW42N65M5 | 650 | 33 | 0,079 | 3,0 | 61 | 65 |
| UDS = Max. Drain-Source Voltage, ID25 = Max. Continuous Drain Current At TC = 25°C, RDS(on) = Max. Drain-Source On-Resistance, UGS(th) = Min. Gate Threshold Voltage, td(on) = Turn-On Delay Time, td(off) = Turn-Off Delay Time, TC = Case Temperature | ||||||
 | ||||||
| Note |
| You will find suitable MOSFET Driver ICs in this catalogue starting at product group B1633. Suitable isolation assemblies and heatsinks can be found in our blue "Passive and Electromechanical Components" catalogue starting at product group G9111. Thermolubricants are available in the red "Components and Devices" catalogue from product group R3211. |
|
| Terms of Delivery |
| Minimum order quantity: Please see price list column "MOQ". |
|
| Manufacturer |
| STM http://www.st.com |
|
Stregkode:
486-3114
Intern reference:
77858
Varekode:
STW20NK50Z
