N-Ch 70V 20A 83W 0,05R TO220
Varenummer:
77-799
Varekode:
VNP20N07
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
U8373
ST MICROELECTRONICS (STM) Power MOSFETs Autoprotected
Series: VNP_

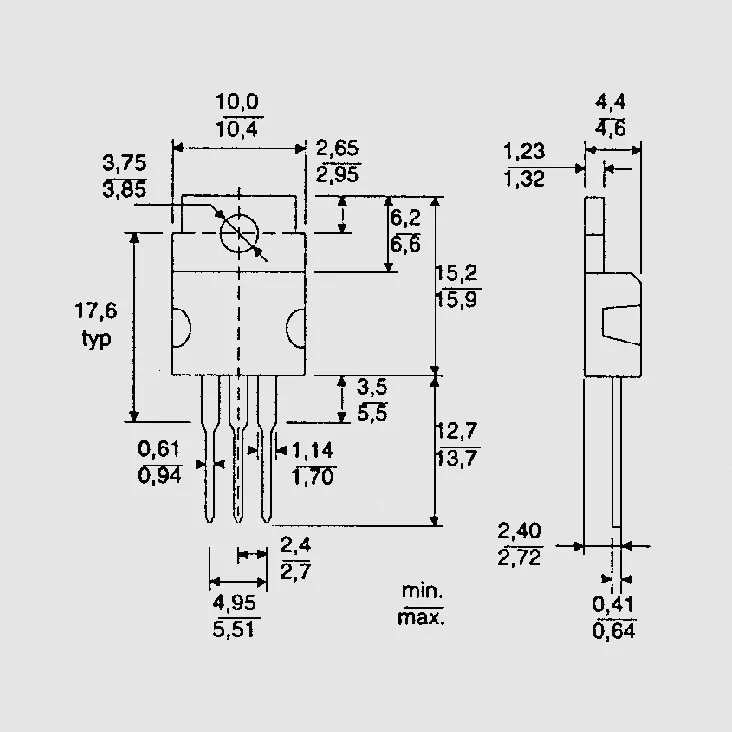

Case: TO220
ST MICROELECTRONICS (STM) Power MOSFETs Autoprotected
Series: VNP_
Case: TO220
| Technical Specifications |
| Part Nr. | UDS | ID25 | RDS(on) | UGS(th) | td(on) | td(off) |
| [V] | [A] | W | [V] | [ns] | [ns] | |
| VNP5N07 | 70 | 5,0 | 0,200 | 0,8 | 50 | 150 |
| VNP10N07 | 70 | 10 | 0,100 | 0,8 | 50 | 230 |
| VNP20N07 | 42 | 20 | 0,050 | 0,8 | 90 | 430 |
| VNP28N04 | 42 | 28 | 0,035 | 0,8 | 100 | 400 |
| VNP35N07 | 70 | 35 | 0,028 | 0,8 | 100 | 650 |
| UDS = Max. Drain-Source Voltage, ID25 = Max. Continuous Drain Current At TC = 25°C, RDS(on) = Max. Drain-Source On-Resistance, UGS(th) = Min. Gate Threshold Voltage, td(on) = Turn-On Delay Time, td(off) = Turn-Off Delay Time, TC = Case Temperature | ||||||
 | ||||||
| Note |
| You will find suitable MOSFET Driver ICs in this catalogue starting at product group B1633. Suitable isolation assemblies and heatsinks can be found in the blue "Passive and Electromechanical Components" catalogue starting at product group G9111. Thermolubricants are available in the red "Components and Devices" catalogue from product group R3211. |
|
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
| STM http://www.st.com |
|
Stregkode:
77799
Intern reference:
77799
Varekode:
VNP20N07
