  1. Alle produkter
  2. P-Ch 20V 2,3A 1,25W 0,13R SOT23

P-Ch 20V 2,3A 1,25W 0,13R SOT23

Varenummer:
77-745
Varekode:
TSM2301CX
Vægt:
0 g
Lagerstatus:
Ikke på lager

kr 0,00 0.0 DKK kr 0,00 Inklusiv moms

kr 0,00 Inklusiv moms

Anmod os om en pris

v/100
Kr. 1,38
v/1000
Kr. 1,10

Denne kombination eksistere ikke.

https://elektroniklavpris.odoo.com/web/image/product.template/21301/image_1920?unique=7b36772 https://elektroniklavpris.odoo.com/web/image/product.template/21301/image_1920?unique=7b36772
Gruppe: U8763
TAIWAN SEMICONDUCTOR (TSC) SMD Power MOSFETs
Series: TSM_

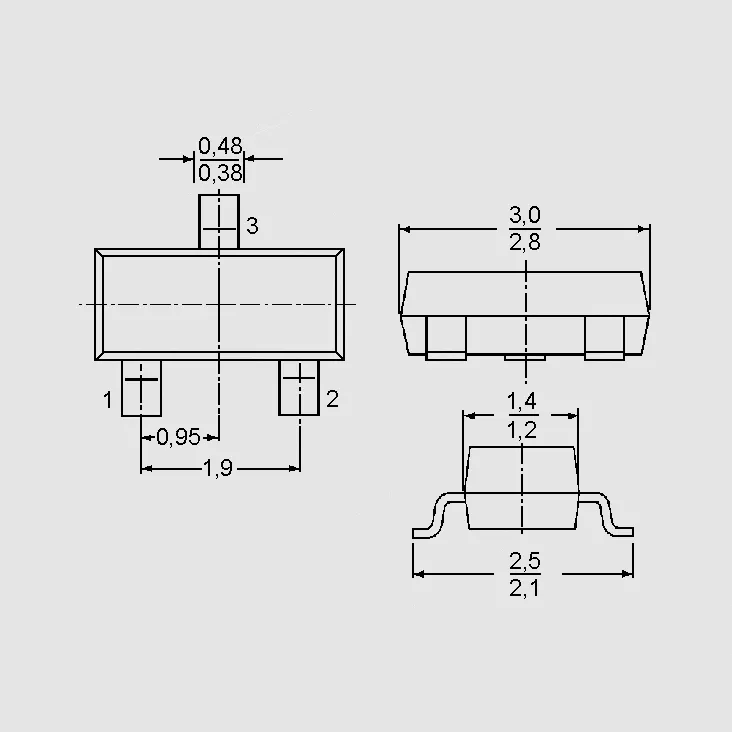

Case: SOT23
Technical Specifications
Part Nr.
UDS
ID25
RDS(on)
UGS(th)
td(on)
td(off)
 [V]
[A]
W
[V]
[ns]
[ns]
TSM2301CX20
2,3
0,130
0,45
5
95
TSM2302CX20
2,4
0,065
0,45
7
16
TSM2306CX30
3,5
0,057
1,0
4,2
13
TSM2307CX30
3,0
0,080
1,0
10
27
TSM2310CX20
4,0
0,030
0,6
15
40
TSM2311CX20
4,0
0,055
0,45
18
95
TSM2312CX20
5,0
0,033
0,45
15
48
TSM2313CX20
3,3
0,070
0,6
22
45
TSM2314CX20
4,9
0,033
0,45
0,53
13,5
TSM2318CX40
3,9
0,045
1,0
5
20
TSM2323CX20
4,7
0,039
0,4
25
71
TSM3400CX30
5,8
0,028
0,7
3,3
26
TSM3401CX30
3,0
0,060
1,0
10,8
22,53
TSM3404CX30
5,8
0,028
1,0
7,42
20,4
TSM2N7002KCX60
0,3
5,000
1,0
25
35
UDS = Max. Drain-Source Voltage, ID25 = Max. Continuous Drain Current At TC = 25°C, RDS(on) = Max. Drain-Source On-Resistance, UGS(th) = Min. Gate Threshold Voltage, td(on) = Turn-On Delay Time, td(off) = Turn-Off Delay Time, TC = Case Temperature
Note
You will find suitable MOSFET Driver ICs in this catalogue starting at product group B1633.
Terms of Delivery
Minimum order quantity: please see price list column "MOQ".

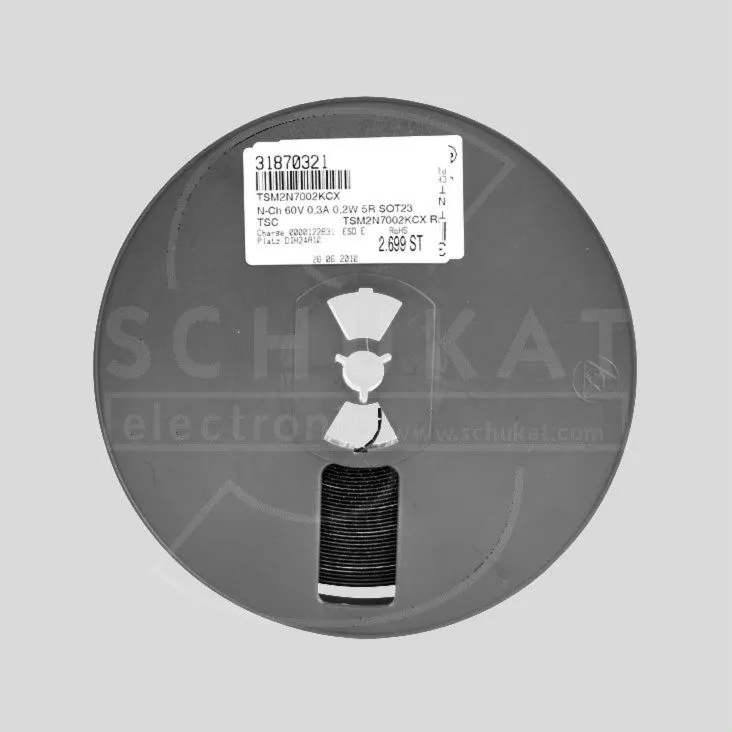

Form of delivery: orders of less than 3000 pieces: 100 pieces on tape segment without leader tape and reel; orders of 3000 pieces: delivery on reel if requested.
Articles in bold print in stock, other articles available on request.
Manufacturer

http://www.taiwansemi.com
