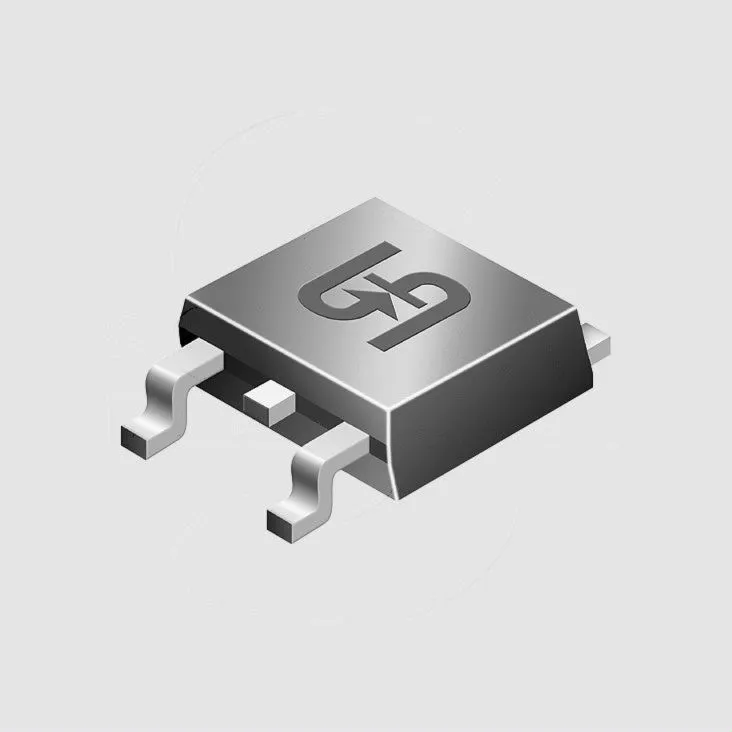

N-Ch 600V 2A 50W 8,0R TO252
Varenummer:
77-744
Varekode:
TSM2N60CP
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
U8767
TAIWAN SEMICONDUCTOR (TSC) SMD Power MOSFETs
Series: TSM_

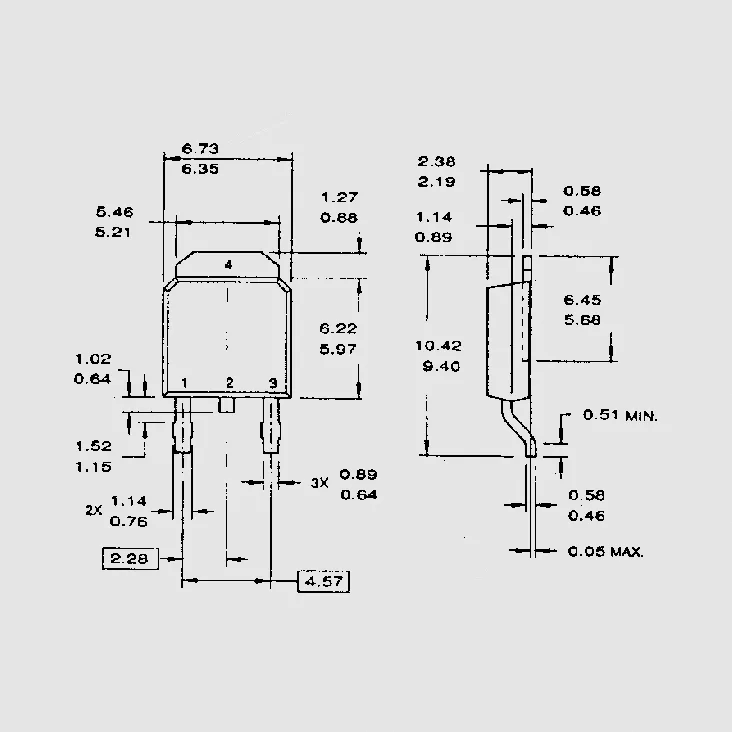

Case: TO252
TAIWAN SEMICONDUCTOR (TSC) SMD Power MOSFETs
Series: TSM_
Case: TO252
| Technical Specifications |
| Part Nr. | UDS | ID25 | RDS(on) | UGS(th) | td(on) | td(off) |
| [V] | [A] | W | [V] | [ns] | [ns] | |
| TSM1N60LCP | 600 | 1,0 | 12,000 | 2,0 | 8 | 18 |
| TSM2N60CP | 600 | 2,0 | 8,000 | 2,0 | 12 | 30 |
| TSM25N03CP | 25 | 25 | 0,014 | 1,0 | 20,2 | 49,5 |
| TSM35N03CP | 25 | 35 | 0,0085 | 1,0 | 12 | 32 |
| TSM55N03CP | 25 | 55 | 0,006 | 1,0 | 15,13 | 45,27 |
| UDS = Max. Drain-Source Voltage, ID25 = Max. Continuous Drain Current At TC = 25°C, RDS(on) = Max. Drain-Source On-Resistance, UGS(th) = Min. Gate Threshold Voltage, td(on) = Turn-On Delay Time, td(off) = Turn-Off Delay Time, TC = Case Temperature | ||||||
 | ||||||
| Note |
| You will find suitable MOSFET Driver ICs in this catalogue starting at product group B1633. |
|
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". Form of delivery: orders of less than 2500 pieces: 25 pieces on tape segment without leader tape and reel; orders of 2500 pieces: delivery on reel if requested. Articles in bold print in stock, other articles available on request. |
|
| Manufacturer |
 |
| http://www.taiwansemi.com |
|
Stregkode:
77744
Intern reference:
77744
Varekode:
TSM2N60CP
