N-FET 30V 25mA 0,3W 12-25mA TO92
Varenummer:
77-713
Varekode:
BF245C
Vægt:
0 g
Lagerstatus:
Ikke på lager
Produktoplysninger
- TRANSISTOR, JFET, N, TO-92
- Transistor Type: JFET
- Breakdown Voltage Vbr: -30V
- Zero Gate Voltage Drain Current Idss: 12mA to 25mA
- Gate-Source Cutoff Voltage Vgs(off) Max: 8V
- Power Dissipation Pd: 350mW

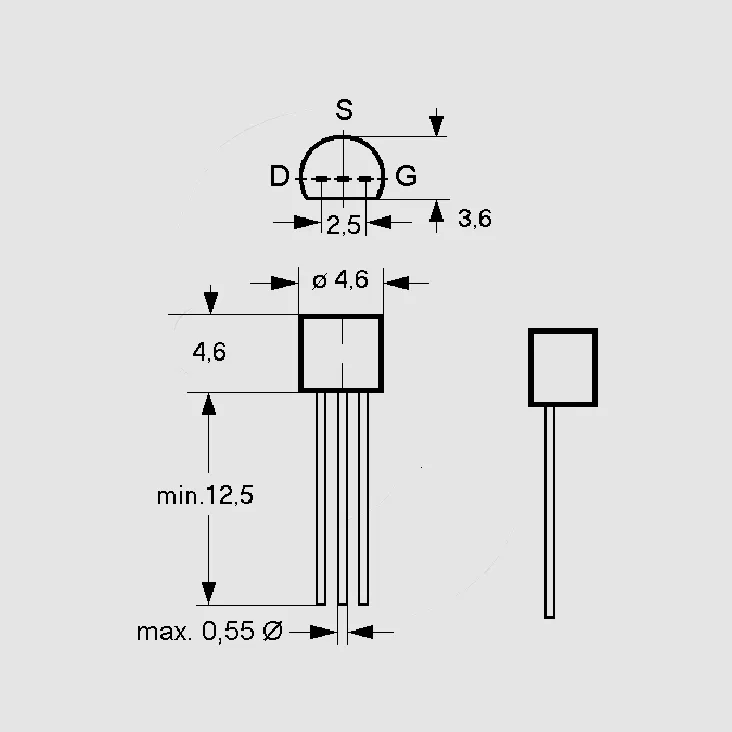

- Transistor Case Style: TO-92
- No. of Pins: 3
- SVHC: No SVHC (18-Jun-2012)
- Application Code: HFA
- Current Idss Max: 25mA
- Current Idss Min: 12mA
- Current Ig: 10mA
- Device Marking: BF245C
- Drain Source Voltage Vds: 30V
- Forward Transconductance Gfs Max: 6.5mA/V
- Full Power Rating Temperature: 25°C
- Gfs Min: 3mA/V
- No. of Transistors: 1
- Operating Frequency Range: 1MHz to 500MHz
- Package / Case: TO-92
- Pin Configuration: r
- Pin Format: r
- Power Dissipation Pd: 350mW
- Power Dissipation Ptot Max: 350mW
- Termination Type: Through Hole
- Transistor Polarity: N Channel
Stregkode:
77713
Intern reference:
77713
Varekode:
BF245C
