NPN-Darl+Dio 200V 8A 60W TO220
Varenummer:
77-692
Varekode:
BU806
Vægt:
0 g
Lagerstatus:
Ikke på lager
- DARLINGTON TRANSISTOR, TO-220
- Transistor Polarity: NPN
- Collector Emitter Voltage V(br)ceo: 150V
- Power Dissipation Pd: 60W
- DC Collector Current: 8A
- DC Current Gain hFE: 375
- Operating Temperature Min: -65°C
- Operating Temperature Max: 150°C

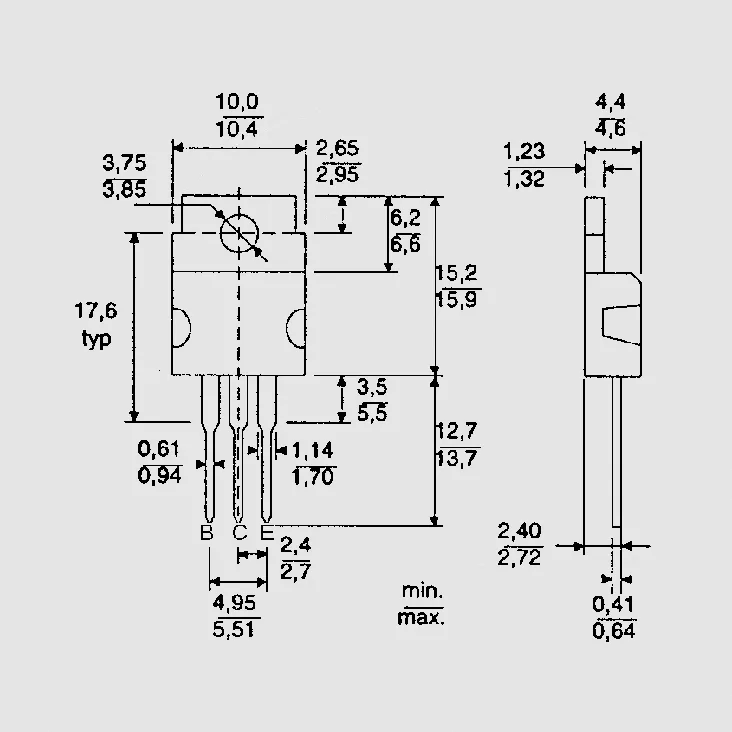

- Transistor Case Style: TO-220
- No. of Pins: 3
- MSL: -
- SVHC: No SVHC (20-Jun-2013)
- Av Current Ic: 8A
- Collector Emitter Voltage Vces: 1.5V
- Continuous Collector Current Ic Max: 8A
- Current Ic @ Vce Sat: 5A
- Current Ic Continuous a Max: 8A
- Current Ic hFE: 4A
- Full Power Rating Temperature: 25°C
- Hfe Min: 375
- No. of Transistors: 1
- Operating Temperature Range: -65°C to +150°C
- Power Dissipation Ptot Max: 60W
- Transistor Type: Darlington
- Voltage Vcbo: 330V
- Voltage Vceo Sat: 1.5V
Stregkode:
77692
Intern reference:
77692
Varekode:
BU806
