NPN-Darl 80V 4A 40W TO126
Varenummer:
77-675
Varekode:
BD679A
Vægt:
0 g
Lagerstatus:
Ikke på lager
- DARLINGTON TRANSISTOR, TO-126
- Transistor Polarity: NPN
- Collector Emitter Voltage V(br)ceo: 60V
- Power Dissipation Pd: 40W
- DC Collector Current: 4A
- DC Current Gain hFE: 750
- Operating Temperature Min: -55°C
- Operating Temperature Max: 150°C

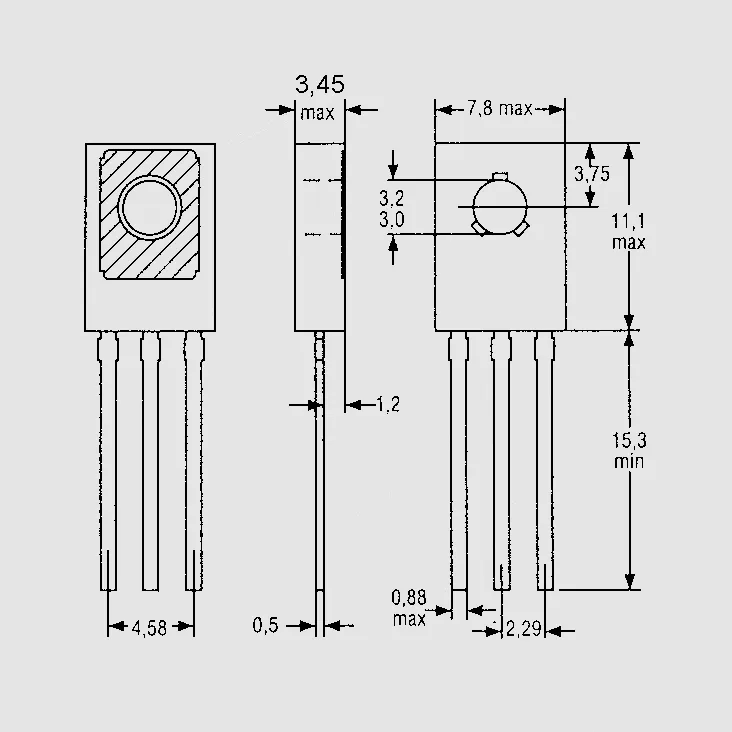

- Transistor Case Style: TO-126
- No. of Pins: 3
- SVHC: No SVHC (19-Dec-2012)
- Av Current Ic: 4A
- Collector Emitter Voltage Vces: 2.5V
- Continuous Collector Current Ic Max: 4A
- Current Ic Continuous a Max: 4A
- Current Ic hFE: 1.5A
- Full Power Rating Temperature: 25°C
- Hfe Min: 750
- No. of Transistors: 1
- Operating Temperature Range: -55°C to +150°C
- Package / Case: TO-126
- Power Dissipation Ptot Max: 40W
- Termination Type: Through Hole
- Transistor Type: Darlington
- Voltage Vcbo: 80V
Stregkode:
486-0014
Intern reference:
77675
Varekode:
BD679A
