NPN 400V 4A 75W B:10-60 TO220
Varenummer:
77-656
Varekode:
MJE13005
Vægt:
0 g
Lagerstatus:
Ikke på lager
- TRANSISTOR, NPN, TO-220
- Transistor Polarity: NPN
- Collector Emitter Voltage V(br)ceo: 400V
- Transition Frequency Typ ft: 4MHz
- Power Dissipation Pd: 75W
- DC Collector Current: 4A
- DC Current Gain hFE: 10

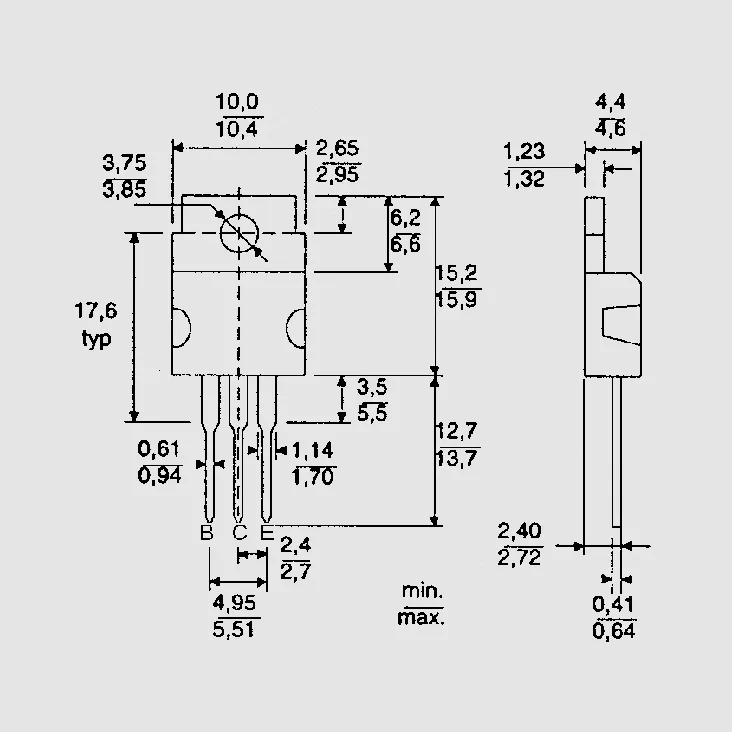

- Transistor Case Style: TO-220
- No. of Pins: 3
- SVHC: No SVHC (18-Jun-2012)
- Av Current Ic: 4A
- Collector Emitter Voltage Vces: 6V
- Continuous Collector Current Ic Max: 4A
- Current Ic @ Vce Sat: 3A
- Current Ic Continuous a Max: 4A
- Current Ic hFE: 2A
- Fall Time @ Ic: 0.9µs
- Full Power Rating Temperature: 25°C
- Gain Bandwidth ft Min: 4MHz
- Gain Bandwidth ft Typ: 4MHz
- Hfe Min: 10
- No. of Transistors: 1
- Package / Case: TO-220
- Power Dissipation Ptot Max: 60W
- Termination Type: Through Hole
- Voltage Vcbo: 700V
Stregkode:
486-1865
Intern reference:
77656
Varekode:
MJE13005
