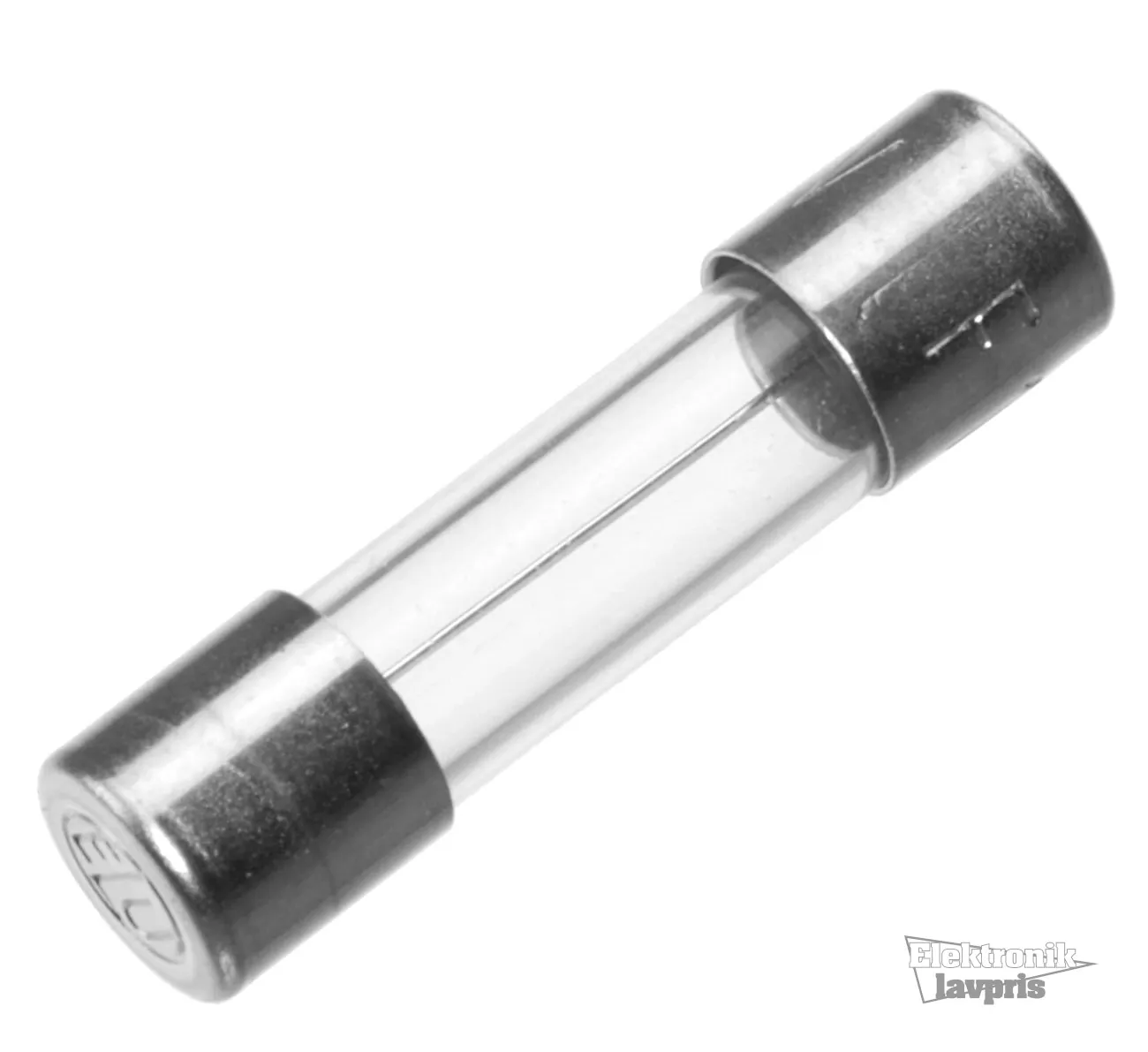

Fuse 6,3x32 Quick-acting 0,315A
Varenummer:
30-718
Varekode:
FSBF00,315
Vægt:
0 g
Lagerstatus:
Ikke på lager
| Technical Specifications |
 |
|
| Rated Voltage: | 250V |
| Fusing Time Limits 50mA...100mA: | |
| 2xIN: | 20s |
| 2,75xIN: | 2ms...200ms |
| 4xIN: | 1ms...30s |
| 10xIN: | 5ms |
| Fusing Time Limits 125mA...10A: | |
| 2xIN: | 20s |
| 2,75xIN: | 20ms...1,5s |
| 4xIN: | 8ms...400ms |
| 10xIN: | 80ms |
|
|
| Part Nr. | Rated | RBC | Voltage | Power | Melting |
| Current | Drop | dissipation | Integral | ||
| [A] | [A AC] | [mV] | [W] | [A2s] | |
| FSBF00.5 | 0,5 | 35 | 2000 | 1,3 | 0,21 |
| FSBF01 | 1,0 | 35 | 500 | 0,5 | 1,1 |
| FSBF01.6 | 1,6 | 35 | 400 | 0,7 | 3,3 |
| FSBF02 | 2,0 | 35 | 300 | 0,8 | 6,2 |
| FSBF02.5 | 2,5 | 35 | 250 | 0,9 | 13 |
| FSBF03.15 | 3,15 | 35 | 250 | 1,1 | 24 |
| FSBF04 | 4,0 | 40 | 250 | 1,3 | 40 |
| FSBF05 | 5,0 | 50 | 200 | 1,4 | 80 |
| FSBF06.3 | 6,3 | 63 | 200 | 1,6 | 150 |
| FSBF08 | 8,0 | 80 | 200 | 2,0 | 240 |
| FSBF10 | 10,0 | 100 | 200 | 2,3 | 500 |
| FSBF12.5 | 12,5 | 125 | 200 | 2,5 | 650 |
| FSBF15 | 15,0 | 150 | 200 | 2,7 | 930 |
| FSBF16 | 16,0 | 160 | 200 | 2,8 | 1250 |
| FSBF20 | 20,0 | 200 | 200 | 4,0 | 1600 |
| RBC = Rated Breaking Capacity | |||||
|
|||||
| Note |
| • When using this type from 6.3A up, consideration should be given to heat dissipation. |
|
| Norms |
| IEC 60127-2/4 |
|
Stregkode:
30718
Intern reference:
30718
Varekode:
FSBF00,315
