Terminal Ring 4.3mm Rød
Varenummer:
30-469
Varekode:
W17017
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe: F1331
FCI Cable Terminals
Series: FS33_, RIKA_
For Crimping
Surface: Tin-plated
FCI Cable Terminals
Series: FS33_, RIKA_
For Crimping
Surface: Tin-plated
| Features |
| • FS33_: Crimp cable lugs with PVC protective mouth sleeve, open lug type • RIKA_: Crimp cable lugs with PVC protective mouth sleeve, ring form |
 |
| Technical Specifications |
| Part Nr. | qRated | Material | Eyelet Ø | Insulation |
| [mm2] | ||||
| FS33164 | 0,5...1,0 | Cu/Sn | - | Red |
| FS33159 | 1,5...2,5 | Cu/Sn | - | Blue |
| RIKA33501 | 0,5...1,0 | Cu/Sn | M3 | Red |
| RIKA33505 | 1,0...2,5 | Cu/Sn | M3 | Blue |
| RIKA33503 | 0,5...1,0 | Cu/Sn | M4 | Red |
| RIKA33506 | 1,0..2,5 | Cu/Sn | M4 | Blue |
| RIKA50100 | 0,5...1,0 | Cu/Sn | M5 | Red |
| RIKA50250 | 1,0..2,5 | Cu/Sn | M5 | Blue |
| RIKA50600 | 4,0...6,0 | Cu/Sn | M5 | Yellow |
| RIKA60100 | 0,5...1,0 | Cu/Sn | M6 | Red |
| RIKA60250 | 1,0..2,5 | Cu/Sn | M6 | Blue |
| RIKA60600 | 4,0...6,0 | Cu/Sn | M6 | Yellow |
| FS33164 = Red Insulation Sleeve, FS33159 = Blue Insulation Sleeve, qRated = Crimping Conductor Cross Section, Cu gal Sn = Copper, Galvanic Tin-plated | ||||
| ||||

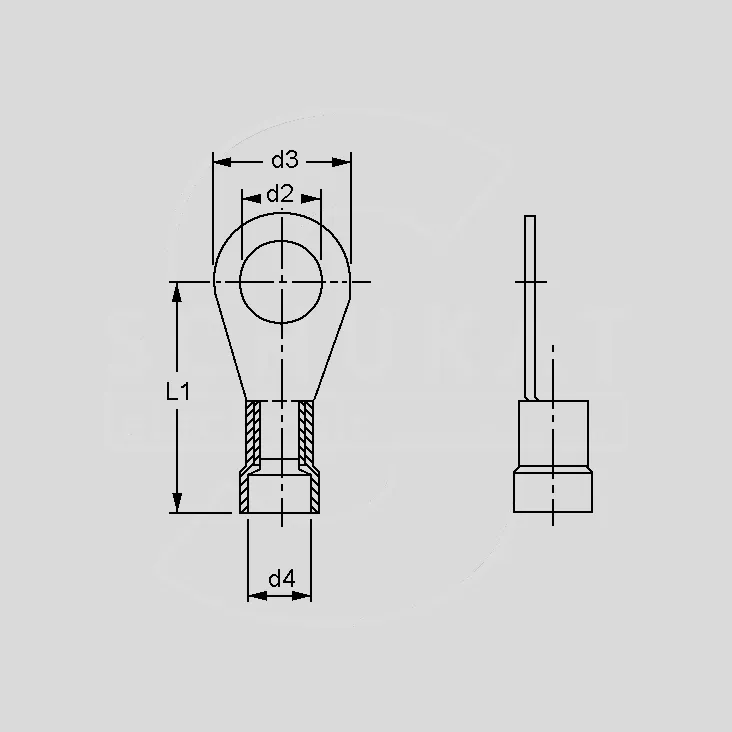

| Dimensions |
| Part Nr. | L1 | d2 | d3 | d4 | s |
| [mm] | |||||
| FS33164 | 16,8 | 4,3 | 8,0 | 4,1 | 0,8 |
| FS33159 | 17,8 | 4,3 | 8,0 | 4,7 | 0,8 |
| RIKA33501 | 15,8 | 3,2 | 6,0 | 4,1 | 0,8 |
| RIKA33505 | 16,8 | 3,2 | 6,0 | 4,7 | 0,8 |
| RIKA33503 | 16,8 | 4,3 | 8,0 | 4,1 | 0,8 |
| RIKA33506 | 17,8 | 4,3 | 8,0 | 4,7 | 0,8 |
| RIKA50100 | 17,0 | 5,3 | 10,0 | 4,15 | 0,8 |
| RIKA50250 | 18,0 | 5,3 | 10,0 | 4,75 | 0,8 |
| RIKA50600 | 20,0 | 5,3 | 10,0 | 6,75 | 0,8 |
| RIKA60100 | 19,8 | 6,5 | 11,0 | 4,15 | 0,8 |
| RIKA60250 | 20,5 | 6,5 | 11,0 | 4,75 | 0,8 |
| RIKA60600 | 23,5 | 6,5 | 11,0 | 6,75 | 0,8 |
| s = Material Strength | |||||
| |||||
| Note |
| For suitable crimping tools, please see our red "Components and Devices" catalogue, product group T4611, part EWZ230C (for non-insulated flat tabs and receptacles) or EWZ301 (for insulated flat tabs and flat receptacles). |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 100 pieces Articles in bold print in stock, other articles of 3000 pieces upwards available on request, delivery time approx. 4 weeks. |
|
| Manufacturer |
| FCI |
|
Stregkode:
4040849170171
Intern reference:
30469
Varekode:
W17017
