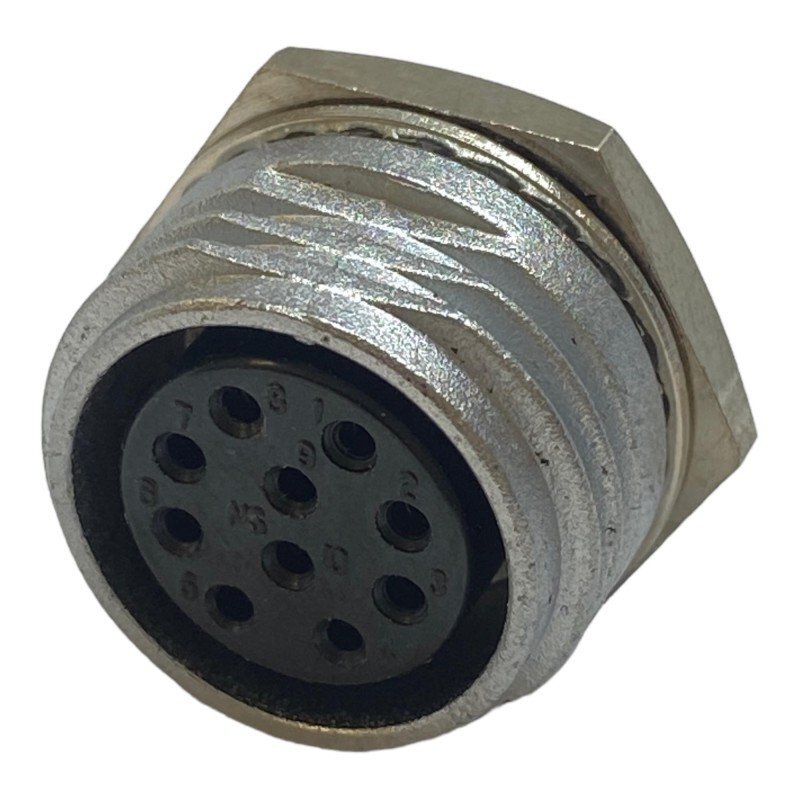

10 pin CCJ DIN female connector
Varenummer:
154-409
Varekode:
CCJDIN
Vægt:
0 g
Lagerstatus:
Ikke på lager
| Pin | N1. Common black and white portapak camera | N2. Common colour portapak camera | N3. 1980s/1990s Panasonic colour portapak camera wiring | N4. JVC colour portapak camera | CCJ cable wires |
|---|---|---|---|---|---|
| 1 | Camera Video out | Video coax core (largest coax) | |||
| 2 | Video gnd | Shield for pin 1 | |||
| 3 | Vertical sync | often unused | Serial data | Line view/ tape playback |
Shielded wire |
| 4 | Shield for pins 3 and 5 | Shield for pins 3 and 5 | Serial clock | Shield for pins 3 and 5 | Shield for pins 3 and 5 |
| 5 | Horizontal sync | Right channel audio (if stereo) |
standby out (steady +5v or 0v) |
Audio return / |
Coax core (thinner coax) |
| 6 | Record stop/start | Record stop/start | Record stop/start (momentary +9v/0v) |
Record stop/start | Unshielded wire |
| 7 | Audio out | Camera audio (left channel if stereo) |
Camera audio | Camera audio | Shielded wire |
| 8 | Audio gnd | Shield for pin 7 | |||
| 9 | Power gnd | Ground wire | |||
| 10 | +12V DC power | Unshielded wire | |||
