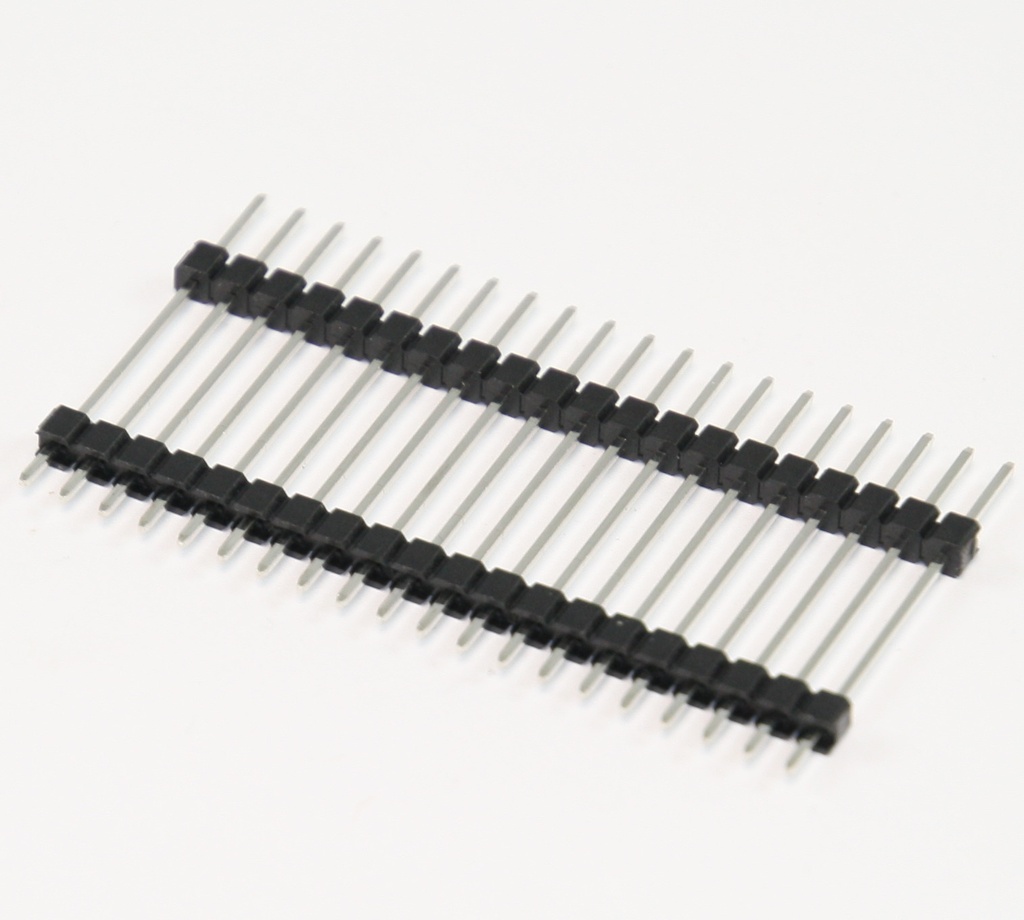

Pin H. 1R 24-Pole 23,5mm Straight Zn
Varenummer:
153-503
Varekode:
ASS02423Z
Vægt:
0 g
Lagerstatus:
Lager: 46 stk.
Gruppe: F2311
MPE GARRY High-Quality Sandwich Pin Headers
Series: STL1
Single Row, Straight
Pitch: 2,54mm
|
Features |
| Tin-plated version Arbitrary mounting |
 |
|
Technical Specifications |
|
|||||||||||||||||||||
| Insulation Shell: | Thermoplastic, UL94V-0 | Contact Material (DIN17660): | CuZn (brass) | Contact Surface: | Sn, lead-free | Insulation Resistance, Max.: | 40mW | Rated Current: | 3A | Rated Voltage: | 250VRMS/250V AC | Breakdown Voltage (1min.): | 500Vrms | Temperature Range: | -40...+105C | Short Term (10s): | +260C | Solderability: | IEC 68-2-20 Tb | ||
|
|||||||||||||||||||||
|

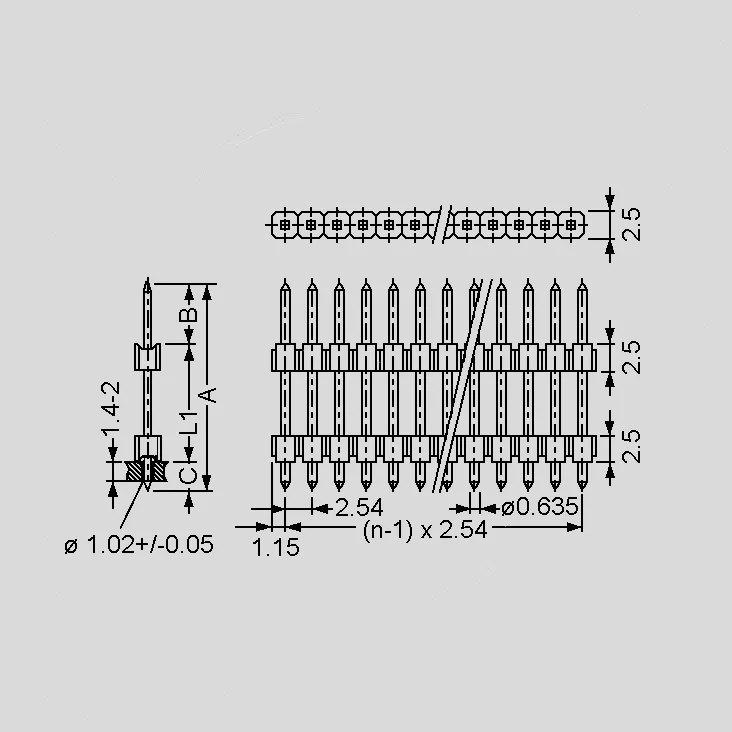

Dimensions |
| Pin Cross Section: | 0,635x0,635mm | ||
|
|||
|
|||||||||||||||||||||||||||||
| Part Nr. | A | B | L1 | C | [mm] | [mm] | [mm] | [mm] | ASS02029Z | 29,0 | 6,5 | 19,2 | 3,3 | ASS02038Z | 37,8 | 6,5 | 28,0 | 3,3 | ASS02045Z | 45,3 | 6,5 | 35,5 | 3,3 | ||||||
| A = Complete Length, B = Plug-in Area, C = Soldered Area | |||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||
| Additional Products |
| Single-row and double-row sandwich headers in lengths (A) from 11,3 to 45,3mm with max. 50 poles, also in gold-plated design, 500 pieces upwards available on request, delivery time approx. 2 to 4 weeks. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.mpegarry.de |
|
Datablad
Stregkode:
153503
Intern reference:
153503
Varekode:
ASS02423Z
