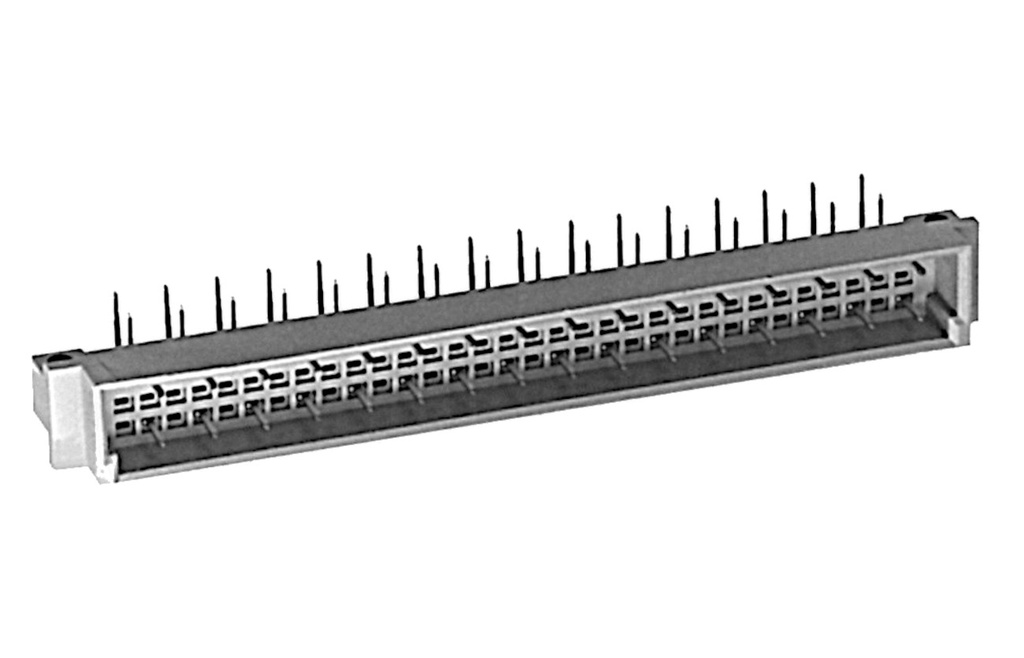

Male A+C Pitch=2,54 64-Pole SL64WW
Varenummer:
153-390
Varekode:
ERNI-334610
Vægt:
0 g
Lagerstatus:
Ikke på lager
Technical Specifications
 |
|
| Insulation Shell: | Glass Filled Polyamide (PBT), (UL94V-0) |
| Contact Material: | Copper Alloy |
| Contact Surface (Class 3): | Hard Gold |
| Mating and Withdraw Force | |
| 32-Pole: | £30N |
| 64-Pole: | £60N |
| 96-Pole: | £90N |
| Air and Creepage: | ³1,2mm |
| Operating Voltage: | 250V AC1) |
| Test Voltage Ueff (Contact/Contact): | 1kV |
| Operating Current at Ambient Temperature | |
| +20°C: | 2A |
| +70°C: | 1A |
| +100°C: | 0,5A |
| Contact Resistance: | £20mW |
| Insulation Resistance: | ³1011W |
| Temperature Range: | -55...+125°C |
| Class: | 3 = 50 Cycles |
| 1) Insulation Group A, VDE 0110 | |
Stregkode:
153390
Intern reference:
153390
Varekode:
ERNI-334610
