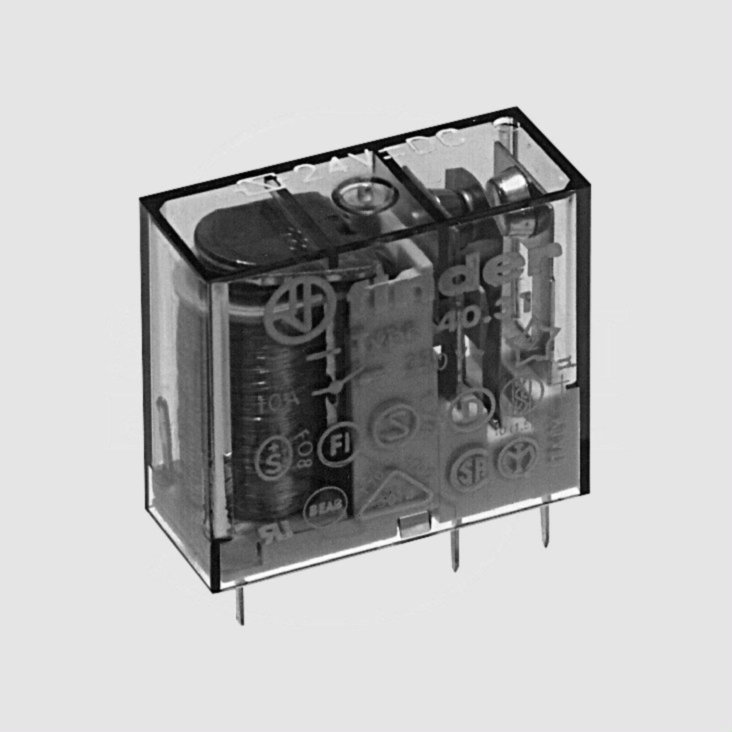

PCB Relay SPDT 10A 18VDC 220R 40.31.9.018.0000
Varenummer:
153-272
Varekode:
F4031-18
Vægt:
0 g
Lagerstatus:
Lager: 1 stk.
Gruppe: E6411
FINDER PCB Relays
Series: 40.31
Contact: SPDT
Rated Current: 10A

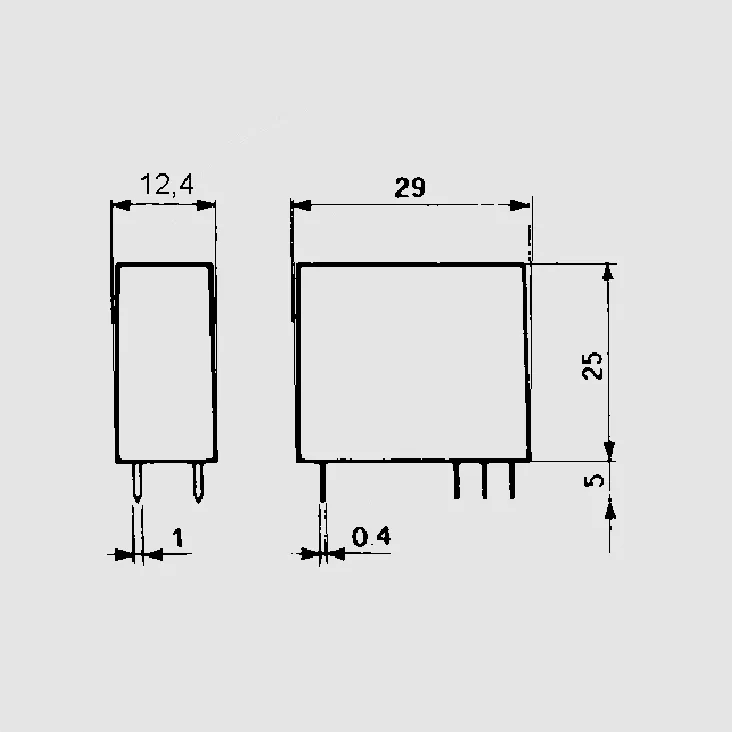

Housing: 29,0x12,4x25,0mm
|
Features |
| F4031-_: vertical, standard F4031-_S: vertical, sensitive DC coil 500mW Versions with DC or AC coil Flux protection (260C, 5s) Protection class RTII |
 |
|
Technical Specifications |
|
|||||||||||||||||||||||||||||||||||
| Contact: | SPDT | Contact Material: | AgNi | Rated Current: | 10A | Max. Switching Current: | 20A | Max. Switching Voltage: | 400V AC | Max. Switching Power: | 500VA | Creepage/Clearance: | 8mm | Operate/Release Time | Standard: | 7/3ms | Sensitive: | 12/4ms | Testing Voltage | Coil/Contact: | 6000V | Opening Contact: | 1000V | Lifetime | Mechanical (AC/DC): | 10x106/ 20x106 Operations | Electrical: | 20x104 Operations | Operating Temperature: | -40...+85C | |||||
|
|||||||||||||||||||||||||||||||||||
|
Coil Data |
| Part Nr. | UN | Umin. | Umax. | IN | PN | RN | F4031-_ | [V] | [V] | [V] | [mA] | [mW] | [W] | 12 | 12V DC | 8,8 | 18 | 55 | 650 | 220 | 12S | 12V DC | 8,8 | 21 | 40 | 500 | 300 | 24 | 24V DC | 17,5 | 36 | 27 | 650 | 900 | 24S | 24V DC | 17,5 | 42 | 20 | 500 | 1200 | AC230 | 230V AC | 184 | 253 | 5 | - | 28000 | |||||||
| UN = Rated Voltage, Umin. = Minimum Operating Voltage, Umax. = Maximum Operating Voltage, IN = Rated Current, PN = Rated Power, RN = Coil Resistance; All Specifications Measured at 20C | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Note |
| Assembly by direct soldering intro the PCB or PCB socket F95132 with retaining clip F9551SW rather F95523, see product group E6481, or DIN rail socket F95833 with retaining clip F95913, see product group E6485 |
|
| Norms |
| The series complies withVDE0106, EN50178, EN60204 and EN60335 secure separation between coil and contacts. |
|
| Labelling |
 |
|
| Approvals |
          |
|
| Additional Products |
| For contact loads of up to 15V DC/AC or in 5 to 20mA range,
relays with silver contacts and hard overlays are recommended; 500
pieces available on request, delivery time 8 weeks. Wash tight version of 500 pieces on request, delivery time 8 weeks. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces F4031-AC230: 1 PKU = 5 pieces |
|
| Manufacturer |
 |
| http://www.findernet.com |
|
