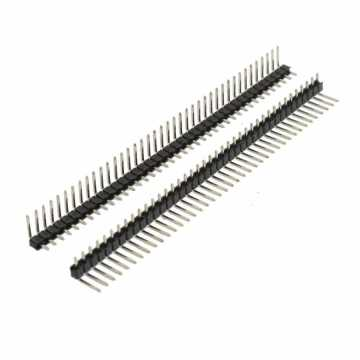

Pin Header 40-Pole Angled 1R
Varenummer:
153-201
Varekode:
ASL040ZW
Vægt:
0 g
Lagerstatus:
Lager: 29 stk.
| Features |
| Tin-plated, part gold-plated or gold-plated design Arbitrary mounting ASL_: High-Quality Pin Headers |
 |
| Technical
Specifications |
|
|
| Insulating Shell: | Thermoplastic, UL94V-0 |
| Contact Material: | Copper alloy |
| Contact Surface | |
| ASL_/WSL_ZW: | Tin-plated |
| ASL_TGW: | Part Gold-plated |
| ASL_GW: | Gold-plated |
| Rated Current: | 3A |
| Rated Voltage: | 250Vrms/V DC |
| Breakdown Voltage (1min.): | 500Vrms |
| Temperature Range: | -40...+105C |
| Short Term (10s): | +260C |
| Solderability ASL_: | IEC 68-2-20 Tb |
|
|

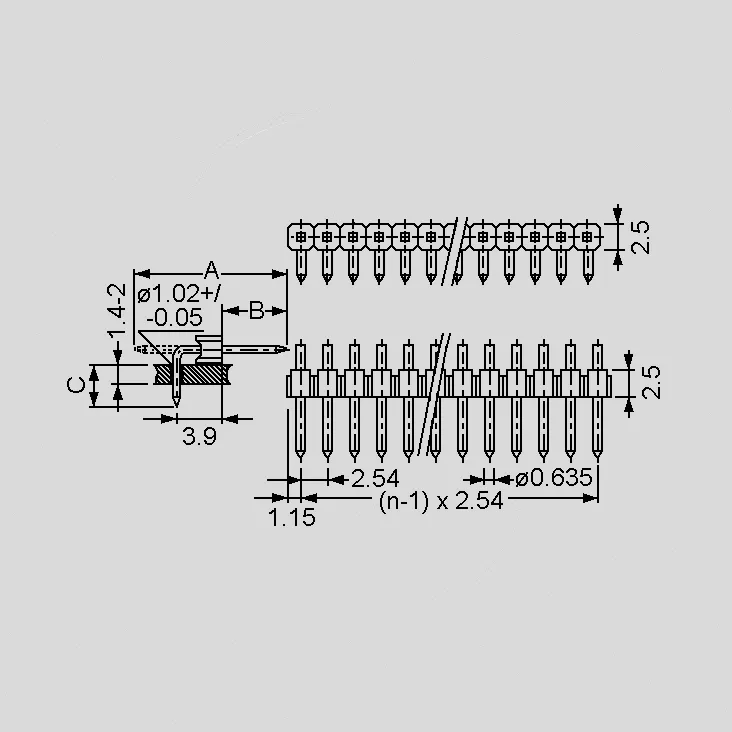

| Dimensions ASL_ |
|
|
| Pin Length, Complete (A): | 14,7mm |
| Pin Length, Plug-in Area (B): | 6,9mm |
| Pin Length, Solder Area (C): | 3,3mm |
| Pin Cross Section: | 0,635x0,635mm |
|
|
| Dimensions WSL_ |
|
|
| Pin Length, Complete (A): | 10,0mm |
| Pin Length, Plug-in Area (B): | 6,1mm |
| Pin Length, Solder Area (C): | 3,3mm |
| Pin Cross Section: | 0,635x0,635mm |
Datablad
Stregkode:
153201
Intern reference:
153201
Varekode:
ASL040ZW
