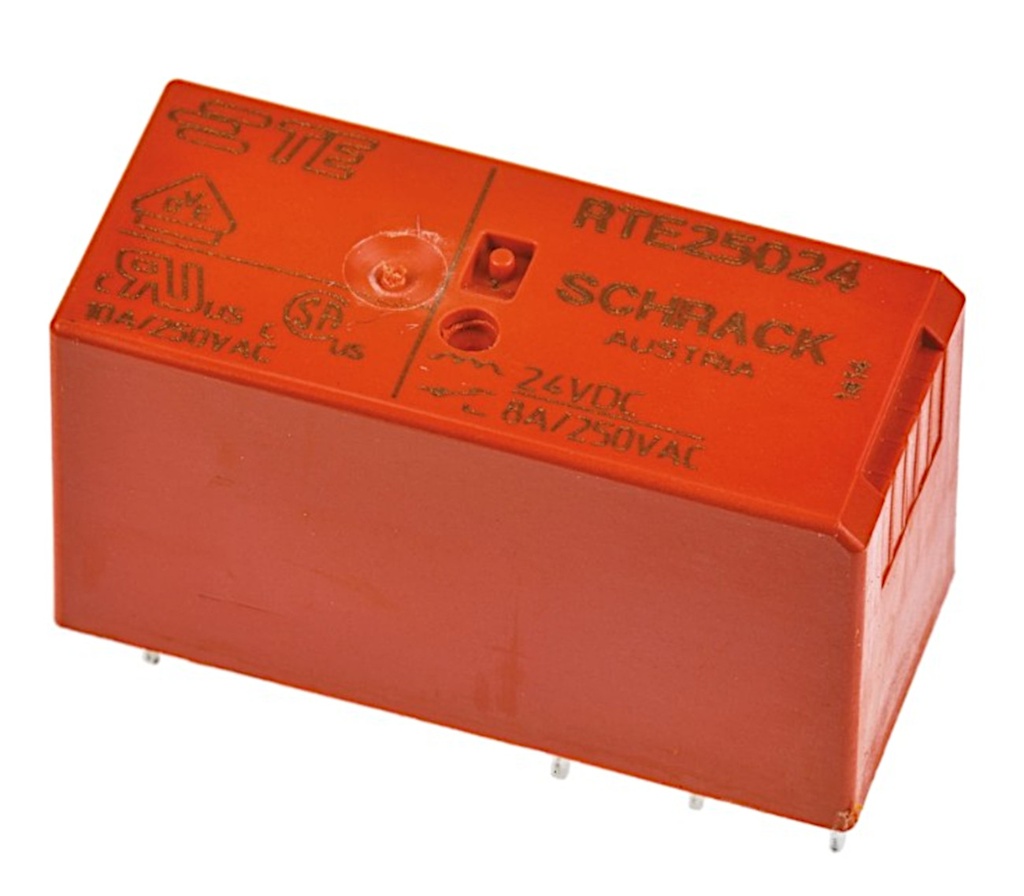

PrintRelæ 24VDC/400mW/1440R/2xSKIFTE
Varenummer:
152-375
Varekode:
RTE25024
Vægt:
0 g
Lagerstatus:
Ikke på lager
|
Type of relay
|
electromagnetic | |
|
Contacts configuration
|
DPDT | |
|
Rated coil voltage
|
24V DC | |
|
Contact current max.
|
8A | |
|
AC contacts rating @R(at resistive load)
|
8A / 250V AC | |
|
DC contacts rating @R(at resistive load)
|
8A / 30V DC | |
|
Switched voltage
|
max. 300V DC, max. 400V AC | |
|
Relay variant
|
miniature | |
|
Mounting
|
PCB | |
|
Coil resistance
|
1.44kΩ | |
|
Coil voltage min.
|
16.8V DC | |
|
Operate time
|
7ms | |
|
Body dimensions
|
29x12.7x15.7mm | |
|
Release time
|
2ms | |
|
Coil power consumption
|
400mW | |
|
IP rating
|
IP67 | |
|
Operating temperature
|
-40...70°C | |
|
Weight
|
14g | |
|
Relay series
|
RT2 | |
|
Contact material
|
AgNi 90/10 Au | |
|
Terminal pitch
|
5mm | |
|
Height
|
15.7mm | |
|
Number of pins
|
8 |
Datablad
Stregkode:
152375
Intern reference:
152375
Varekode:
RTE25024
