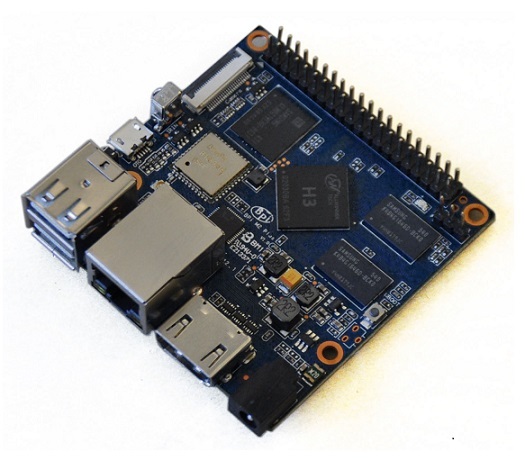

banana pi BPI-M2+ quad core single board computer
banana pi BPI-M2+ quad core single board computer
Banana PI BPI-M2+ is the open source hardware platform,Banana PI BPI-M2+ is an quad core version of Banana Pi,it support WIFI on board. use Alliwnner H3 chip on board. and mini size only 65mm*5mm
Banana Pi BPI-M2+ series run Android,Debian linux,Ubuntu linux, Raspberry Pi image and others image.
Banana PI PBI-M2+ hardware: 1Ghz ARM7 quad-core processor, 1GB DDR3 SDRAM, 8G eMMC flash on board,and SDIO wifi&BT4.0 module on board.
Banana PI BPI-M2+ with Gigabit ethernet port, It can run with Android 4.4 smoothly. it can easily run with the game it support 1080P high definition video output and 4K support, the GPIO compatible with Raspberry Pi B+ and can support raspbian Image

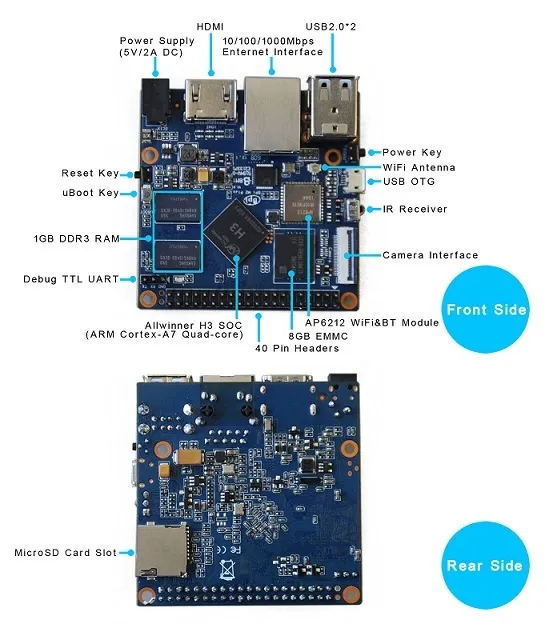

M2+ Specifications
|
CPU |
H3 Quad-core Cortex-A7 H.265/HEVC 4K |
|
GPU |
Mali400MP2 GPU @600MHz,Supports OpenGL ES 2.0 |
|
Memory |
1GB DDR3 (SDRAM shared with GPU) |
|
Storage Support |
MicroSD card (Max. 64GB), 8GB EMMC Flash |
|
Onboard Network |
10/100/1000 Ethernet RJ45 Realtek RTL8211E |
|
WiFi |
WiFi b/g/n Ampak AP6212 |
|
Video In |
CSI connector for 8-bit YUV42 CMOS sensor and capture of 1080p@30fps |
|
Video Out |
HDMI |
|
Audio Out |
HDMI |
|
Power Source |
DC 5V @ 2A (4.0mm/1.7mm barrel plug - centre positive) |
|
USB Ports |
2x USB 2.0 |
|
Buttons |
Power Button, Reset Button, Uboot Button |
|
GPIO |
3 pin UART, CSI, 40 pin GPIO |
|
LED |
Red LED |
|
OS |
Android, Raspbian, Ubuntu, OpenSUSE, Debian, Bananian |
|
Dimensions |
65mm * 65mm |
|
Weight |
48g |
Stregkode:
150863
Intern reference:
150863
Varekode:
BPI-M2+
