DIP Switch Piano 5-Pole
Varenummer:
150-551
Varekode:
YD-05ZA
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe: E2513
ECE DIP/DIL Switches
Series: EPG
Type: Piano
Pitch: 2,54mm
| Features |
| • Bottom epoxy sealed against flux immersion |
 |
| Electrical Specifications |
|
|||||||||||||||||
| Switching Capacity: | 25mA/24V DC | Transmission Current: | 100mA/50V DC | Contact Resistance, Max. | New State: | 50mW | After Operating Life Test: | 100mW | Insulation Resistance (100V DC), Min.: | 1000MW | Dielectric Strength, Min.: | 500V DC/1min. | Capacity of Adjacent Switch, Max.: | 5pF | |||
|
|||||||||||||||||
| Technical Specifications |
|
|||||||||||||||||
| Insulation Shell: | UL94V-0, Blue | Contact Finish: | Gold Over Nickel | Operating Temperature: | -25...+70°C | Storage Temperature: | -40...+85°C | Operating Force, Max.: | 800g | Switching Capacity: | 2000 Operations | Air Humidity: | 95% RH, 40°C/96h | Vibration Test: | MIL-STD-202F, Method 204D | ||
|
|||||||||||||||||

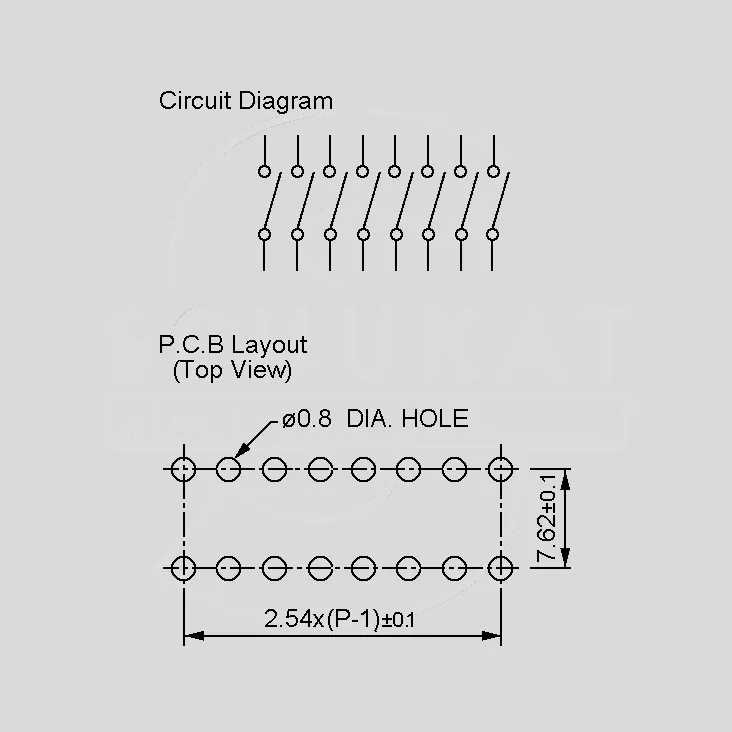

| Pitch |
|
|||||
| Pitch: | 2,54mm | Spacing Between Rows: | 7,62mm | ||
|
|||||
| Dimensions and Packing Units |
| Part Nr. | Switch | A | PKU | [mm] | [Single Unit/Tube] | EPG102A | 2 | 6,7 | 80 | EPG104A | 4 | 11,7 | 44 | EPG106A | 6 | 16,7 | 31 | EPG108A | 8 | 21,7 | 23 | EPG110A | 10 | 26,7 | 19 | ||||||
|
|||||||||||||||||||||||||||||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces Form of delivery: See "PKU" column |
|
| Manufacturer |
| ECE http://www.ece.com.tw |
|
