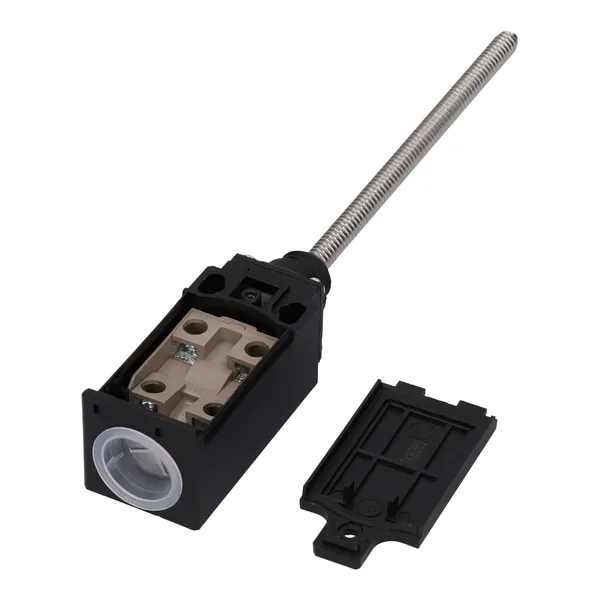

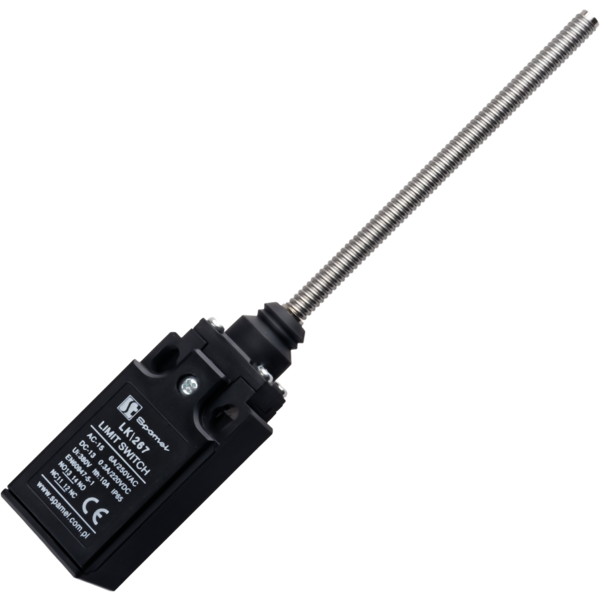

Endestop, Fjedrende stålstav, 250V/5A IP65
Varenummer:
149-196
Varekode:
LK\267
Vægt:
100 g
Lagerstatus:
Ikke på lager
|
SPAMEL
|
||
|
limit switch
|
||
|
spring length 142mm
|
||
|
NO + NC
|
||
|
5A
|
||
|
max. 250V AC, max. 250V DC
|
||
|
IP65
|
||
|
30.6x53x30mm
|
||
|
2
|
||
|
-25...70°C
|
||
|
plastic
|
||
|
5A / 250V AC
|
||
|
0.2A / 250V DC
|
||
|
20/22mm
|
||
|
snap action contacts
|
Economical & plastic type
Stainless steel roller, punch and spring
Swing amplitude, extra large±95°
Standard size configuration M20x1.5 for conduit connector
| Ambient temperature | -10 ... +70°C (with no icing) |
| Degree of protection | IP65 |
| Insulation resistance | 100mΩ min. (below 500VDC) |
| Contact resistance | 25mΩ max. (initial value) |
| Operation speed | 0.5mm-50cm/s |
| Operating frequency | Mechanical: 120 operations/minute Electical: 30 operations/minute |
| Shock | Mechanical durable: 1, 000m/Sec2 (about 100G'S) Malfunction: 300m/Sec2 (about 30G'S) |
| Vibration | 10-55Hz,1.5mm double amplitude |
| Humidity | |
| Live | Mechanical: 10,000,000 operations above Electrical: 500,000 operations above |
| Dielectric strength | 1000VAC, 50/60 Hz for 1 minute between terminals of the same polarity 1500VAC, 50/60 Hz for 1 minute between live and non-energized metal parts 1500VAC, 50/60 Hz for 1 minute between each terminal and ground |
| Operating force | 100 g |
| Releasing Force | 40 g |
| Pre-travel | 30 mm |
| Tripping position | 22.5° |
| Over travel | 20 mm |
| Movement differential | 14° |
| Total travel | 50 mm |
Datablad
Stregkode:
5907723243118
Intern reference:
149196
Varekode:
LK\267
