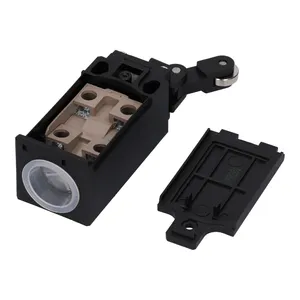

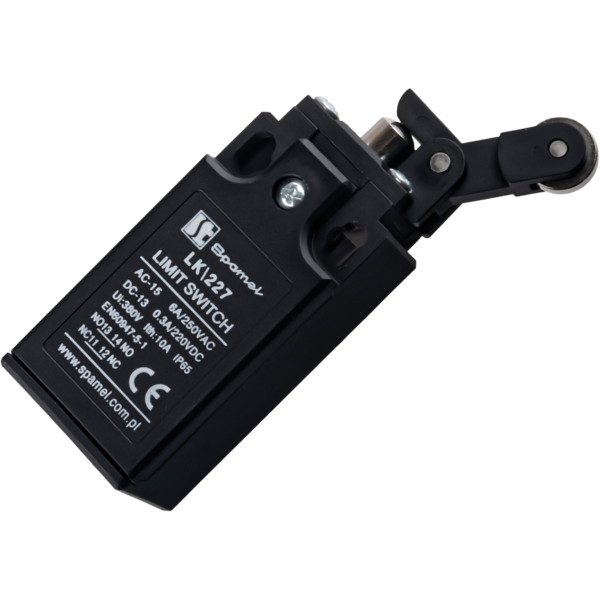

Endestopkontakt, med rulle
Varenummer:
149-192
Varekode:
LK\227
Vægt:
80 g
Lagerstatus:
Ikke på lager
Economical & plastic type
Stainless steel roller, punch and spring
Swing amplitude, extra large±95°
Standard size configuration M20x1.5 for conduit connector
| Ambient temperature | -10 ... +70°C (with no icing) |
| Degree of protection | IP65 |
| Insulation resistance | 100mΩ min. (below 500VDC) |
| Contact resistance | 25mΩ max. (initial value) |
| Operation speed | 0.5mm-50cm/s |
| Operating frequency | Mechanical: 120 operations/minute Electical: 30 operations/minute |
| Shock | Mechanical durable: 1, 000m/Sec2 (about 100G'S) Malfunction: 300m/Sec2 (about 30G'S) |
| Vibration | 10-55Hz,1.5mm double amplitude |
| Humidity | |
| Live | Mechanical: 10,000,000 operations above Electrical: 500,000 operations above |
| Dielectric strength | 1000VAC, 50/60 Hz for 1 minute between terminals of the same polarity 1500VAC, 50/60 Hz for 1 minute between live and non-energized metal parts 1500VAC, 50/60 Hz for 1 minute between each terminal and ground |
| Operating force | 700 g |
| Releasing Force | 200 g |
| Pre-travel | 1.8 mm |
| Tripping position | 2.0 mm |
| Over travel | 4.0 mm |
| Movement differential | 1.2 mm |
| Total travel | 5.8 mm |
Stregkode:
5907723243071
Intern reference:
149192
Varekode:
LK\227
