Arduino Stepper Motor 3CH Digital Multi Servo Tester Master Speed Controller
Varenummer:
148-858
Varekode:
OKY8000
Vægt:
10 g
Lagerstatus:
Ikke på lager

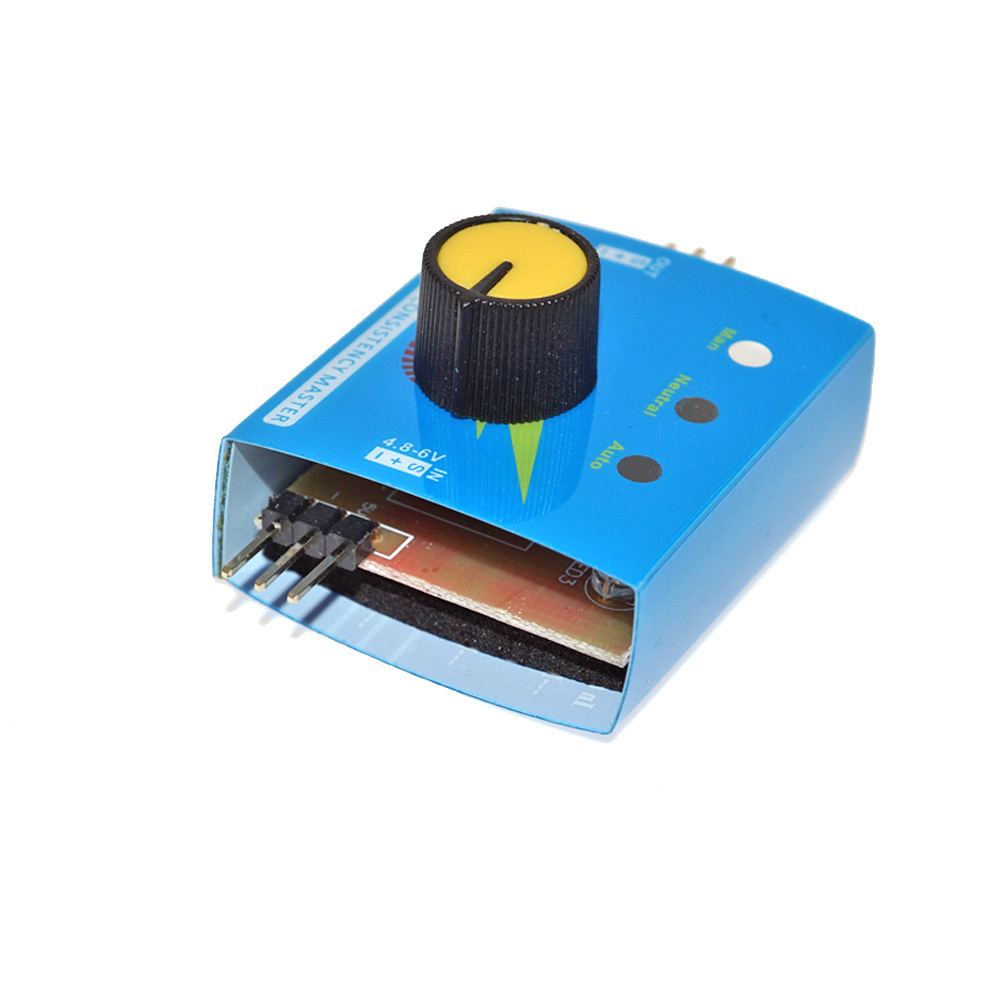

Arduino Stepper Motor 3CH Digital Multi Servo Tester Master Speed Controller
Product Description
- Voltage consumption: DC4.8-6V
- Color: Blue
- Item size: 1.89 x 1.65 x 0.67in
- Net weight: 0.25oz
- Package weight: 2.56oz
- CCPM Servo Consistency Master / Servo tester.
- There are 3 modes to check servos or ESC.
- It can connect 1-3 servos simultaneously.
- It can connect 3 servos of the CCPM helicopters and select servos.
- It can use the electric speed controller (ESC) as a signal generator.
- The device also can be used as a signal generator for electric speed controller (ESC), then you can test your motor system without using a transmitter and receiver.

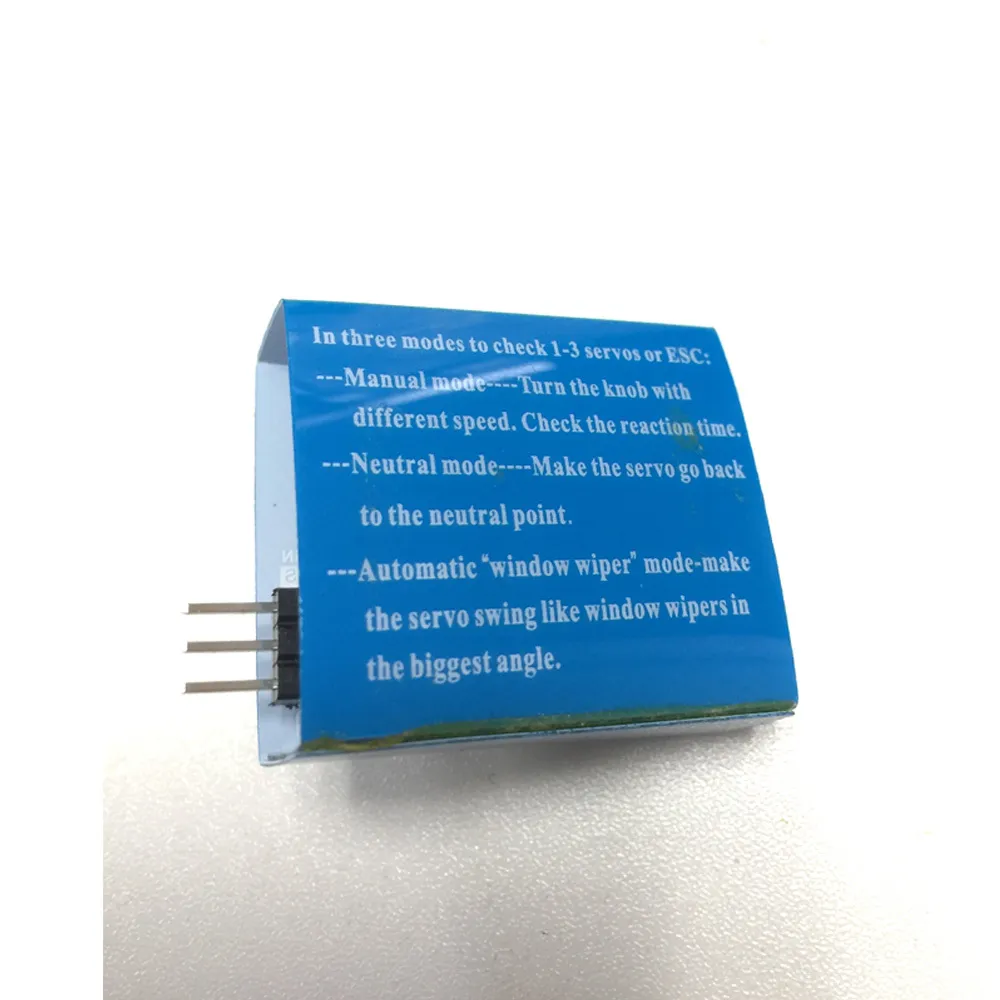

- There are 3 modes to check servos or ESC:
- Manual mode: turn the knob with different speed, check the reaction time.
- Neutral mode: make the servo go back to the neutral point.
- Automatic “window wiper” mode: make the servo swing like a window wipers in the biggest angle.
- It can connect 1-3 servos (servo must be under 55g) simultaneously and test such as 1-3 servos consistency and so on.
- You can also connect 1-3 ESC to test and compare their reaction time respectively.
- It can connect 3 servos of the CCPM helicopters and select servos.
- It can also connect the servo of airplanes install the steering-box and adjust planes by using such as the neutral mode and so on.
Datablad
Stregkode:
148858
Intern reference:
148858
Varekode:
OKY8000
