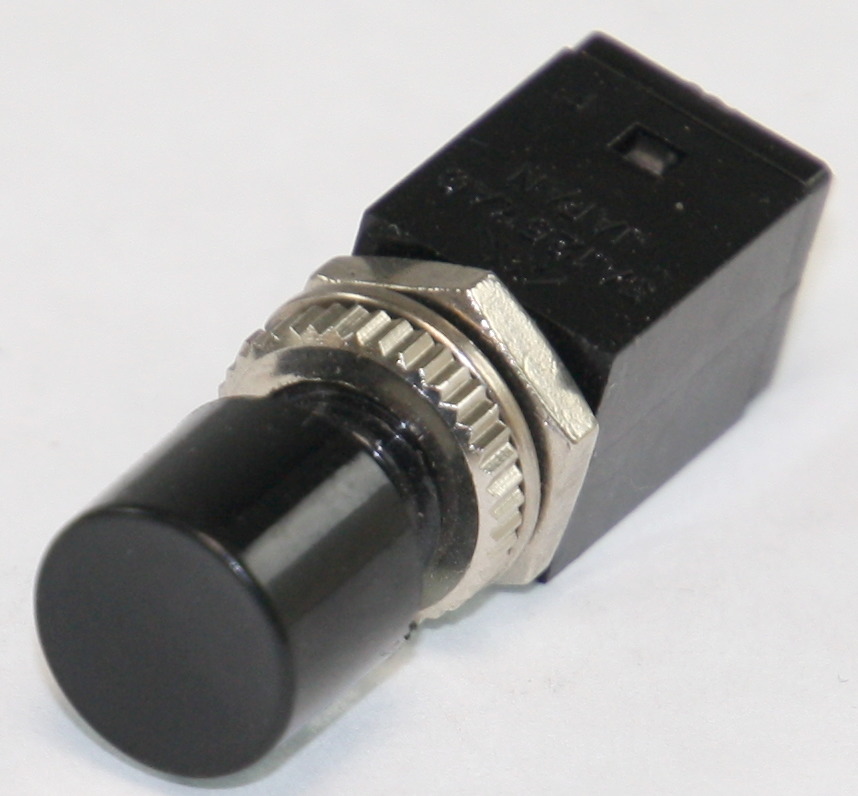

Trykafbryder 1-pol ON/ON Sort MIYAMA
Varenummer:
148-683
Varekode:
DS-409
Vægt:
10 g
Lagerstatus:
Lager: 394 stk.
Tryk 1 gang: ON - tryk igen: OFF.
| Manufactorer | MIYAMA |
|
|---|
| Casing/button colour | Black | |
|---|---|---|
| Functions | latch | |
| Type | 1-pin on/on | |
| Lighting type | None |
|
| Switch position | 1 x On/On |
|
| Contact type | 1 change-over |
|
| Connection | Solder pins |
|
| Contact resistance | ≤ 20m | |
| Switching voltage | 125V AC |
|
| Switching current (max.) | 3A |
|
| Dielectric strength | (1 min) 1000V AC | |
| Length | 10mm |
|
| Width | 10mm |
|
| Height | 36.9mm | |
| Recess diameter | 8.1mm |
|
| Content | 1pc(s) | |
| Insulation resistance | 500 V/DC - 100M | |
| Dim | (L x W x H) 10 x 10 x 36.9 mm | |
| RoHS-compliant | Yes | |
| Type | DS-409, BK | |
| Board thickness (max.) | 2mm | |
| Illumination | without | |
| Switching capacity | 3 A/125V AC | |
| Switching current | consumption 3A | |
| Type | DS-409 | |
| Connection | Soldered connection | |
| Product type | Pushbutton switch |
|
Stregkode:
148683
Intern reference:
148683
Varekode:
DS-409
