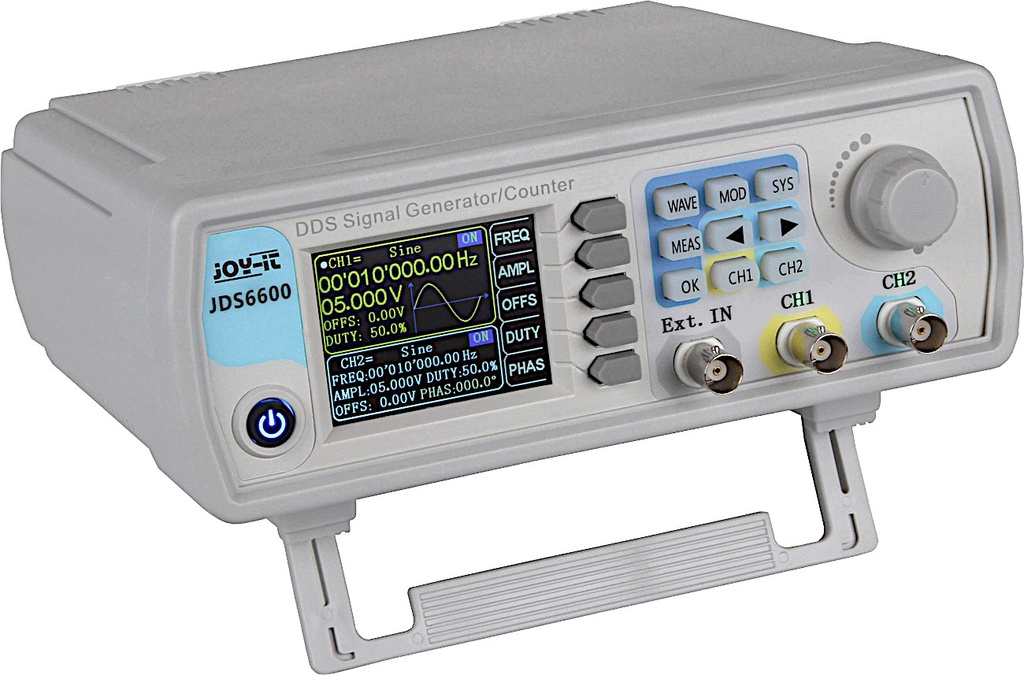

Signalgenerator 0-15MHz

• JT-JDS6600 Lite 2-kanals signalgenerator
• Genererer signaler op til 15 MHz
• Integreret 1 -kanals frekvensallokering
• Frekvensnøjagtighed på ± 20ppm
• Stabilitet på ± 1ppm/3h
• 2,4” TFT-farveskærm

JT-JDS6600 Lite er en forenklet version af JT-JDS6600

The JT-JDS6600 Lite is a 2 channel signal generator which produces signals up to 15 MHz.

The product JT-JDS6600 Lite is a simplified version of the JT-JDS6600. The two devices differ essentially in the frequency range of the signals that can be generated. The signal generator JT-JDS6600 can generate signals up to 60Mhz, whereas the simplified version can only generate signals up to 15Mhz.

It is in different areas of measuremet technology useable because of its different curve shapes like sine, square, triangle, pulse, half-wave and others.

Additionally, it is an 1 channel frequency allocation integrated. With its frequency accuracy of ±20ppm and its stability of ±1ppm/3h, it offers a perfect signal quality and flexibility.

Through its 2,4“ TFT color display it has the operator friendliness guaranteed which reveals most diverse areas of application.

Channels

2 Channel generator, 1 Channel frequency meter

Frequency-Range (Sine)

0 - 15MHz

Frequency-Range (Square, Triangle)

0 - 15MHz

Frequency-Range (TTL, pulse)

0 - 6MHz

Measuring range Frequency counter

0 - 100 MHz

Frequency Accuaracy

+-20ppm

Frequency Stability

+-1ppm/3h

Sampling rate

266 MSa/s

Display Mode

TFT LCD Color display

Vertical shaft resolution

14 bits

Amplitude range

10 MHz: 0-10 Vpp

Amplitude resolution

1 mV

Amplitude stability

± 5%/5h

Amplitude flatness

10 MHz: ± 10%

Impedance of output

50Ω ±10%

Display Size

2,4“

Dimensions

194 x 178 x 69 mm

Weight

768 g

Items Shipped

Signalgenerator, BNC Signal terminals, power supply

EAN

4250236817064

Article No.

JT-JDS6600-Lite
