Relay: installation; bistable; NC + NO; Ucoil: 24VAC; 17.6x90x65mm
Varenummer:
146-825
Varekode:
30.070.277
Vægt:
140 g
Lagerstatus:
Lager: 4 stk.

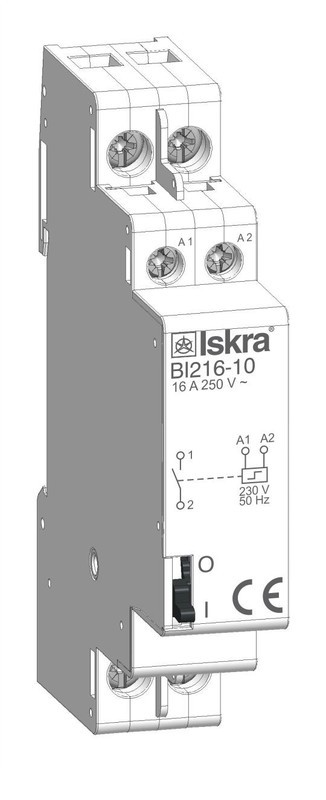

Bistable switch BI216-11/24V50Hz
| Number of poles | 2 |
| Coil Voltage | 24 VAC |
| Coil type | AC |
| Thermal current Ith | 16 A |
| Rated operational current Ie for AC-1, AC-7a and AC-21 | 16 A 440V |
| Operational power Pe for AC-1, AC-7a and AC-21 | 3,5 kW |
| Mechanical endurance (op.c.) | 1000000 |
| Electrical endurance for AC-1, AC-7a, AC-21 (op.c.) | 100000 |
| Noise level (operations) | 0 dB (coil voltage is switched off) |
| Width | 17,6 mm |
| Height | 90 mm |
| Depth | 60 mm |
| Standards | IEC/EN 60669-2-2 |
| Approvals | CE |
