Relay: installation; bistable; SPDT; Mounting: DIN; 16A; -25÷50°C

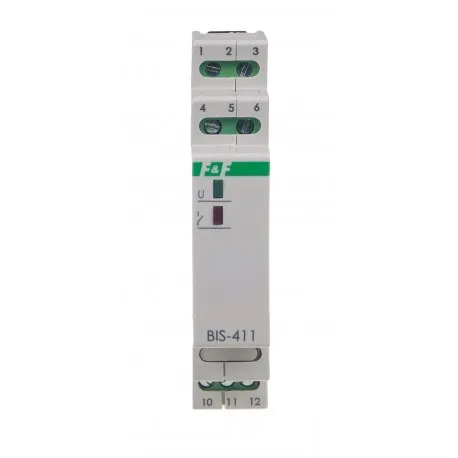

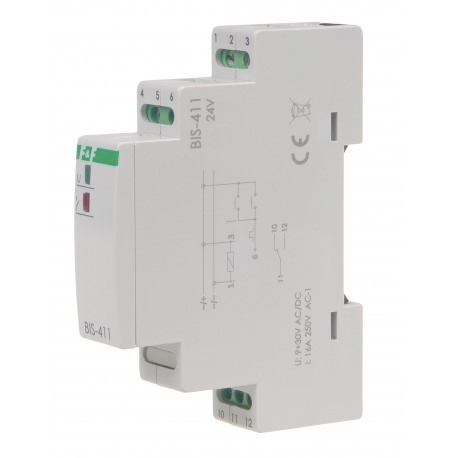

Electronic bistable impulse relay BIS-411 24 V
BIS-411-24V, 5908312594055
Product description
Electronic bistable impulse relay allows switching of lighting or other equipment from several different points of using the control buttons are connected in parallel.
Power supply 24 V AC. Maximum load 16 A. On TH-35 mm rail.
Functioning
The receiver is actuated by means of a current pulse triggered by pushing any bell push connected to the relay. The receiver is deactivated by another pulse or after a preset time.
The relay does not “memorize” the position of the relay contact, i.e. in case of supply voltage decay and the subsequent return of supply voltage, the relay contact will be set in the off position. Such a solution prevents the automatic actuation of the receivers controlled that might occur without proper supervision after a long-lasting decay of supply voltage.
Attention!
The BIS-411 and BIS-411i (230V versions) compatible with bell pushes equipped with fluorescent lamps.
Attention!
The BIS-411 and BIS-411i (24V versions) not compatible with bell pushes equipped with fluorescent lamps.
Power table
The above data are indicative and will depend to a large extent on the design of a specific receiver (especially for LED bulbs, energy saving lamps, electronic transformers and pulse power supplies), switching frequency and working conditions
| Power supply voltage | 9÷30 V AC/DC |
| Local control | YES |
| Maximum AC-1 load current | 16 A |
| The executive element | relay |
| Contact configuration | 1 × NO/NC |
| Separation of the contact | YES |
| Resistance to shock currents | NO |
| Number of channels | 1 |
| functionality | ON/OFF |
| Delay of operation | 0,1 ÷ 0,2 s |
| Control pulse current | less than 1 mA |
| Cooperation with illuminated buttons | NO |
| Status memory after power failure | NO |
| Activate on time | NO |
| Dedicated central control inputs | NO |
| Radio control | NO |
| Terminal | pluggable terminal blocks 2,5 mm² |
| Tightening torque | 0,4 Nm |
| Power consumption | 0,7 W |
| Working temperature | -25 ÷ 50 °C |
| Dimensions | 1 module (18 mm) |
| Assembly | on rail 35 mm |
| Ingress Protection Marking | IP20 |
.
Stregkode:
5908312594055
Intern reference:
146250
Varekode:
BIS-411 24V AC/DC
