Relay: installation; bistable; NO; Ucoil: 230VAC; 17.6x90x65mm
Varenummer:
146-249
Varekode:
BI216-10
Vægt:
120 g
Lagerstatus:
Ikke på lager

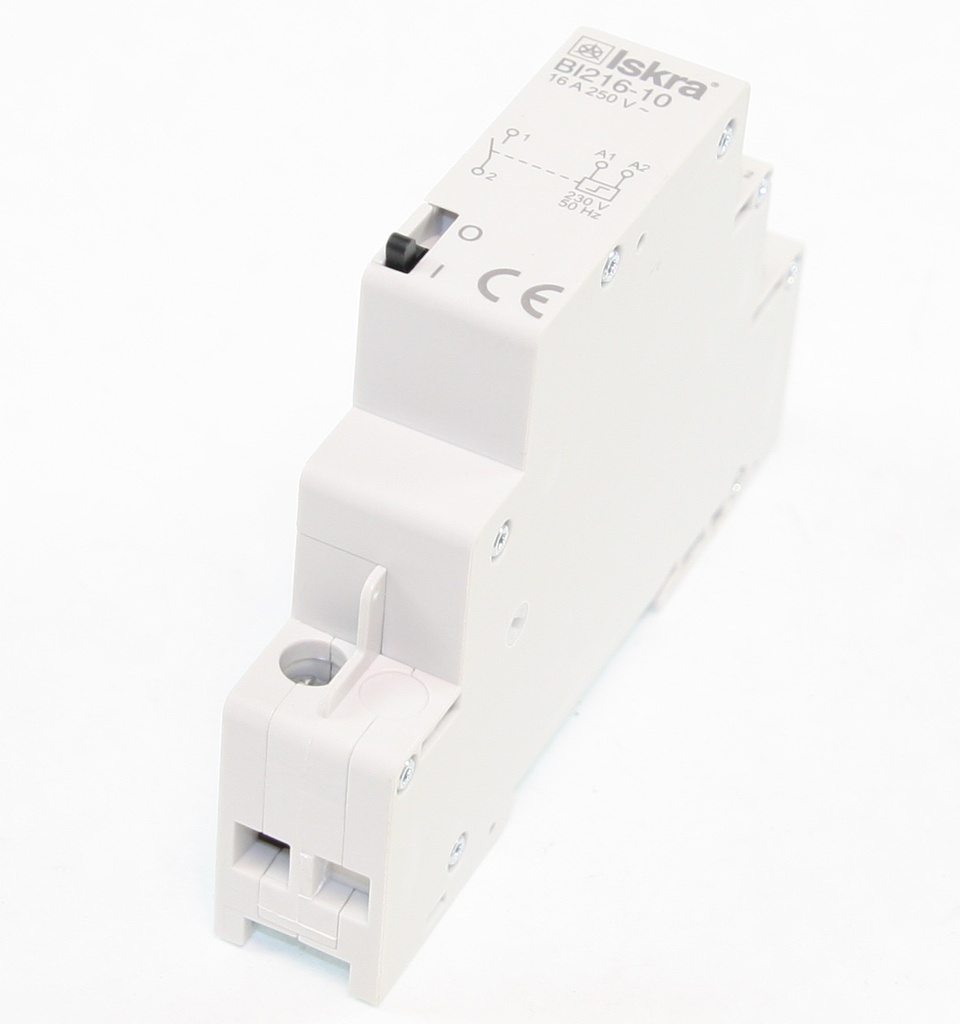

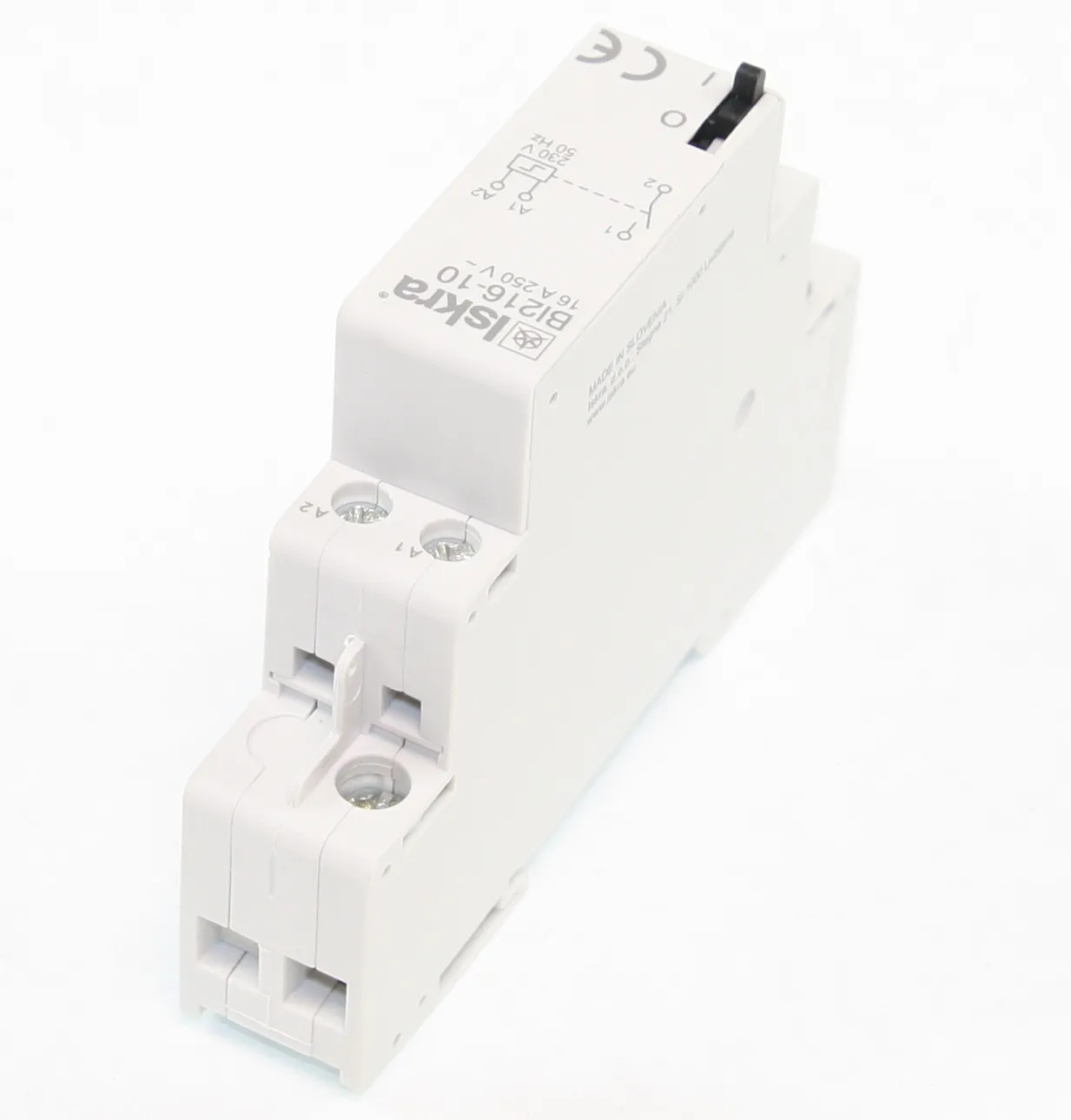

Bistable switch BI216-10/230V50Hz
| Number of poles | 2 |
| Coil Voltage | 230 V |
| Coil type | AC |
| Thermal current Ith | 16 A |
| Rated operational current Ie for AC-1, AC-7a and AC-21 | 16 A |
| Operational power Pe for AC-1, AC-7a and AC-21 (Single phase 230 V) | 3,5 kW |
| Mechanical endurance (op.c.) | 1000000 |
| Electrical endurance for AC-1, AC-7a, AC-21 (op.c.) | 100000 |
| Noise level (operations) | 0 dB (coil voltage is switched off) |
| Width | 17,6 mm |
| Height | 90 mm |
| Depth | 60 mm |
| Standards | IEC/EN 60669-2-2 |
| Approvals | CE |
Stregkode:
146249
Intern reference:
146249
Varekode:
BI216-10
