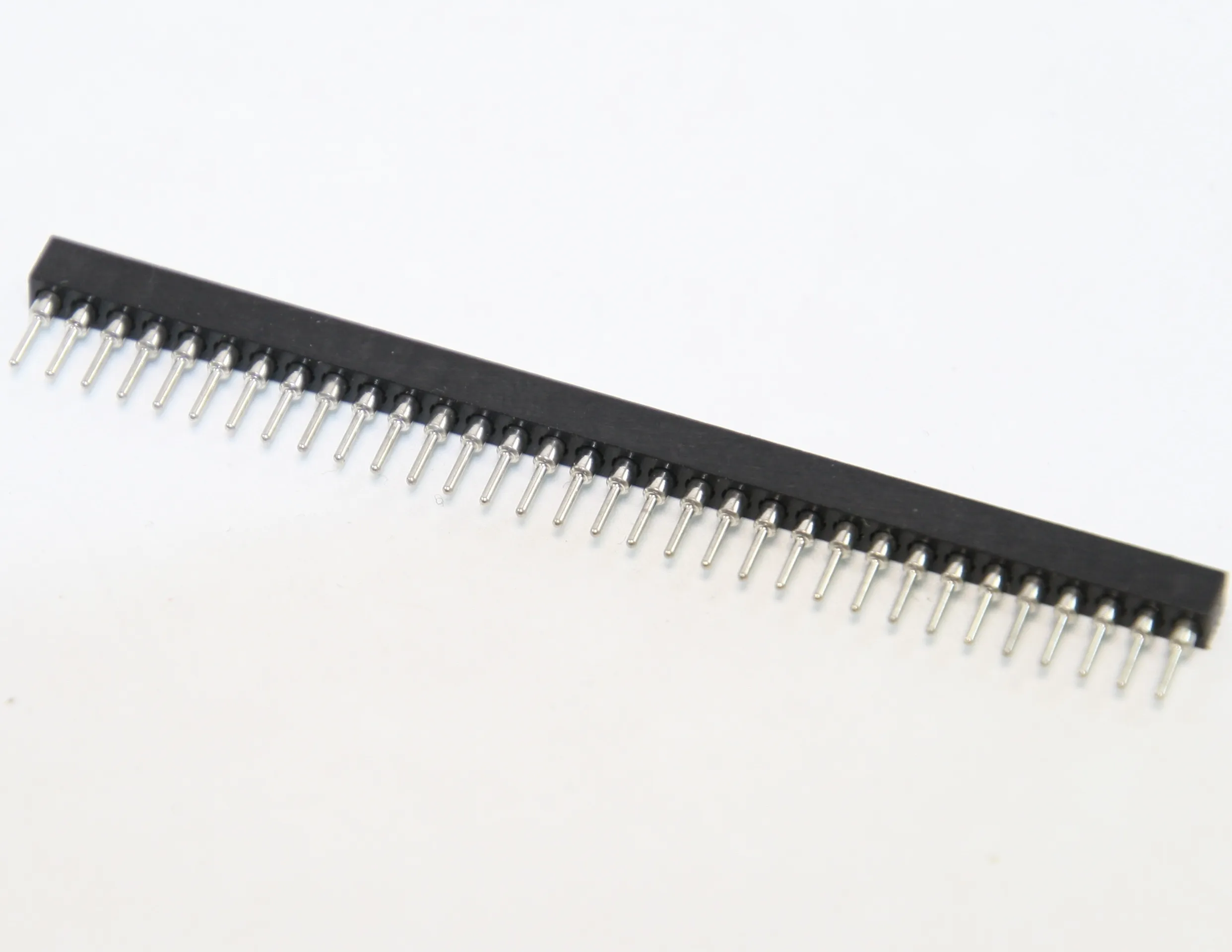

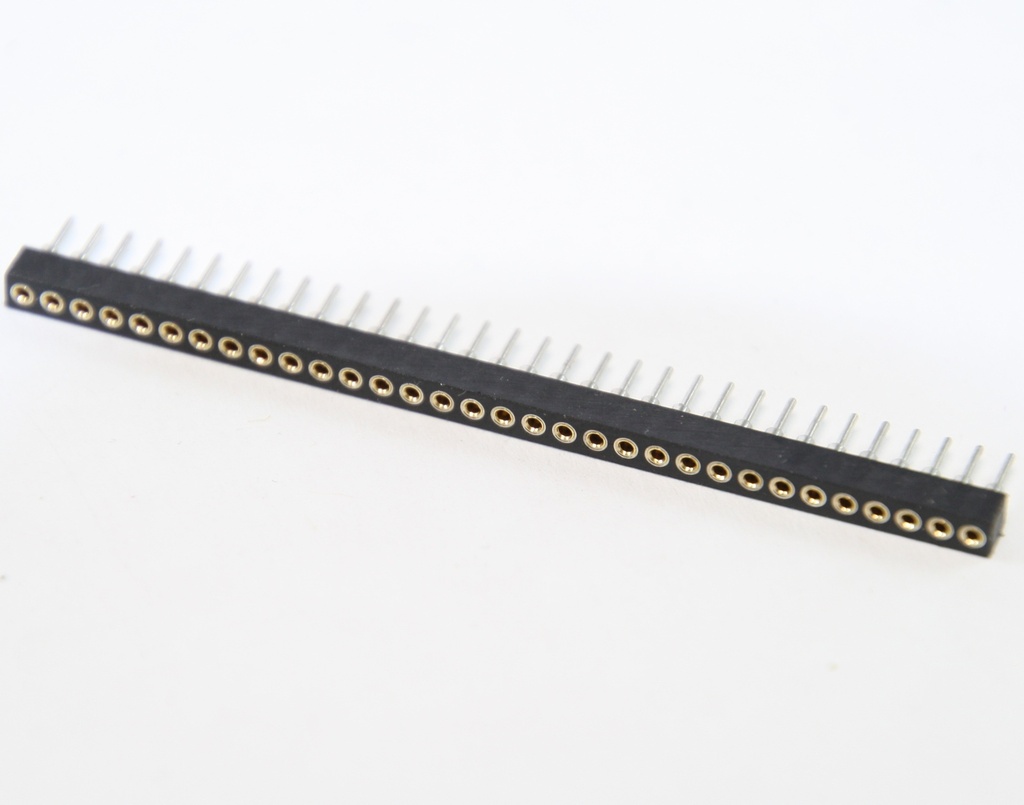

Female Header 1R 1x32P RM 1,778
Varenummer:
145-183
Varekode:
MS 32 STG
Vægt:
0 g
Lagerstatus:
Lager: 315 stk.
OBS: Benafstand 1,778mm
Socket connectors
With reduced grid spacing 1.778 and 1.8 mm
Solder tail
Socket connectors
With reduced grid spacing 1.778 and 1.8 mm
Solder tail
Technical specs.:
| Insulator: | 317-87-132-41 |
|---|---|
| Flammability: | UL 94V-O |
| Sleeve: | Brass CuZn36Pb3 (C36000) |
| Contact: | Clip (4 finger): Beryllium copper (C17200) |
| Mating pin Ø: | 0.40 to 0.56 mm 32 Pins Female |
| Insertion force: | 2 N typ. |
| Withdrawal force: | 1 N typ. (polished steel gauge Ø 0.43 mm) |
| Mechanical life: | Min. 500 cycles |
| Rated current: | 1 A |
| Contact resistance: | Max. 10 mΩ |
| Dielectric strength: | Min. 1000 V RMS |
Datablad
Stregkode:
145183
Intern reference:
145183
Varekode:
MS 32 STG
