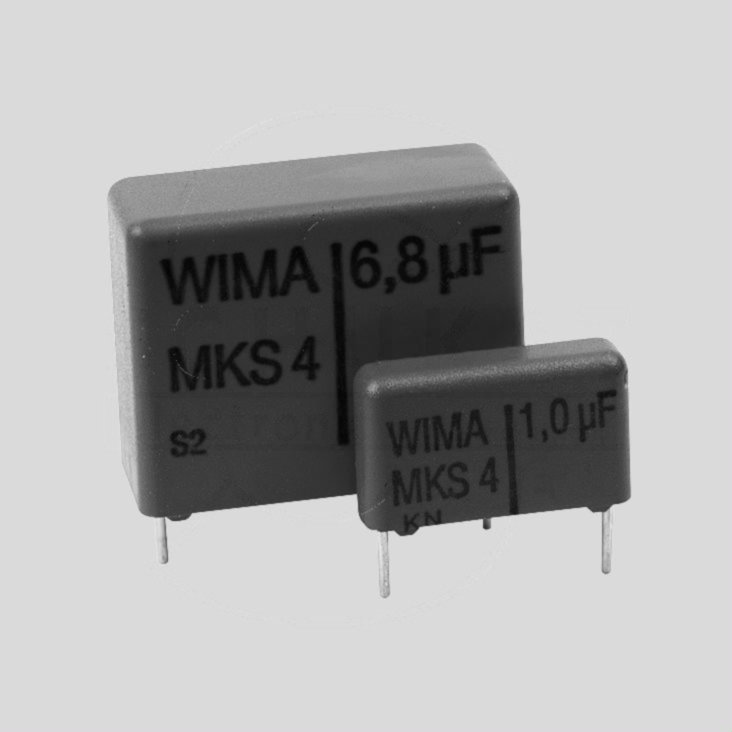

MKT Capacitor 100nF 250V 10% P10
Varenummer:
144-995
Varekode:
MKS4N100K250-10-COPY
Vægt:
0 g
Lagerstatus:
Ikke på lager
Rated Voltage:
250V DC
Tolerance: 10%
Pitch: 10,16 mm
|
Features |
| • Dielectric: polyethylene-terephthalate (PET) film • Vacuum-deposited capacitor electrodes • Encapsulation: solvent-resistant, flame-retardent plastic case with epoxy resin seal, UL94V-0 • Terminations: tinned wire • High volume/capacitance ratio and reduced base • Self-healing |
 |
|
Typical Applications |
| For general DC-applications e.g. By-pass, Blocking, Coupling and decoupling, Timing. |
|
|
Technical Specifications |
|
|||||||||||||||||||
| Rated Voltages (UN): | 250V DC | Test Voltage (2s): | 1,6xUN | Capacitance tolerances: | ±10% | Operating temperature range: | -55...+100°C | Climatic test category IEC: | 55/100/56 | Insulation resistance | C£330nF: | ³30000MW | C>330nF: | ³10000s | Relliability (failure rate) (40°C, 0,5 x UN): | 2,0 fit1) | |||
| 1)
1fit = 1x10 -9 Failure Components/Hour |
|||||||||||||||||||
|
|||||||||||||||||||

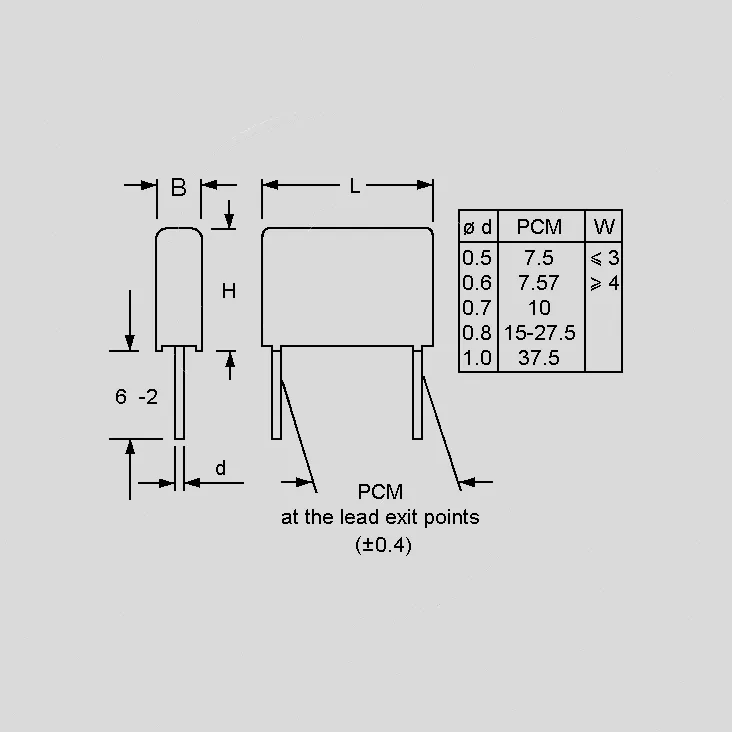

| Part Nr. | CN | Ueff | B | H | L | P | MKS4_ | [nF/µF] | [V AC] | [mm] | [mm] | [mm] | [mm] | N010K250-7 | 10 | 160 | 3,0 | 8,5 | 10,0 | 7,5 | N010K250-10 | 10 | 160 | 4,0 | 9,0 | 13,0 | 10,0 | N015K250-7 | 15 | 160 | 3,0 | 8,5 | 10,0 | 7,5 | N015K250-10 | 15 | 160 | 4,0 | 9,0 | 13,0 | 10,0 | N022K250-7 | 22 | 160 | 3,0 | 8,5 | 10,0 | 7,5 | N022K250-10 | 22 | 160 | 4,0 | 9,0 | 13,0 | 10,0 | N033K250-7 | 33 | 160 | 3,0 | 8,5 | 10,0 | 7,5 | N033K250-10 | 33 | 160 | 4,0 | 9,0 | 13,0 | 10,0 | N047K250-7 | 47 | 160 | 3,0 | 8,5 | 10,0 | 7,5 | N047K250-10 | 47 | 160 | 4,0 | 9,0 | 13,0 | 10,0 | N068K250-7 | 68 | 160 | 4,0 | 6,0 | 10,0 | 7,5 | N100K250-7 | 100 | 160 | 4,0 | 9,0 | 10,0 | 7,5 | N100K250-10 | 100 | 160 | 4,0 | 9,0 | 13,0 | 10,0 | N150K250-7 | 150 | 160 | 5,0 | 10,5 | 10,3 | 7,5 | N150K250-10 | 150 | 160 | 4,0 | 9,0 | 13,0 | 10,0 | N220K250-7 | 220 | 160 | 5,0 | 10,5 | 10,3 | 7,5 | N220K250-10 | 220 | 160 | 5,0 | 11,0 | 13,0 | 10,0 | N330K250-7 | 330 | 160 | 5,7 | 12,5 | 10,3 | 7,5 | N470K250-15 | 470 | 160 | 6,0 | 12,5 | 18,0 | 15,0 | N680K250-15 | 680 | 160 | 7,0 | 14,0 | 18,0 | 15,0 | U1.0K250-15 | 1,0 | 160 | 8,0 | 15,0 | 18,0 | 15,0 | U1.5K250-22 | 1,5 | 160 | 7,0 | 16,5 | 26,5 | 22,5 | U2.2K250-22 | 2,2 | 160 | 10,5 | 19,0 | 26,5 | 22,5 | U4.7K250-27 | 4,7 | 160 | 11,0 | 21,0 | 31,5 | 27,5 | U6.8K250-27 | 6,8 | 160 | 13,0 | 24,0 | 31,5 | 27,5 | U010K250-27 | 10 | 160 | 17,0 | 29,0 | 31,5 | 27,5 | |||||||
| CN = Rated Capacitance, Ueff = RMS Voltage | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pulse Rise Time |
| CN | F250V | [V/µs] | 10nF...22nF: | 35/350 | 33nF...68nF: | 20/200 | 100nF...220nF: | 15/150 | 330nF...680nF | 10/100 | 1,0µF...6,8µF | 6/60 | 10µF: | 3/30 | ||||||||||||
| F250V = Pulse Rise Time for 250V | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
|
Dissipation Factor Tand (20°C) |
|
|||||||||||||||||||||||
| Measured at | 1kHz | 10kHz | 100kHz | C£100nF | £8x10-3 | £15x10-3 | £30x10-3 | 100nFC1µF | £8x10-3 | £15x10-3 | - | C>1µF | £10x10-3 | - | - | ||||||||
|
|||||||||||||||||||||||
| Labelling |
| Marking: colour red, marking black Epoxy resin seal: colour red |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 100 pieces 2,2µF...10µF: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.wima.de |
|
